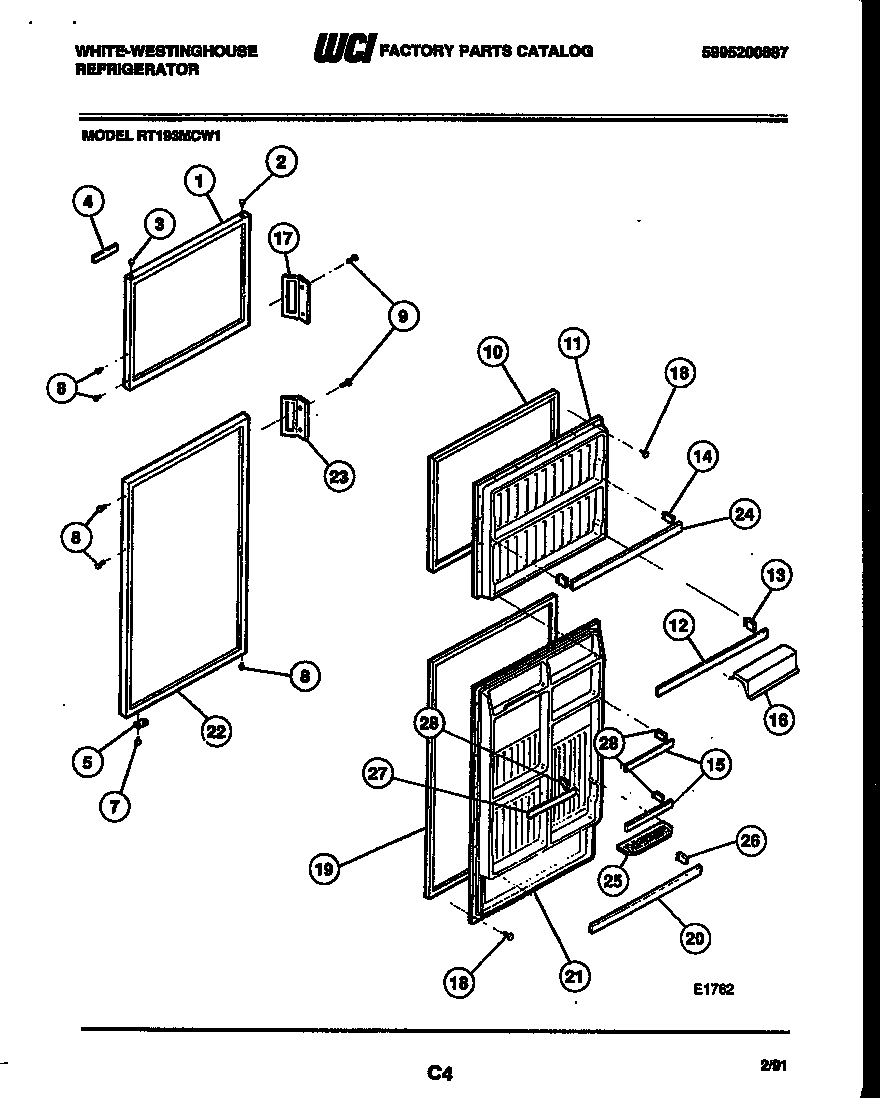

RT193MCD1 02 – DOOR PARTS

Products

PositionProduct
*41884INSULATION-BULK (NON-ILLUSTRATED)
*41884WCI 3206307
*41884WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
1PANEL-FRZR DOOR, ALMOND
1ALABEL – FAN COVER (NON-ILLUSTRATED)
2PLUG-BUTTON, ALMOND, HINGE BRG HOLE
3BEARING-HINGE
4WCI 3206159
5DOOR STOP, REFR SECTION
5AWCI 5308000255
8PLUG-BUTTON, ALMOND, HANDLE/DR STOP
9WCI 5308011745
10WCI 5303018791
11PANEL, INNER DOOR, FRZR
13ASUPPORT-DOOR RACK, EXTENDS 1.06“, LH
13SUPPORT-DOOR RACK, EXTENDS 1.06“, RH
15RACK-DOOR, SHORT, NARROW, (2)
16DOOR-DAIRY (INCLUDES TRIM)
17HANDLE-DOOR
185304455651 Frigidaire Refrigerator Screw
19WCI 5303018792
20RACK-DOOR, FULL-WIDTH, WIDE
21PANEL, INNER DOOR, REFR
22PANEL-REFR DOOR, ALMOND
23HANDLE-DOOR
24RACK-DOOR, FULL-WIDTH, NARROW
25WCI 3206189
26ASUPPORT-DOOR RACK, LH
26SUPPORT-DOOR RACK, RH
27RACK-DOOR, MEDIUM-WIDTH, NARROW
28A3206166 Frigidaire Refrigerator Freezer Door Shelf Retainer Bar Endcap Rack Support
283206165 Frigidaire Bar Endcap Right Hand
