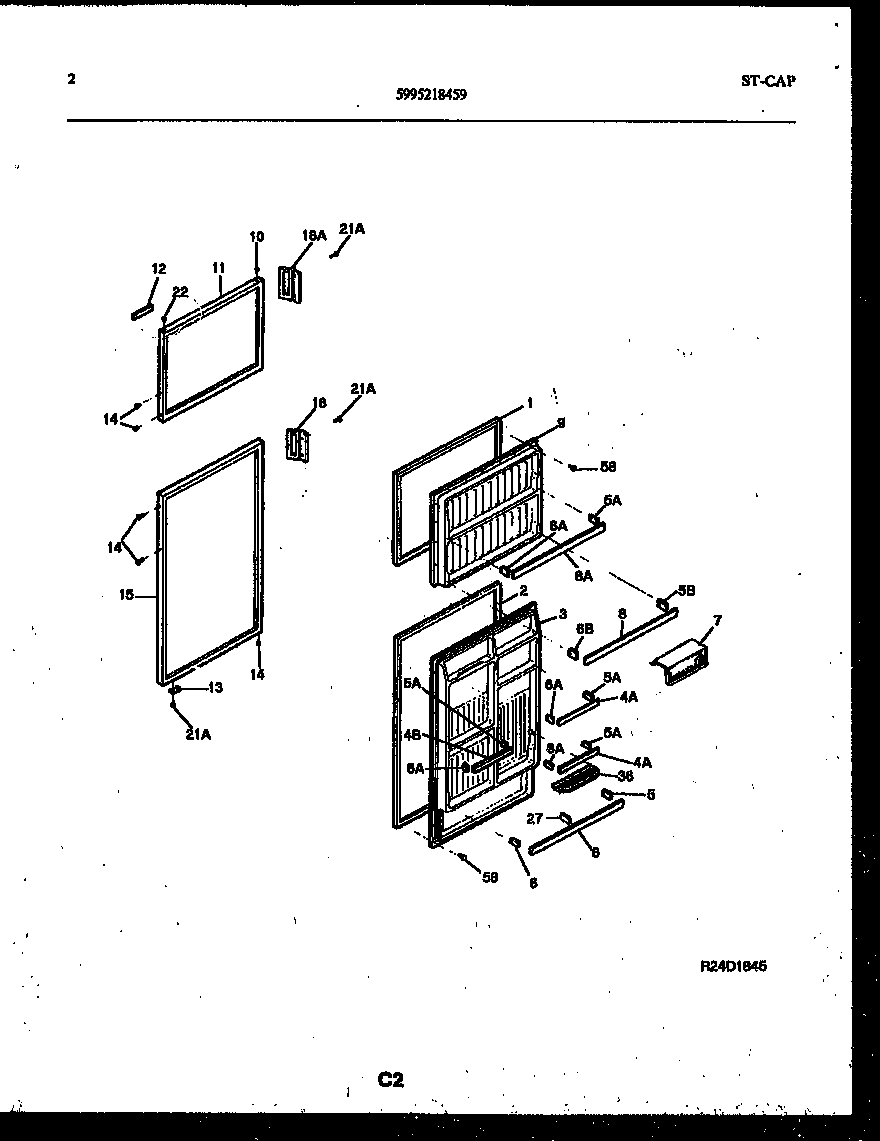

RT193MCD2 02 – DOOR PARTS

Products

Position	Product
*60008	INSULATION-BULK (NON-ILLUSTRATED)
1	WCI 5303018791
2	WCI 5303018792
3	PANEL, INNER DOOR, REFR
4B	RACK-DOOR, MEDIUM-WIDTH, NARROW
4A	RACK-DOOR, SHORT, NARROW, (2)
5B	SUPPORT-DOOR RACK, EXTENDS 1.06“, RH
5A	3206165 Frigidaire Bar Endcap Right Hand
5	SUPPORT-DOOR RACK, RH
6A	3206166 Frigidaire Refrigerator Freezer Door Shelf Retainer Bar Endcap Rack Support
6B	SUPPORT-DOOR RACK, EXTENDS 1.06“, LH
6	SUPPORT-DOOR RACK, LH
7	DOOR-DAIRY (INCLUDES TRIM)
8	RACK-DOOR, FULL-WIDTH, WIDE
8A	RACK-DOOR, FULL-WIDTH, NARROW
9	PANEL, INNER DOOR, FRZR
10	PLUG-BUTTON, ALMOND, HINGE BRG HOLE
11	PANEL-FRZR DOOR, ALMOND
12	WCI 3206159
13A	WCI 5308000255
13	DOOR STOP, REFR SECTION
14	PLUG-BUTTON, ALMOND, HANDLE/DR STOP
15	PANEL-REFR DOOR, ALMOND
18	HANDLE-DOOR
18A	HANDLE-DOOR
21A	WCI 5308011745
22	BEARING-HINGE
27	WCI 3206307
36	WCI 3206189
58	5304455651 Frigidaire Refrigerator Screw
