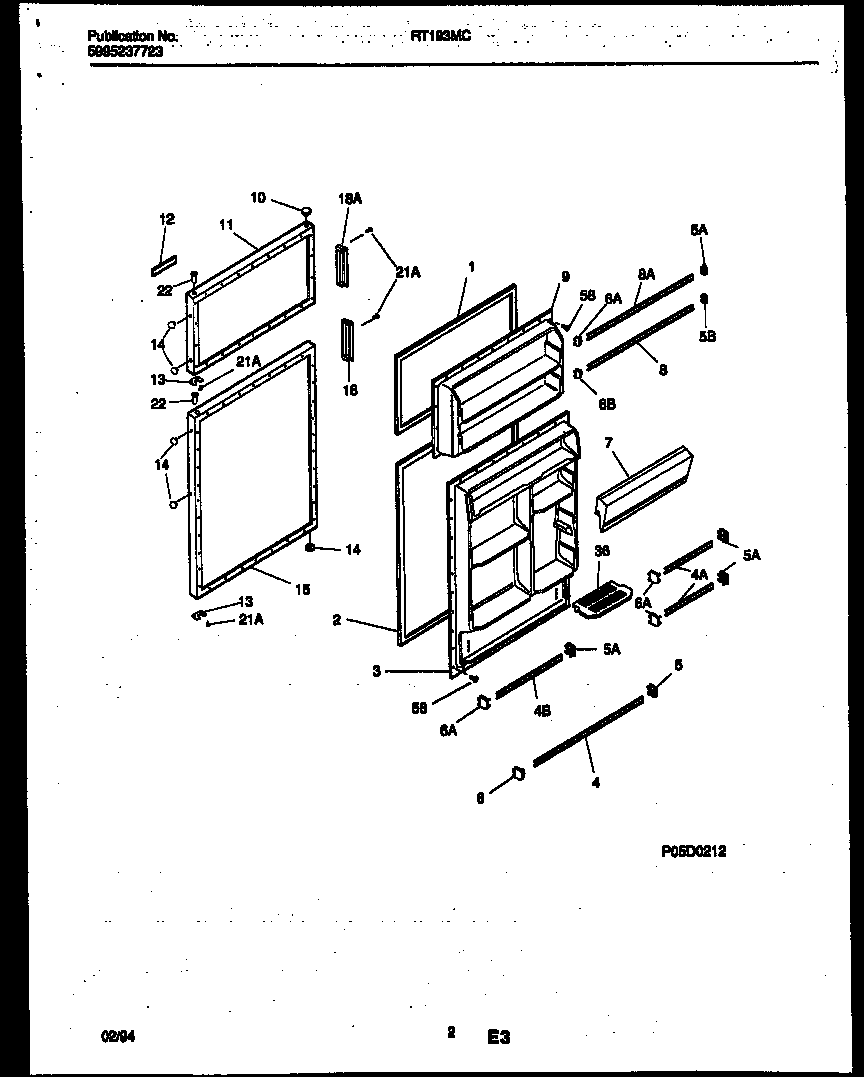

RT193MCD3 02 – DOOR PARTS

RT193MCD3 02 – DOOR PARTS

Written by

in

RT193MCD3 02 – DOOR PARTS

Products

PositionProduct
*89951INSULATION
1WCI 5303018791
2WCI 5303018792
3PANEL, INNER DOOR, REFR
4BRACK-DOOR, MEDIUM-WIDTH, NARROW
4ARACK-DOOR, SHORT, NARROW, (2)
4RACK-DOOR, FULL-WIDTH, WIDE
5BSUPPORT-DOOR RACK, EXTENDS 1.06“, RH
5A3206165 Frigidaire Bar Endcap Right Hand
5WCI 3206150
6WCI 3206151
6A3206166 Frigidaire Refrigerator Freezer Door Shelf Retainer Bar Endcap Rack Support
6BSUPPORT-DOOR RACK, EXTENDS 1.06“, LH
7DOOR-DAIRY (INCLUDES TRIM)
8RACK-DOOR, FULL-WIDTH, WIDE
8ARACK-DOOR, FULL-WIDTH, NARROW
9PANEL, INNER DOOR, FRZR
10PLUG-BUTTON, ALMOND, HINGE BRG HOLE
11PANEL-FRZR DOOR, ALMOND
12WCI 3206159
13DOOR STOP, REFR SECTION
13WCI 5308000255
14PLUG-BUTTON, ALMOND, HANDLE/DR STOP
15PANEL-REFR DOOR, ALMOND
18HANDLE-DOOR
18AHANDLE-DOOR
21AWCI 5308011745
22BEARING-HINGE
36WCI 3206189
585304455651 Frigidaire Refrigerator Screw
