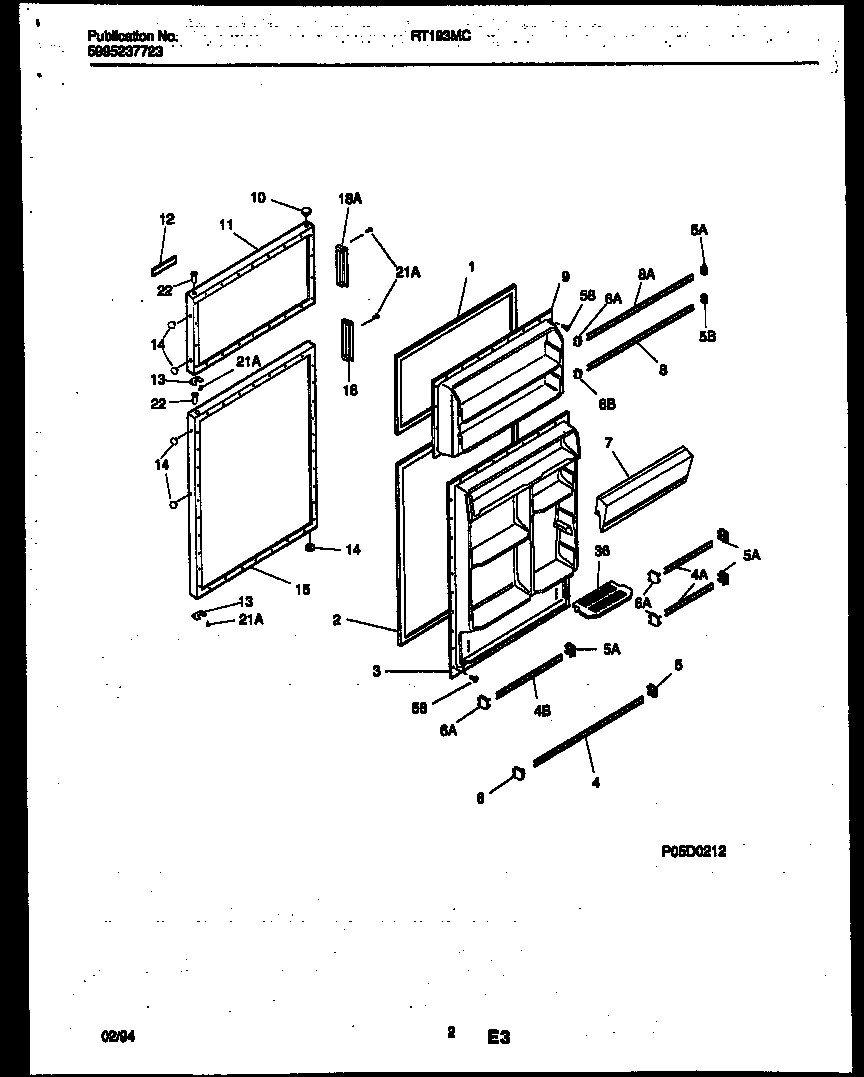

RT193MCD4 02 – DOOR PARTSadmin2025-04-26T10:19:03+00:00RT193MCD4 02 – DOOR PARTS
Products
| Position | Product |
|---|
| *89951 | INSULATION |
| 1 | WCI 5303018791 |
| 2 | WCI 5303018792 |
| 3 | PANEL, INNER DOOR, REFR |
| 4B | RACK-DOOR, MEDIUM-WIDTH, NARROW |
| 4A | RACK-DOOR, SHORT, NARROW, (2) |
| 4 | WCI 5303206518 |
| 5 | WCI 3206150 |
| 5A | 3206165 Frigidaire Bar Endcap Right Hand |
| 5B | SUPPORT-DOOR RACK, EXTENDS 1.06``, RH |
| 6 | WCI 3206151 |
| 6A | 3206166 Frigidaire Refrigerator Freezer Door Shelf Retainer Bar Endcap Rack Support |
| 6B | SUPPORT-DOOR RACK, EXTENDS 1.06``, LH |
| 7 | DOOR-DAIRY (INCLUDES TRIM) |
| 8 | RACK-DOOR, FULL-WIDTH, WIDE |
| 8A | RACK-DOOR, FULL-WIDTH, NARROW |
| 9 | PANEL, INNER DOOR, FRZR |
| 10 | PLUG-BUTTON, ALMOND, HINGE BRG HOLE |
| 11 | PANEL-FRZR DOOR, ALMOND |
| 12 | WCI 3206159 |
| 13 | DOOR STOP, REFR SECTION |
| 13 | WCI 5308000255 |
| 14 | PLUG-BUTTON, ALMOND, HANDLE/DR STOP |
| 15 | PANEL-REFR DOOR, ALMOND |
| 18 | HANDLE-DOOR |
| 18A | HANDLE-DOOR |
| 21A | WCI 5308011745 |
| 22 | BEARING-HINGE |
| 36 | WCI 3206189 |
| 58 | 5304455651 Frigidaire Refrigerator Screw |
