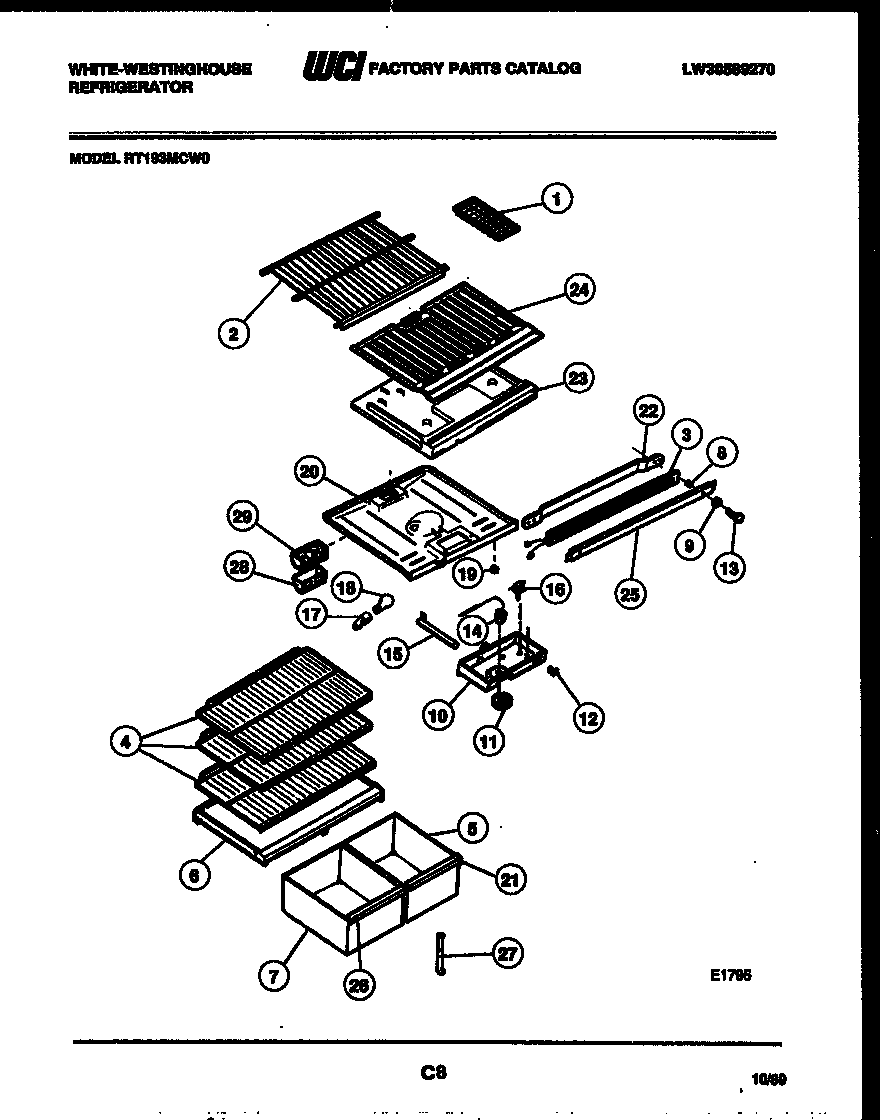

RT193MCV0 04 – SHELVES AND SUPPORTS

Products

Position	Product
1	215667501 Frigidaire Refrigerator Ice Tray Primary
2B	5304509705 Frigidaire Refrigerator Grommet
2C	5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
2A	END CAP-SHELF,PROTECTOR
2	WCI G184193-02
3	WCI 3018916
4	SHELF-REFRIGERATOR (3)
5	PAN-CRISPER-RH
6	WCI 08010006
7	PAN - CRISPER - LH
8	SPACER (NON-ILLUSTRATED)
9	WASHER (2)
10	WCI 3206130
10A	5304455650 Frigidaire Refrigerator Screw
11	KNOB-TEMP CONTROL
12	WCI 3206129
13	WCI 08012258
14	CONTROL-TEMPERATURE
14A	WCI G107080
15	WCI 3018891
16A	5304455649 Frigidaire Refrigerator Screw
16	215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
17	218906802 Frigidaire Light Lamp Socket
18	316538904 Frigidaire Oven Lamp Light
19	5309918806 Frigidaire Refrigerator Light Switch Door
20	TOP - REFRIGERATOR
20A	SCREW (5)
21	TRIM-CRISPER PAN-RH
22	WCI 08010008
23	DIVIDER-FOAM
23A	WCI 3018900
23B	3205266 Frigidaire Refrigerator Edge Protector
24	BOTTOM PANEL-FREEZER
25	MULLION-AVOC
26	TRIM-CRISPER PAN-LH
27	SUPPORT-ADJ CRISPER COVER
28	WCI G162178
29	WCI 3204206
