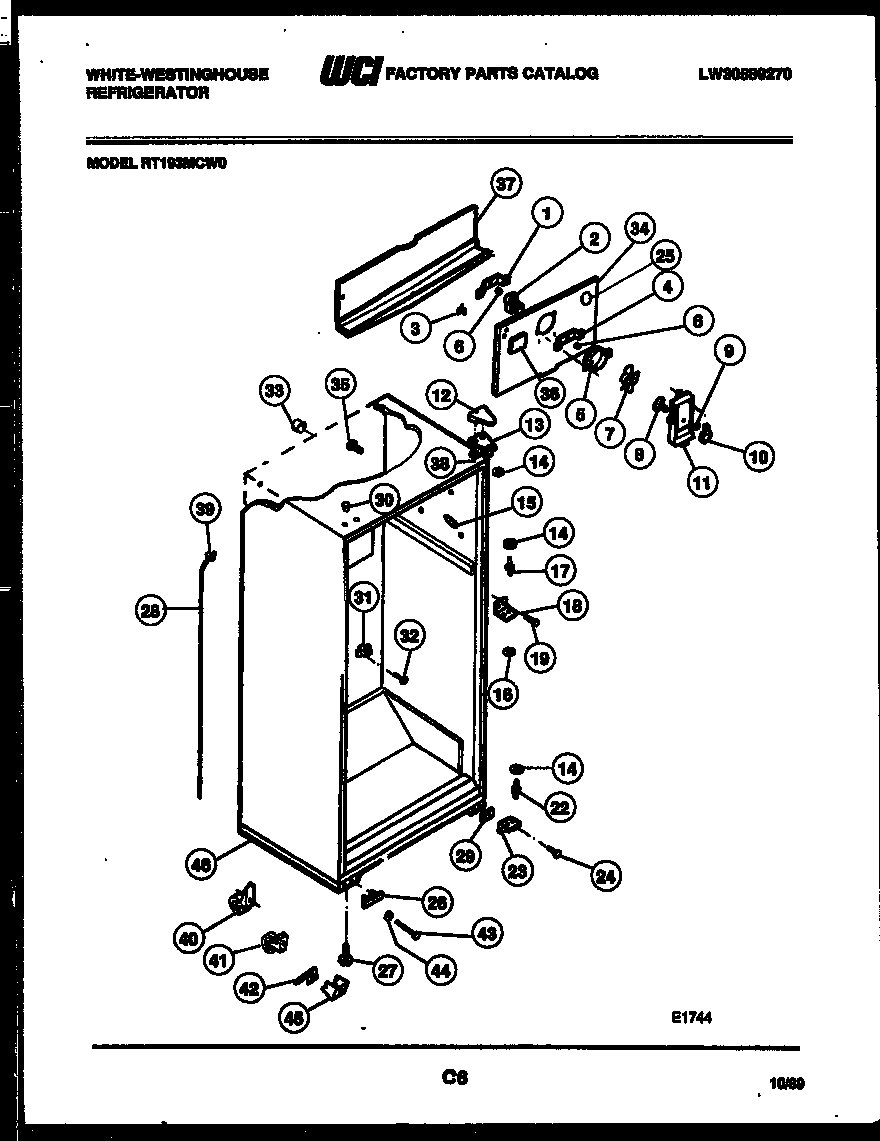

RT193MCW0 03 – CABINET PARTS

Products

Position	Product
*23499	WCI G174733
*23499	TAPPING PLATE (2)
*23499	BUTTON, LINER
*23499	WCI G174734
2	WCI 3205119
2	5300158289 Frigidaire Evaporator Fan Motor
3	WCI G164571
4	WCI 3205118
5A	218843801 Frigidaire Refrigerator Screw
5	RING, FAN ORIFICE
6	G187559 Frigidaire Refrigerator Bushing
7	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
8	WCI 3001331
9	NUT, DAMPER MOUNTING
10	WCI 3206109
11B	LABEL - FAN COVER (NON-ILLUSTRATED)
11	WCI 3206318
12	WCI 08012820
13	WCI 08012843
14	WCI 3001038
15	WCI 3202336
16	WCI 08000007
17	WCI G142220
18	BRACKET, HINGE CENTER
19	WCI 08012258
22	5303001321 Frigidaire Refrigerator Lower Hinge Pin
23	HINGE-BRACKET-BOTTOM
24	241710601 Frigidaire Refrigerator Screw
25	PLUG-SHORT TEST HOLE (NON-ILLUSTRATED)
26	WCI 3001478
27A	WCI 08003584
27	SCREW-LEVELING (4)
28	WCI 3001458
29	SHIM-BOTTOM HINGE
30	WCI G174747--01
31	WCI 08000056
32	PIN-PUSH
33	TUBE, INSULATION (2)
34A	5304455650 Frigidaire Refrigerator Screw
34	WCI 08009771
34B	NUT, ORIFICE (2)
35	WCI G163669
36	WCI 3018193
37	DRAIN TROUGH
38	WCI G183861
39	RING, SEAL (NON-ILLUSTRATED)
40A	5304455651 Frigidaire Refrigerator Screw
40	WCI 08009773
40A	WCI 08009762
41	WCI 08009760
42	WCI 08009790
43	WCI 08009761
44	WCI 08011326
45	WCI 08013678
46	WCI 08010092
