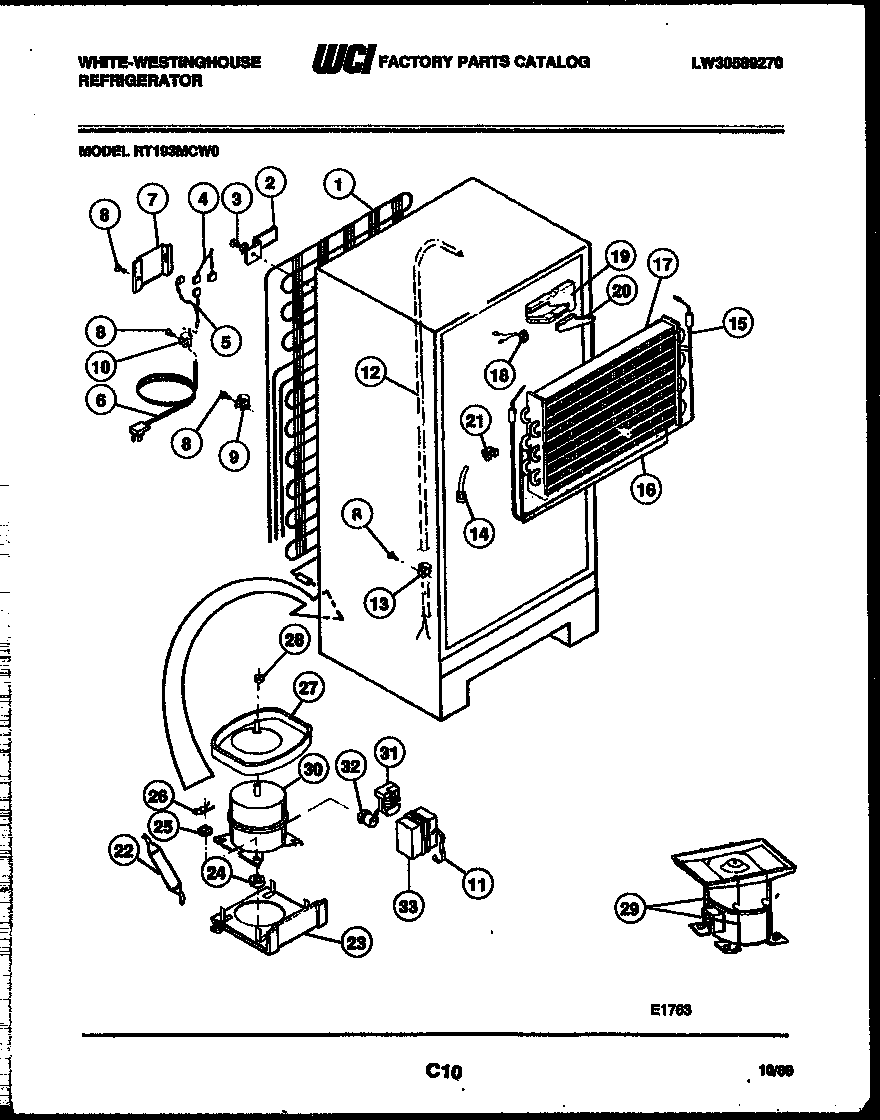

RT193MCW0 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

Position	Product
*23505	HOT TUBE REPAIR KIT
1	WCI G163133
2	BRACKET-CONDENSER MOUNTING (4)
3A	WASHER
3	5308000039 Frigidaire Refrigerator Screw
4	WCI 3018900
5	HARNESS-COMPRESSOR
6	CORD, SERVICE
7	WCI G183584
8	5304455651 Frigidaire Refrigerator Screw
10	5303001199 Frigidaire Refrigerator Wiring Harness Clamp
11	5303006412 Frigidaire Refrigerator Cover Mounting Strap
12	HEAT-EXCH
13	240396801 Frigidaire Refrigerator Tube Clamp
14	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
15	5317842502 Frigidaire Defrost Heater
16	INSULATOR
17	EVAPORATOR
18	WCI G1626901-01
19	BLOCK, EVAPORATOR, RH
20	PLUG, EVAPORATOR INSULATION BLOCK, R H
21	BLOCK, LEFT SIDE
22	5303305677 Frigidaire Replacement Filter Dryer Filters
23	WCI 08013663
24	218513300 Frigidaire Refrigerator Compressor Mount Grommet
25	WASHER, COMPRESSOR MOUNTING (4)
26	CLIP, COMPRESSOR MOUNTING (4)
27A	5303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
27	DEFROST PAN & NUT
28	NUT, LOCK
29	PAN RETAINER KIT-SERVICE
30A	CAPACITOR-RUN
30	WCI 3916004
31	WCI 3007173
32	WCI 3001713
