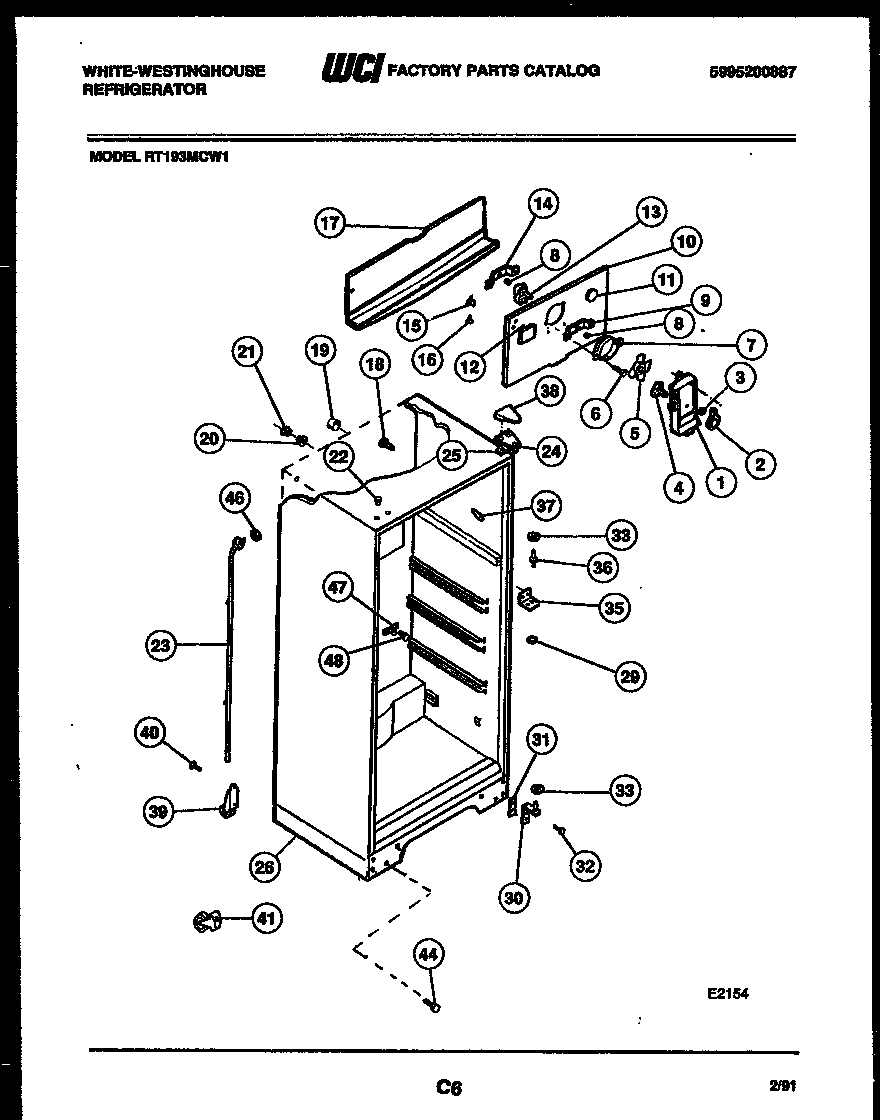

RT193MCW1 03 – CABINET PARTS

Products

Position	Product
*41891	PLUG, BUTTON, CABINET LINER (NI)
1	WCI 3206318
2	WCI 3206109
3	Nut,push-on
4	DAMPER-FAN COVER
5	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
6	5304455651 Frigidaire Refrigerator Screw
7	RING-FAN ORIFICE
8	G187559 Frigidaire Refrigerator Bushing
9	WCI 5303001226
10	WCI 5308009771
10A	NUT, ``U`` TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
10B	5304455650 Frigidaire Refrigerator Screw
11	5303208309 Frigidaire Refrigerator Plug Hole
12	PLUG-DECORATIVE, ICE MAKER HOLE
13	5300158289 Frigidaire Evaporator Fan Motor
14	BRACKET-MOTOR MTG, REAR
15	WCI 5308000107
17	WCI 5303001470
18	SUPPORT-COIL COVER
19	TUBE-RUBBER
20	WCI 5303001286
21	WCI 5303001287
22	PLUG-BUTTON, WHITE
23	WCI 5303210377
24	BRACKET-UPPER HINGE
24A	TAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
25	SHIM - UPPER HINGE
26	WCI 3212487
29	WCI 5308000186
30B	TAPPING PLATE, GUSSET, LH (NOT ILLUSTRATED)
30A	TAPPING PLATE, GUSSET, RH (NOT ILLUSTRATED)
30	BRACKET-LOWER HINGE, W/ HINGE PIN
31	WCI 5303212488
32	241710601 Frigidaire Refrigerator Screw
33	WASHER, .34 X .62 X .05, NYLON
35A	WCI 5308012258
35	BRACKET-CTR HINGE
36	WCI 5308000184
37	TRIM-CABINET CORNER, WHITE
38	COVER-UPPER HINGE, WHITE
39	WCI 5308009773
40	BOLT-ROLLER MTG, HEX WASHER HEAD, 1/4-28 X 1/2, (2)
41	WCI 5303212490
44	WCI 5303212598
46	WCI 5303207353
47	WCI 5308000056
48	WCI 5303001361
