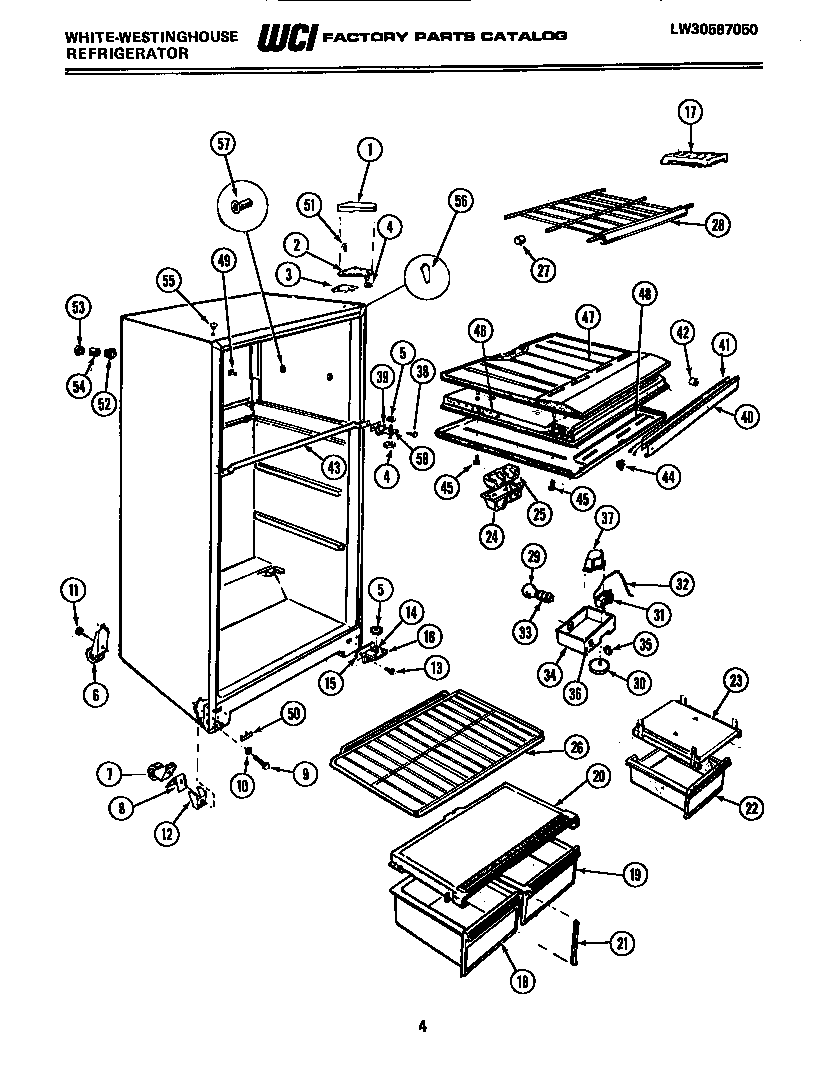

RT194KCD0 03 – CABINET PARTS

Products

Position	Product
1	COVER, TOP HINGE, ALMOND
2	BRACKET, TOP HINGE
3	WCI G183861
4	WCI G103903
5	WASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
6	ROLLER, REAR (2)
7	ROLLER FRONT, ADJUSTABLE (2)
8	SPRING-ROLLER (2)
9	BOLT-ROLLER (2)
10	WASHER
11	BOLT ROLLER (2)
12	SUPPORT, ROLLER (2)
14	5303001321 Frigidaire Refrigerator Lower Hinge Pin
15	SHIM, HINGE
16	BRACKET, HINGE, LOWER
17	ICE TRAY
18	WCI G490015-01
19	WCI G176639-22
20	WCI G490064-03
21	SUPPORT, CRISPER COVER
22	WCI G176918-22
23	WCI G177106-06
24	WCI G162178
25	DEFLECTOR AIR
26	WCI G179415-02
27	WCI G166495-01
28	WCI G184193-02
29	WCI Q63749
30	KNOB
31A	WCI G107080
31	COLD CONTROL
32	TUBE
33	SOCKET LIGHT
34	WCI G176722-01
35	WCI G178402-02
36	LABEL-BOX
37	215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
37A	5304455649 Frigidaire Refrigerator Screw
38	SCREW, BRACKET MOUNTING (4)
39	BRACKET, HINGE CENTER
41	WCI G177254
42	SPACER, MULLION (2)
42A	WASHER (2)
43	STRAP, MULLION MOUNTING
44	5309918806 Frigidaire Refrigerator Light Switch Door
45	SCREW (5)
46	DIVIDER, CENTER
47	BOTTOM, FC
48	TOP, PC
49	WCI G163669
50	WCI G166912
51	241710601 Frigidaire Refrigerator Screw
52	WCI G174733
53	WCI G174734
54	TUBE, INSULATION (2)
55	WCI G174747-11
56	TRIM-CORNER, ALMOND (4)
57B	HARNESS, WIRING
57A	5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
57	5304509705 Frigidaire Refrigerator Grommet
57D	BUTTON, LINER
57C	BUTTON, PLUG, LINER (2)
58	WCI G142220
