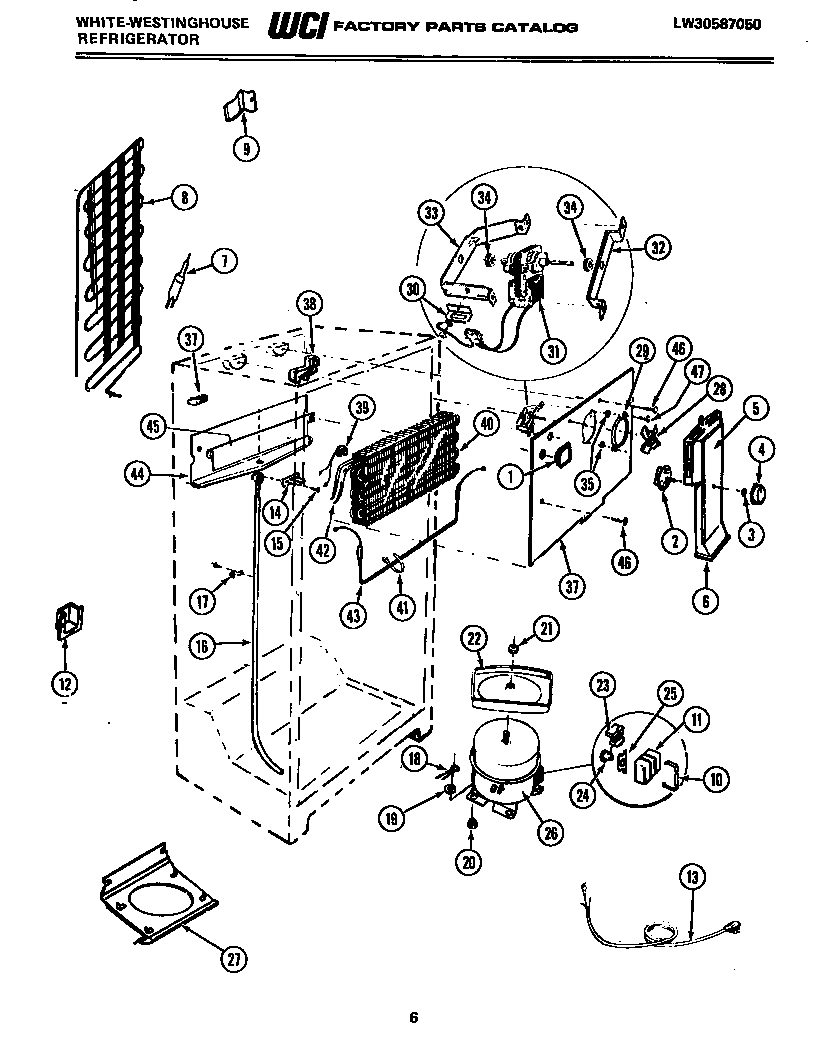

RT194KCF0 04 – SYSTEM AND AUTOMATIC DEFROST PARTSadmin2025-04-26T10:19:58+00:00RT194KCF0 04 – SYSTEM AND AUTOMATIC DEFROST PARTS
Products
| Position | Product |
|---|
| 1 | PLUG, DECORATIVE |
| 2 | DAMPER FAN COVER |
| 3 | NUT, DAMPER MOUNTING |
| 4 | WCI G162663-13 |
| 5 | LABEL-FAN COVER |
| 6 | WCI G490076-01 |
| 7 | DRIER, REGULAR |
| 7A | WCI R900125 |
| 8 | WCI G163133 |
| 9 | BRACKET-CONDENSER MOUNTING (4) |
| 10 | 5303006412 Frigidaire Refrigerator Cover Mounting Strap |
| 12 | WCI G183584 |
| 13 | CORD, SERVICE |
| 14 | SPOUT DRAIN TUBE |
| 15 | PIN PUSH SPOUT (2) |
| 16 | TUBE, DRAIN |
| 17 | WCI G101747 |
| 18 | CLIP, COMPRESSOR MOUNTING (4) |
| 19 | WASHER, COMPRESSOR MOUNTING (4) |
| 20 | 218513300 Frigidaire Refrigerator Compressor Mount Grommet |
| 21 | NUT, LOCK |
| 22 | WCI G184716 |
| 23 | WCI G182225-11 |
| 24 | WCI G185810 |
| 25 | RETAINER, OVERLOAD |
| 26 | WCI C620106 |
| 27 | PLATE |
| 28 | 5308000010 Frigidaire Refrigerator Evaporator Fan Blade |
| 29 | RING, FAN ORIFICE |
| 30 | WCI G164571 |
| 31 | 5300158289 Frigidaire Evaporator Fan Motor |
| 32 | WCI G185302 |
| 33 | WCI G185303 |
| 35 | BUTTON, LINER |
| 36 | WCI G177529 |
| 37 | BLOCK, EVAPORATOR, LH |
| 38A | PLUG, EVAPORATOR INSULATION BLOCK, R H |
| 38 | BLOCK, EVAPORATOR, RH |
| 39 | 5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit |
| 40 | EVAPORATOR |
| 41 | 5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap |
| 42 | HEAT, EXCHANGE |
| 43 | 5317842502 Frigidaire Defrost Heater |
| 44 | WCI G177534 |
| 45 | INSULATOR |
| 46 | 5304455650 Frigidaire Refrigerator Screw |
| 47 | 218843801 Frigidaire Refrigerator Screw |
