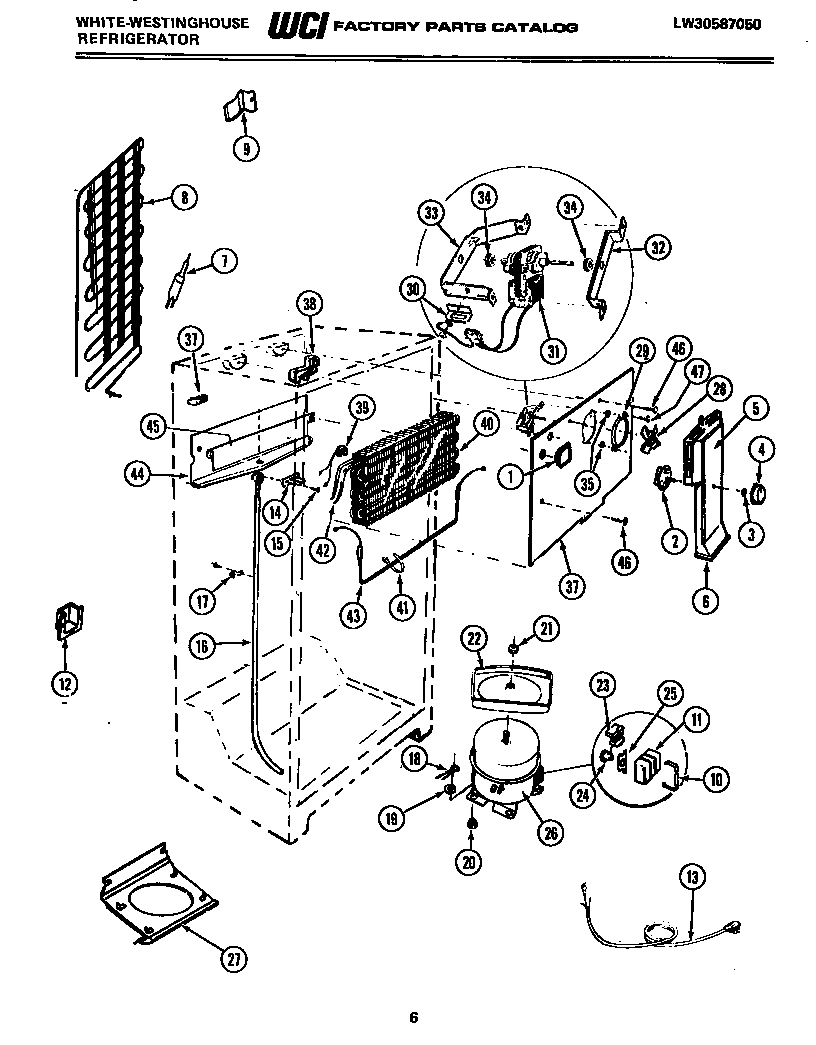

RT194KCW0 04 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

Position	Product
1	PLUG, DECORATIVE
2	DAMPER FAN COVER
3	NUT, DAMPER MOUNTING
4	WCI G162663-13
5	LABEL-FAN COVER
6	WCI G490076-01
7	DRIER, REGULAR
7A	WCI R900125
8	WCI G163133
9	BRACKET-CONDENSER MOUNTING (4)
10	5303006412 Frigidaire Refrigerator Cover Mounting Strap
12	WCI G183584
13	CORD, SERVICE
14	SPOUT DRAIN TUBE
15	PIN PUSH SPOUT (2)
16	TUBE, DRAIN
17	WCI G101747
18	CLIP, COMPRESSOR MOUNTING (4)
19	WASHER, COMPRESSOR MOUNTING (4)
20	218513300 Frigidaire Refrigerator Compressor Mount Grommet
21	NUT, LOCK
22	WCI G184716
23	WCI G182225-11
24	WCI G185810
25	RETAINER, OVERLOAD
26	WCI C620106
27	PLATE
28	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
29	RING, FAN ORIFICE
30	WCI G164571
31	5300158289 Frigidaire Evaporator Fan Motor
32	WCI G185302
33	WCI G185303
35	BUTTON, LINER
36	WCI G177529
37	BLOCK, EVAPORATOR, LH
38A	PLUG, EVAPORATOR INSULATION BLOCK, R H
38	BLOCK, EVAPORATOR, RH
39	5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
40	EVAPORATOR
41	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
42	HEAT, EXCHANGE
43	5317842502 Frigidaire Defrost Heater
44	WCI G177534
45	INSULATOR
46	5304455650 Frigidaire Refrigerator Screw
47	218843801 Frigidaire Refrigerator Screw
