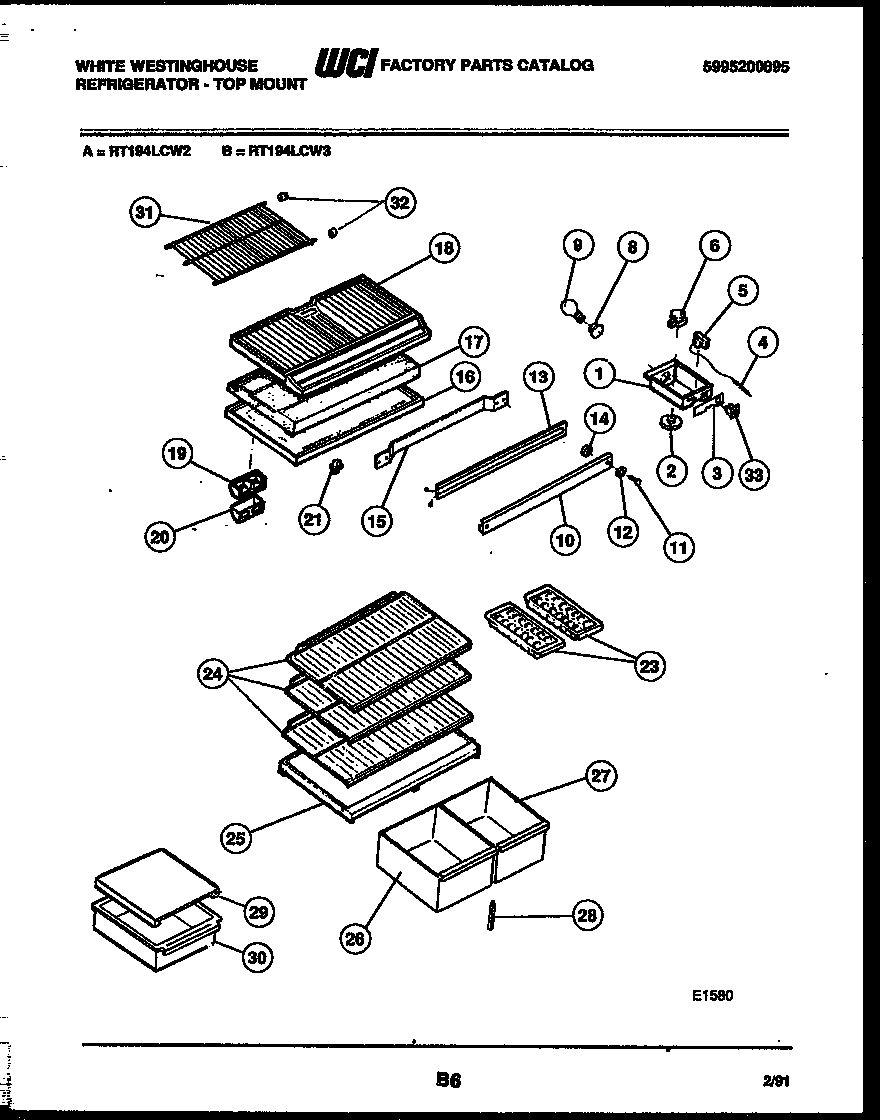

RT194LCD2 04 – SHELVES AND SUPPORTSadmin2025-04-26T10:21:58+00:00RT194LCD2 04 – SHELVES AND SUPPORTS
Products
| Position | Product |
|---|
| 1A | 5304455650 Frigidaire Refrigerator Screw |
| 1 | BOX-CONTROL |
| 2 | WCI 5308010011 |
| 3 | WCI G000180105 |
| 4 | TUBE |
| 5 | WCI 5303200810 |
| 5A | WCI 5303001260 |
| 6 | 215846602 Frigidaire Refrigerator 8-Hour Defrost Timer |
| 6A | 5304455649 Frigidaire Refrigerator Screw |
| 8 | SOCKET-LIGHT/LAMP |
| 9 | 316538904 Frigidaire Oven Lamp Light |
| 10 | WCI 5303200370 |
| 11 | WCI 5308012258 |
| 12 | WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI) |
| 13 | WCI 5303210351 |
| 14 | SPACER-MULLION MTG, STEEL |
| 15 | WCI 5308010008 |
| 16A | BUSHING, SNAP-IN, PLASTIC (NOT ILLUSTRATED) |
| 16 | TOP PANEL-REFR, W/SNAP BUSHING |
| 16B | WCI 5303001380 |
| 17A | HARNESS-WIRING, CONTROL/DIVIDER,(NON-ILLUSTRATED) |
| 17 | DIVIDER, STYROFOAM |
| 18 | WCI 5303211427 |
| 19 | DEFLECTOR-AIR |
| 20 | COVER - AIR DEFLECTOR |
| 21 | 5309918806 Frigidaire Refrigerator Light Switch Door |
| 23 | 215667501 Frigidaire Refrigerator Ice Tray Primary |
| 24 | WCI 5317851102 |
| 25 | WCI 5308010006 |
| 26 | WCI 5349001501 |
| 27 | WCI G176639-22 |
| 28 | SUPPORT-CRISPER CVR, ADJUSTABLE |
| 29 | WCI 5303200492 |
| 30 | WCI G176918-22 |
| 31 | WCI G184193-02 |
| 31B | 5304500407 Frigidaire Refrigerator Shelf Mounting Grommet |
| 31A | 5304509705 Frigidaire Refrigerator Grommet |
| 32 | END CAP-SHELF,PROTECTOR |
| 33 | SWITCH-ENERGY SAVER, SLIDE TYPE |
