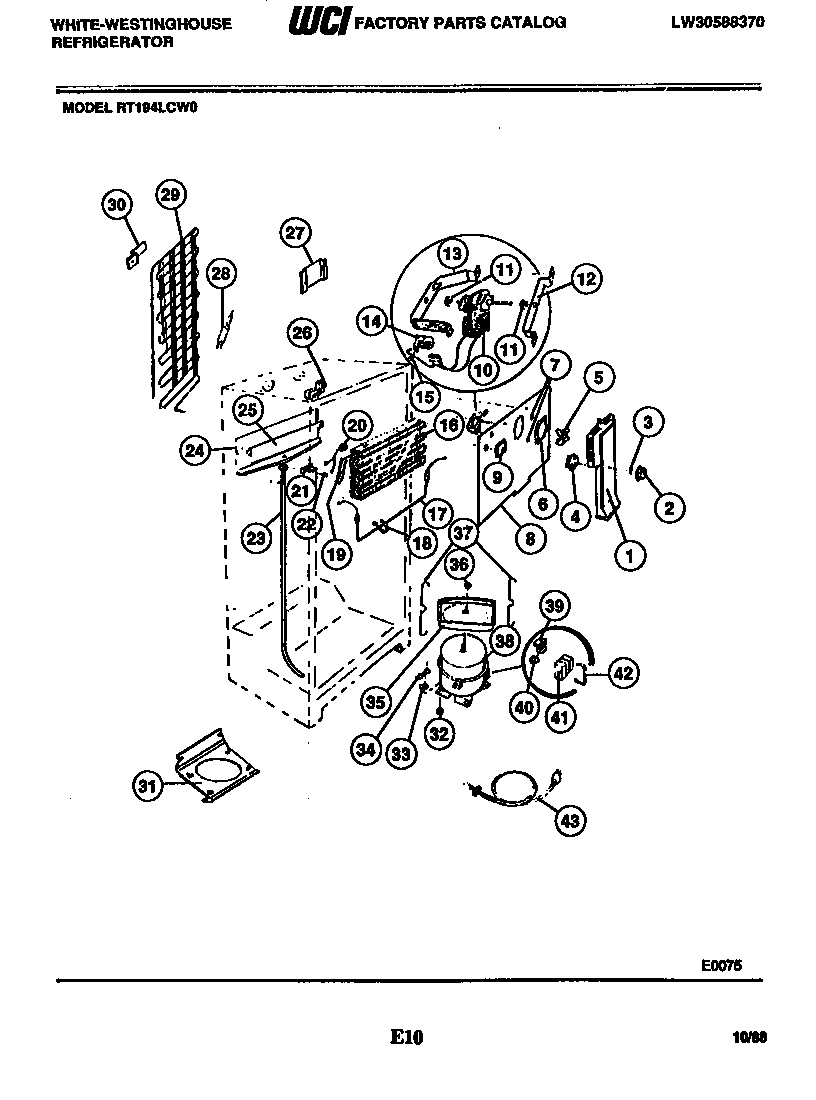

RT194LCDO 04 – EVAPORATOR/CONDENSER

Products

PositionProduct
*918195303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
*91818PLUG, EVAPORATOR INSULATION BLOCK, R H
*91817BLOCK, LEFT SIDE
*91822HOT TUBE REPAIR KIT
*91820HARNESS-COMPRESSOR
*91816RING, SEAL (NON-ILLUSTRATED)
*918155304455650 Frigidaire Refrigerator Screw
*91821HARNESS, WIRING
*91814LABEL-FAN COVER
1WCI G490076-01
2WCI G162663-15
3NUT, DAMPER MOUNTING
4DAMPER FAN COVER
55308000010 Frigidaire Refrigerator Evaporator Fan Blade
6RING, FAN ORIFICE
7NUT, ORIFICE (2)
8WCI G177529
9PLUG-BUTTON DECOR
105300158289 Frigidaire Evaporator Fan Motor
11BUTTON, LINER
12WCI G185302
13WCI G185303
14WCI G164571
155304455651 Frigidaire Refrigerator Screw
16EVAPORATOR
175317842502 Frigidaire Defrost Heater
185308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
19HEAT, EXCHANGE
205303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
21SPOUT DRAIN TUBE
22PIN PUSH SPOUT (2)
23TUBE, DRAIN
24WCI G177534
25INSULATOR
26BLOCK, EVAPORATOR, RH
27WCI G183584
285303305677 Frigidaire Replacement Filter Dryer Filters
29WCI G162739
30BRACKET-CONDENSER MOUNTING (4)
31PLATE
32218513300 Frigidaire Refrigerator Compressor Mount Grommet
33WASHER, COMPRESSOR MOUNTING (4)
34CLIP, COMPRESSOR MOUNTING (4)
35DEFROST PAN
36NUT, LOCK
37PAN RETAINER KIT-SERVICE
38COMPRESSOR WITH ELECTRICALS
39AWCI G150618-33
39WCI G1282225-12
40WCI G185797
40AWCI G176002
41WCI G185792
42A5303006412 Frigidaire Refrigerator Cover Mounting Strap
42STRAP-COVER
43CORD, SERVICE
