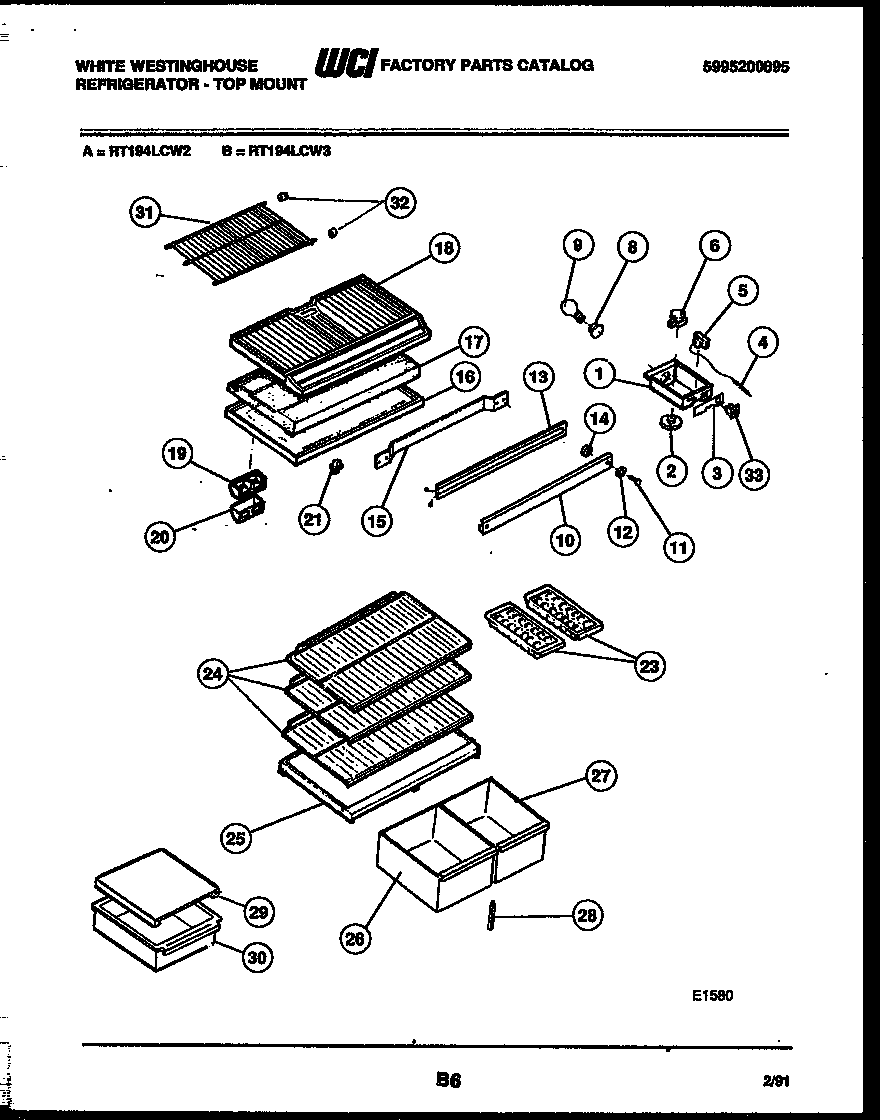

RT194LCH3 04 – SHELVES AND SUPPORTS

RT194LCH3 04 – SHELVES AND SUPPORTS

Written by

in

RT194LCH3 04 – SHELVES AND SUPPORTS

Products

PositionProduct
1A5304455650 Frigidaire Refrigerator Screw
1BOX-CONTROL
2WCI 5308010011
3WCI G000180105
4TUBE
5WCI 5303200810
5AWCI 5303001260
6215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
6A5304455649 Frigidaire Refrigerator Screw
8SOCKET-LIGHT/LAMP
9316538904 Frigidaire Oven Lamp Light
10WCI 5303200368
11WCI 5308012258
12WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
13WCI 5303210351
14SPACER-MULLION MTG, STEEL
15WCI 5308010008
16ABUSHING, SNAP-IN, PLASTIC (NOT ILLUSTRATED)
16TOP PANEL-REFR, W/SNAP BUSHING
16BWCI 5303001380
17AHARNESS-WIRING, CONTROL/DIVIDER,(NON-ILLUSTRATED)
17DIVIDER, STYROFOAM
18WCI 5303211427
19DEFLECTOR-AIR
20COVER – AIR DEFLECTOR
215309918806 Frigidaire Refrigerator Light Switch Door
23215667501 Frigidaire Refrigerator Ice Tray Primary
24WCI 5317851102
25WCI 5308010006
26WCI 5349001501
27WCI G176639-22
28SUPPORT-CRISPER CVR, ADJUSTABLE
29WCI 5303200492
30WCI G176918-22
31WCI G184193-02
31B5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
31A5304509705 Frigidaire Refrigerator Grommet
32END CAP-SHELF,PROTECTOR
33SWITCH-ENERGY SAVER, SLIDE TYPE
