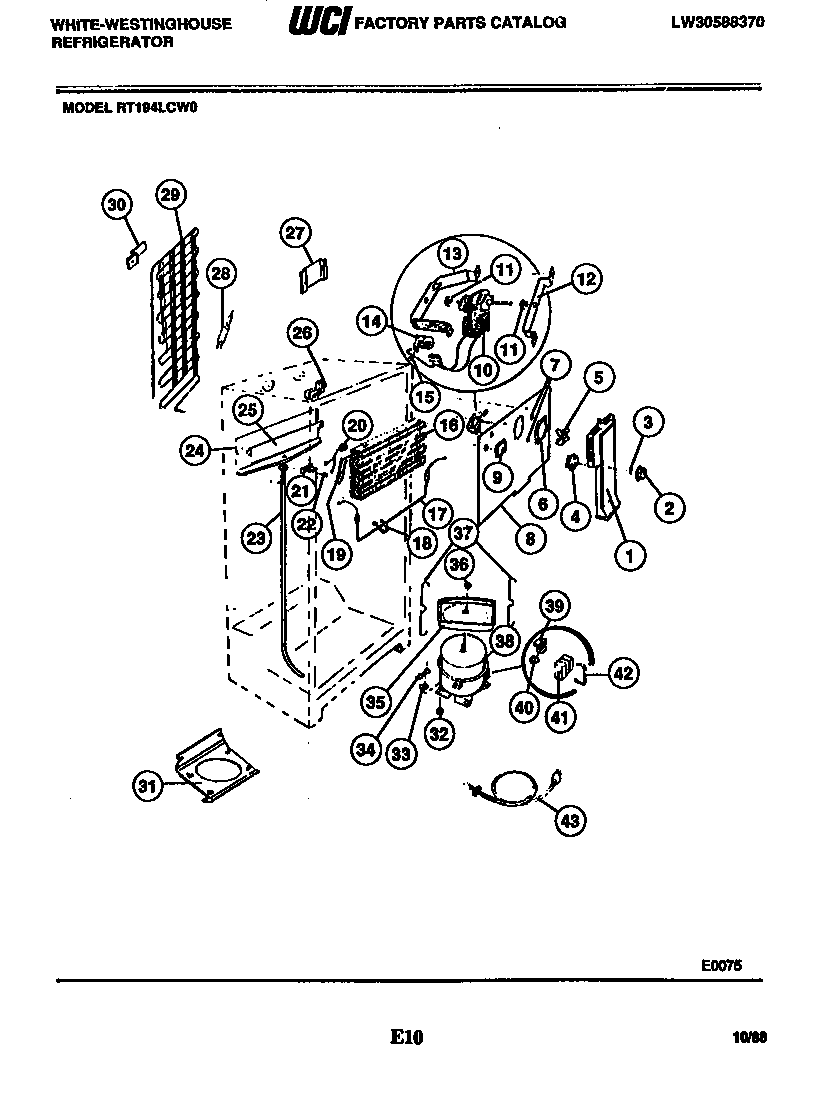

RT194LCVO 04 – EVAPORATOR/CONDENSER

Products

Position	Product
*91819	5303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
*91818	PLUG, EVAPORATOR INSULATION BLOCK, R H
*91817	BLOCK, LEFT SIDE
*91822	HOT TUBE REPAIR KIT
*91820	HARNESS-COMPRESSOR
*91816	RING, SEAL (NON-ILLUSTRATED)
*91815	5304455650 Frigidaire Refrigerator Screw
*91821	HARNESS, WIRING
*91814	LABEL-FAN COVER
1	WCI G490076-01
2	WCI G162663-15
3	NUT, DAMPER MOUNTING
4	DAMPER FAN COVER
5	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
6	RING, FAN ORIFICE
7	NUT, ORIFICE (2)
8	WCI G177529
9	PLUG-BUTTON DECOR
10	5300158289 Frigidaire Evaporator Fan Motor
11	BUTTON, LINER
12	WCI G185302
13	WCI G185303
14	WCI G164571
15	5304455651 Frigidaire Refrigerator Screw
16	EVAPORATOR
17	5317842502 Frigidaire Defrost Heater
18	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
19	HEAT, EXCHANGE
20	5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
21	SPOUT DRAIN TUBE
22	PIN PUSH SPOUT (2)
23	TUBE, DRAIN
24	WCI G177534
25	INSULATOR
26	BLOCK, EVAPORATOR, RH
27	WCI G183584
28	5303305677 Frigidaire Replacement Filter Dryer Filters
29	WCI G162739
30	BRACKET-CONDENSER MOUNTING (4)
31	PLATE
32	218513300 Frigidaire Refrigerator Compressor Mount Grommet
33	WASHER, COMPRESSOR MOUNTING (4)
34	CLIP, COMPRESSOR MOUNTING (4)
35	DEFROST PAN
36	NUT, LOCK
37	PAN RETAINER KIT-SERVICE
38	COMPRESSOR WITH ELECTRICALS
39A	WCI G150618-33
39	WCI G1282225-12
40	WCI G185797
40A	WCI G176002
41	WCI G185792
42A	5303006412 Frigidaire Refrigerator Cover Mounting Strap
42	STRAP-COVER
43	CORD, SERVICE
