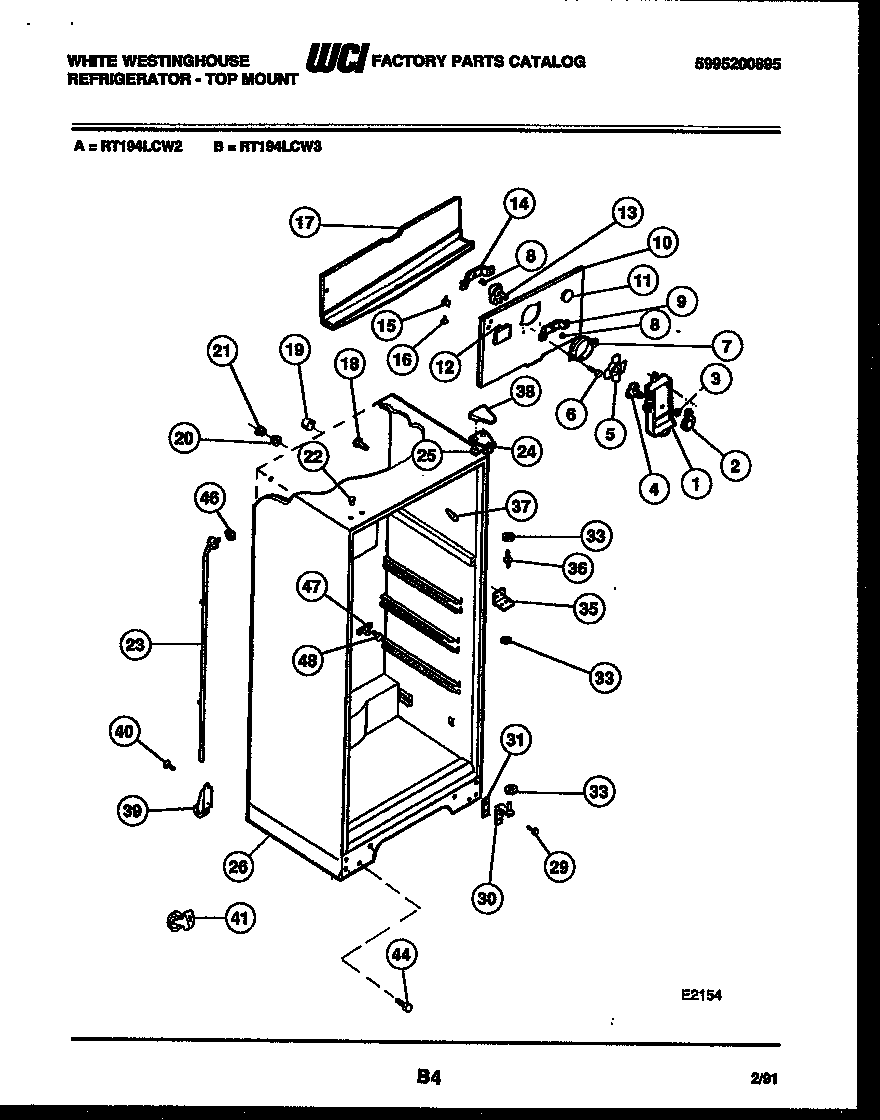

RT194LCW2 03 – CABINET PARTS

Products

PositionProduct
*42597PLUG, BUTTON, CABINET LINER (NI)
1WCI 5349007601
1AWCI G000187640
2WCI 5316266315
3Nut,push-on
4DAMPER-FAN COVER
55308000010 Frigidaire Refrigerator Evaporator Fan Blade
65304455651 Frigidaire Refrigerator Screw
7RING-FAN ORIFICE
8G187559 Frigidaire Refrigerator Bushing
9WCI 5303001226
10ANUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
10WCI 5308009771
10B5304455650 Frigidaire Refrigerator Screw
115303208309 Frigidaire Refrigerator Plug Hole
12PLUG-DECORATIVE, ICE MAKER HOLE
135300158289 Frigidaire Evaporator Fan Motor
14BRACKET-MOTOR MTG, REAR
15WCI 5308000107
17WCI 5303001470
18SUPPORT-COIL COVER
19TUBE-RUBBER
20WCI 5303001286
21WCI 5303001287
22PLUG-BUTTON, WHITE
23WCI 5303210377
24BRACKET-UPPER HINGE
24BTAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
25SHIM – UPPER HINGE
26WCI 3212487
29241710601 Frigidaire Refrigerator Screw
30BRACKET-LOWER HINGE, W/ HINGE PIN
31ATAPPING PLATE, GUSSET, RH (NOT ILLUSTRATED)
31WCI 5303212488
31BTAPPING PLATE, GUSSET, LH (NOT ILLUSTRATED)
33WCI 5308000186
35AWCI 5308012258
35BRACKET-CTR HINGE
36WCI 5308000184
37TRIM-CABINET CORNER, WHITE
38COVER-UPPER HINGE, WHITE
39WCI 5308009773
40BOLT-ROLLER MTG, HEX WASHER HEAD, 1/4-28 X 1/2, (2)
41WCI 5303212490
44WCI 5303212598
46WCI 5303207353
47WCI 5308000056
48WCI 5303001361
