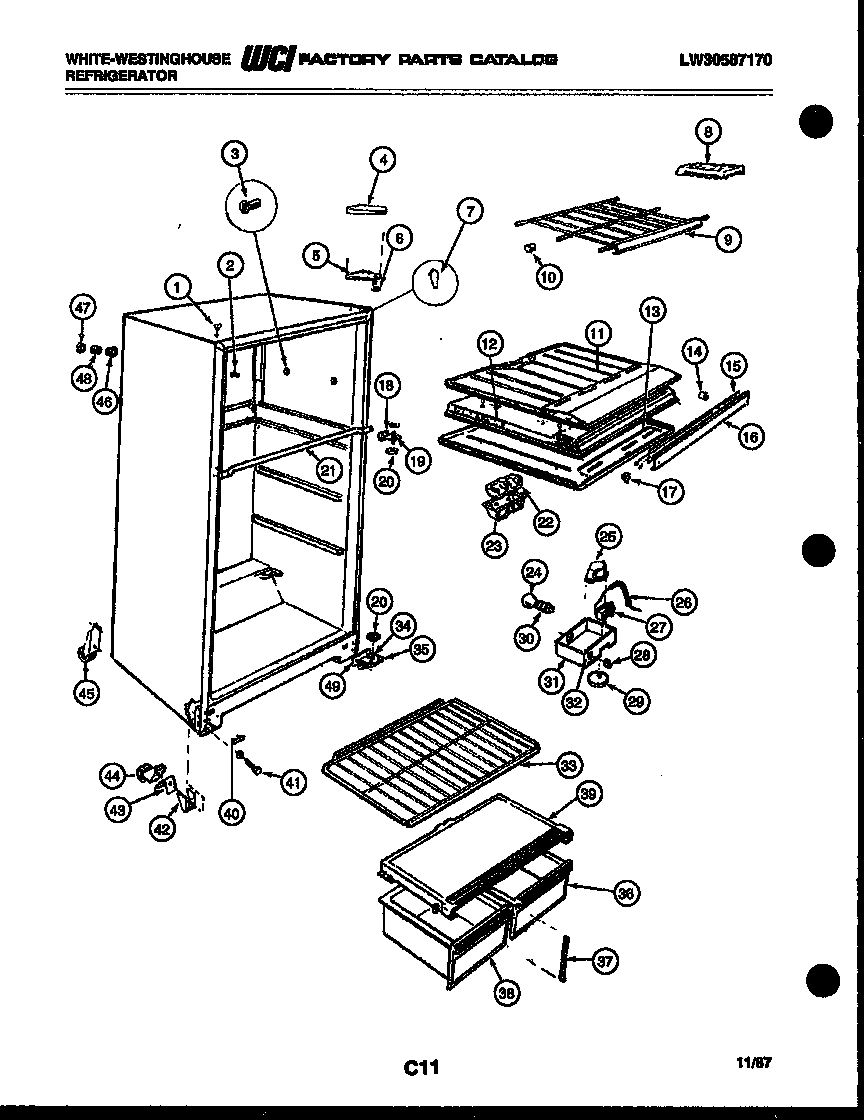

RT194ZCD1 03 – CABINET PARTS

Products

Position	Product
1	WCI G174747-11
2	WCI G163669
3A	5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
3	5304509705 Frigidaire Refrigerator Grommet
4	COVER, TOP HINGE, ALMOND
5	BRACKET, TOP HINGE
6	WCI G103903
7	TRIM-CORNER, ALMOND (4)
8	215667501 Frigidaire Refrigerator Ice Tray Primary
9	WCI G184193-02
10	WCI G166495-01
11	BOTTOM, FC
12	DIVIDER, CENTER
13	TOP, PC
14	SPACER, MULLION (2)
15	WCI G168722
16	WCI G180373-11
17	5309918806 Frigidaire Refrigerator Light Switch Door
18	WCI G142220
19	BRACKET, HINGE CENTER
20	WASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
21	STRAP, MULLION MOUNTING
22	DEFLECTOR AIR
23	WCI G162178
24	316538904 Frigidaire Oven Lamp Light
25	215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
26	TUBE
27	COLD CONTROL
28	SWITCH SLIDE
29	KNOB
30	SOCKET LIGHT
31	WCI G176722-01
32	WCI G177795
33	WCI G179415-02
34	5303001321 Frigidaire Refrigerator Lower Hinge Pin
35	BRACKET-HINGE
36	WCI G176639-22
37	SUPPORT, CRISPER COVER
38	WCI G490015-01
39	WCI G490064-03
40	WCI G166912
41	BOLT-ROLLER (2)
42	SUPPORT, ROLLER (2)
43	SPRING-ROLLER (2)
44	ROLLER FRONT, ADJUSTABLE (2)
44B	NUT, ANCHOR (2)
44A	LEG-LEVELING (2)
45	ROLLER, REAR (2)
46	WCI G174733
47	WCI G174734
48	TUBE, INSULATION (2)
49	SHIM, HINGE
