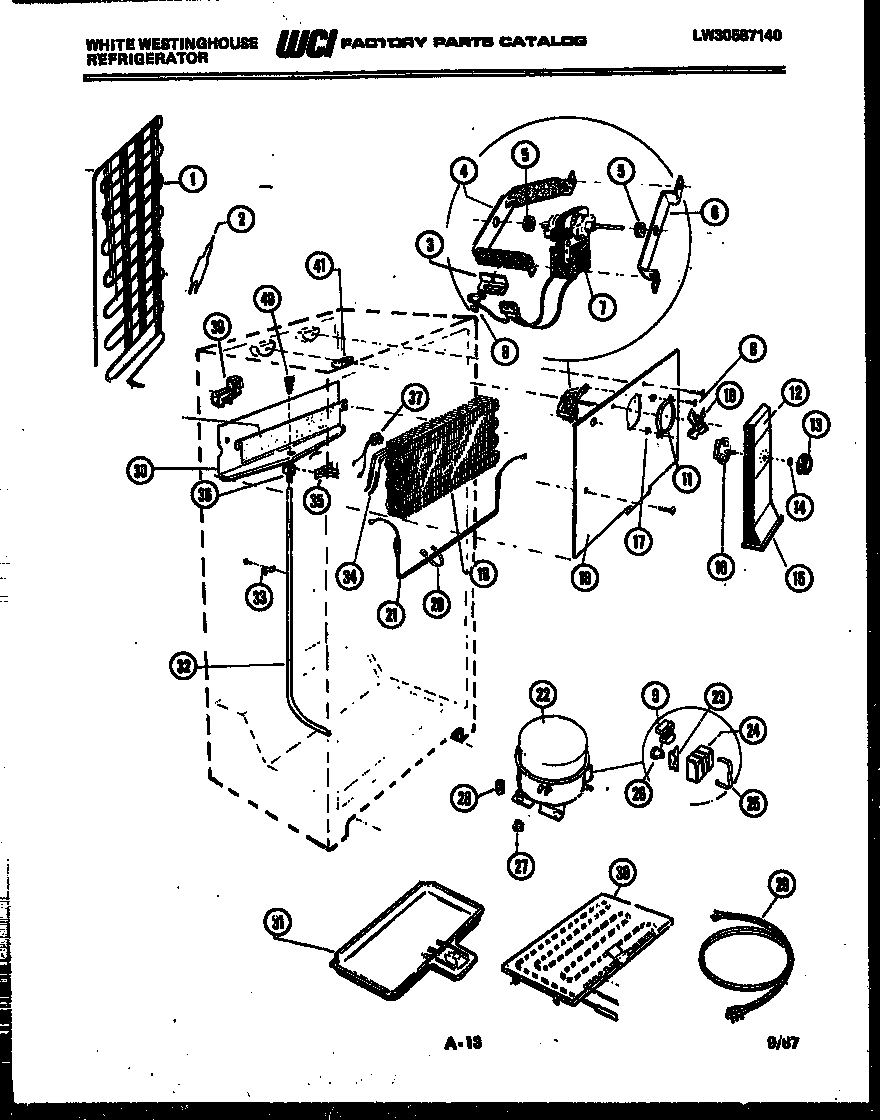

RT195KCD0 04 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

Position	Product
*18444	HEAT EXCHANGER REPAIR KIT
1	WCI G189768
2	5303305677 Frigidaire Replacement Filter Dryer Filters
3	WCI G164571
4	WCI G185303
5	G187559 Frigidaire Refrigerator Bushing
6	WCI G185302
7	5300158289 Frigidaire Evaporator Fan Motor
8	218843801 Frigidaire Refrigerator Screw
9	WCI G182225-18
10	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
11	RING, FAN ORIFICE
12	LABEL-FAN CVR
13	WCI G162663-15
14	NUT, DAMPER MOUNTING
15	WCI G179793-02
16	DAMPER FAN COVER
17	NUT, ORIFICE (2)
18	WCI G162050-02
19	EVAPORATOR
20	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
21	5317842502 Frigidaire Defrost Heater
22	WCI G190374
23	RETAINER, OVERLOAD
25	5303006412 Frigidaire Refrigerator Cover Mounting Strap
26	WCI G188877
27	218513300 Frigidaire Refrigerator Compressor Mount Grommet
28	WCI G151192
29	CORD, SERVICE
30	WCI G187294
31	PAN, DEFROST
32	TUBE-DRAIN
33	240396801 Frigidaire Refrigerator Tube Clamp
34	WCI G149013
35	SPOUT DRAIN TUBE
36	ELBOW, DRAIN
37	5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
38	WCI G170071
39	BLOCK, EVAPORATOR, LH
40	WCI G101620
41	WCI G163099
