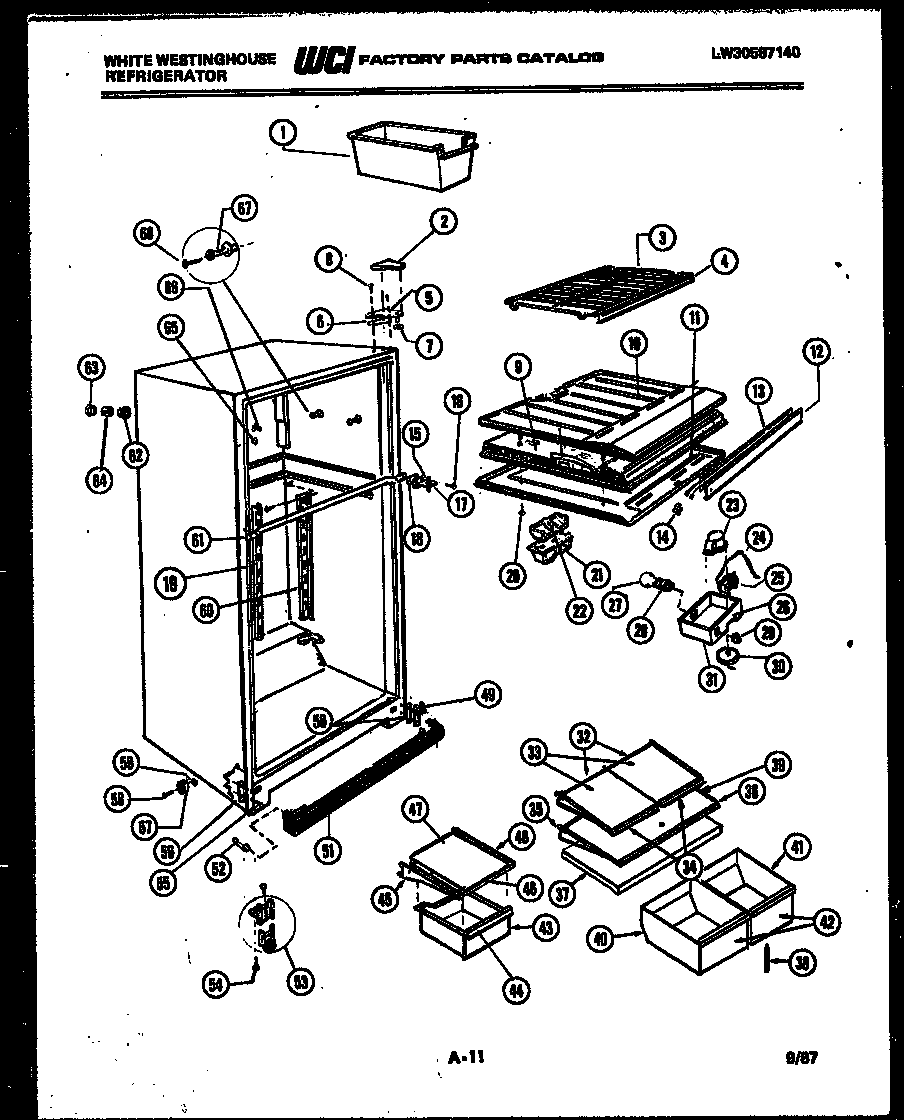

RT195KCH0 03 – CABINET PARTS

Products

Position	Product
*18417	HOT TUBE REPAIR KIT (NON-ILLUSTRATED)
1	5303212918 Frigidaire Refrigerator Cont
2	COVER HINGE, WHEAT
3	SHELF-FRZR
4	TRIM
5	BRACKET, TOP HINGE
6	WCI G183861
7	WASHER, NYLON
8	241710601 Frigidaire Refrigerator Screw
9	DIVIDER-STYRO
10	DIVIDER-BTM
11	DIVIDER-TOP
12	WCI G162051-09
13	WCI G177254
14	5309918806 Frigidaire Refrigerator Light Switch Door
15	WCI G142220
16	SCREW, BRACKET MOUNTING (4)
17	WCI G162384
18	SHIM, HINGE
19	CHANNEL, CENTER SHELF, MOUNTING
20	SCREW (5)
21	WCI G162178
22	DEFLECTOR AIR
23	215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
24	TUBE
25	CONTROL
26	WCI G180197
27	316538904 Frigidaire Oven Lamp Light
28	SOCKET LIGHT
29	SWITCH SLIDE
30	KNOB
31	WCI G176722-01
32	FRAME-SHELF
34A	TRIM, REAR
35	FRAME-SHELF FULL (NON-ILLUSTRATED)
36A	TRIM-REAR (NON-ILLUSTRATED)
36	TRIM-FRONT (NON-ILLUSTRATED)
37	WCI G162840-01
37A	WCI G180108-02
38	WCI G166310-01
39	GLASS-SHELF (NON-ILLUSTRATED)
40	PAN, CRISPER
41	PAN, FRUIT
43	PAN, MEAT
44	WCI G177343-06
45	FRAME, SHELF
46A	TRIM, REAR
46	TRIM-SHELF
47	GLASS-SHELF
48	HANGER, MEAT PAN RH
48A	HANGER, MEAT PAN LH
49	BRACKET-LOWER HINGE
50	SHIM, HINGE
51	WCI G163080-03
52	WCI G162994
53	ROLLER ASSY (2)
54	WCI G166171
55	WCI G142361
56	TAPPING, PLATE (2)
57	ROLLER (2)
58	WCI G162809
59	NUT, DAMPER MOUNTING
60	CHANNEL, SHELF (2)
61	STRAP, MULLION MOUNTING
62	WCI G174733
63	WCI G174734
64	TUBE, INSULATION (2)
65	BUTTON, LINER
66	WCI G163669
67	SUPPORT, SHELF (8)
68	SCREW-SUPPORT MOUNTING (4) (NON-ILLUSTRATED)
