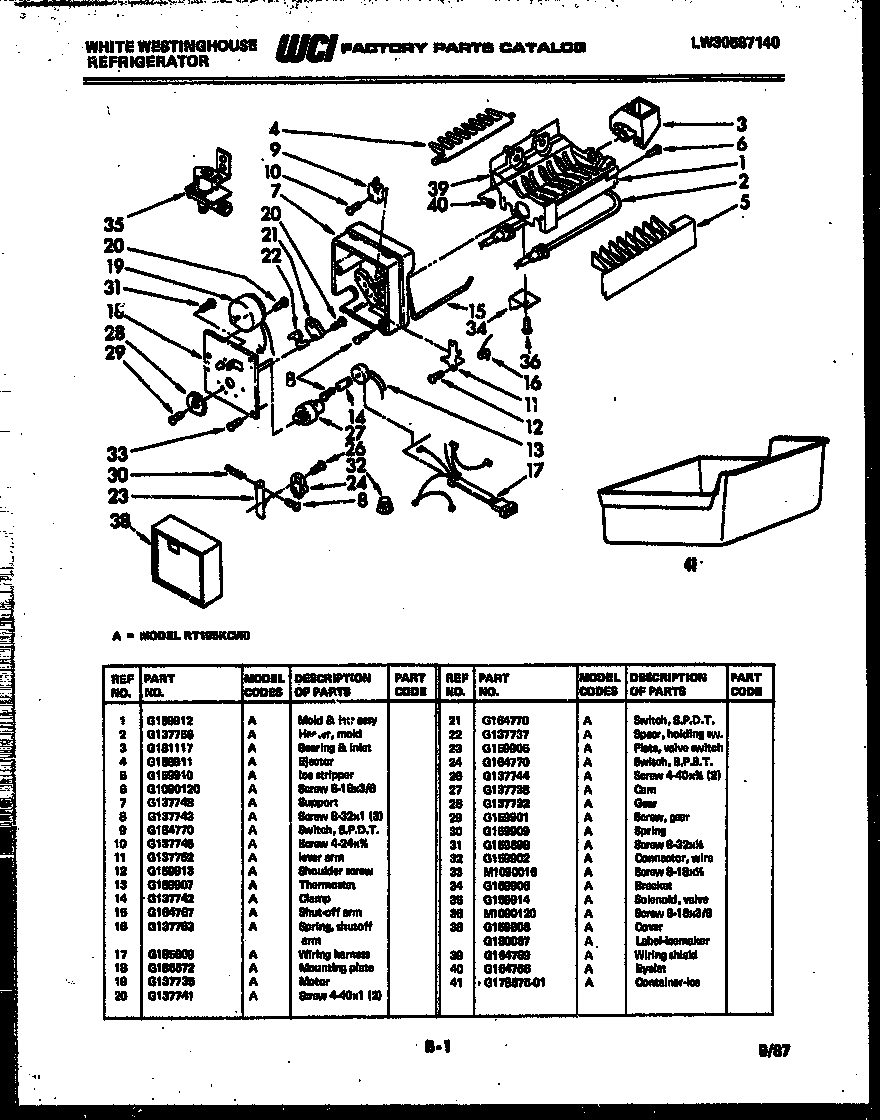

RT195KCH0 05 – ICE MAKER PARTS

Products

Position	Product
1	MOLD AND HEATER ASSEMBLY (INCLUDES ILLUSTRATION 29)
2	WCI G137756
3	WCI G181117
4	WCI G159911
5	STRIPPER-ICE
6	WCI G1090120
7	WCI G137748
8	SCREW 8, 32 X 1
10	WCI G137745
11	5304456675 Frigidaire Refrigerator Lever Arm
12	SCREW, SHOULDER
13	WCI G159907
14	WCI G137742
15	ARM, SHUT OFF
16	WCI G137753
17	WIRE ASSEMBLY
18	WCI G186572
19	WCI G137735
20	SCREW 4, 40 X 1
22	SPACER, HOLDING SWITCH
23	WCI G159905
24	SWITCH-SPST
26	SCREW 4, 40 X 3/4
27	WCI G137738
28	5304469403 Frigidaire Gear
29	SCREW
30	WCI G159909
31	WCI G159898
32	WCI G159902
33	WCI M1090016
34	WCI G159906
35	WCI G159914
36	WCI M1090120
38	WCI G159908
38A	LABEL ICE MAKER (NON-ILLUSTRATED)
39	SHIELD
40	WCI G164766
41	5303212918 Frigidaire Refrigerator Cont
