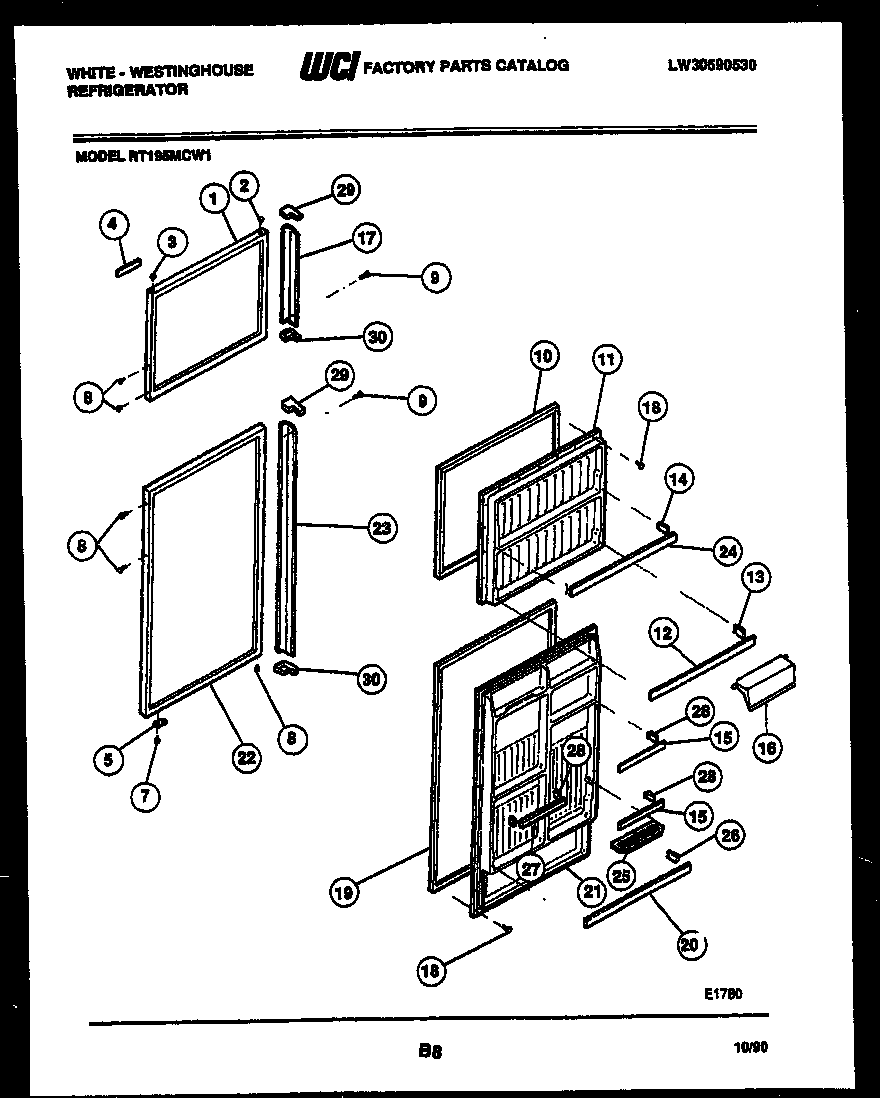

RT195MCD1 02 – DOOR PARTS

RT195MCD1 02 – DOOR PARTS

Written by

in

RT195MCD1 02 – DOOR PARTS

Products

PositionProduct
*31736WCI 530179271
*31736WCI 5303206514
*31736WCI 3206307
*31736INSULATION-BULK (NON-ILLUSTRATED)
1WCI 5303916056
2PLUG-BUTTON, ALMOND, HINGE BRG HOLE
3BEARING-HINGE
4WCI 3206159
5WCI 5308000255
5ADOOR STOP, REFR SECTION
8PLUG-BUTTON, ALMOND, HANDLE/DR STOP
9WCI 5308011745
10WCI 5303018791
11PANEL, INNER DOOR, FRZR
13SUPPORT-DOOR RACK, EXTENDS 1.06“, RH
13ASUPPORT-DOOR RACK, EXTENDS 1.06“, LH
15RACK-DOOR, SHORT, NARROW, (2)
16DOOR-DAIRY (INCLUDES TRIM)
16ATRIM-DAIRY DOOR (NON-ILLUSTRATED)
17WCI 3206217
18218843801 Frigidaire Refrigerator Screw
19WCI 5303018792
20RACK-DOOR, FULL-WIDTH, WIDE
21WCI 5303206513
22PANEL-REFR DOOR, ALMOND
23HANDLE-REF
24RACK-DOOR, FULL-WIDTH, NARROW
25WCI 3206189
26SUPPORT-DOOR RACK, RH
26ASUPPORT-DOOR RACK, LH
27RACK-DOOR, MEDIUM-WIDTH, NARROW
283206165 Frigidaire Bar Endcap Right Hand
28A3206166 Frigidaire Refrigerator Freezer Door Shelf Retainer Bar Endcap Rack Support
29WCI 530177144
29WCI 530177142
29WCI 530179270
30WCI 530177143
