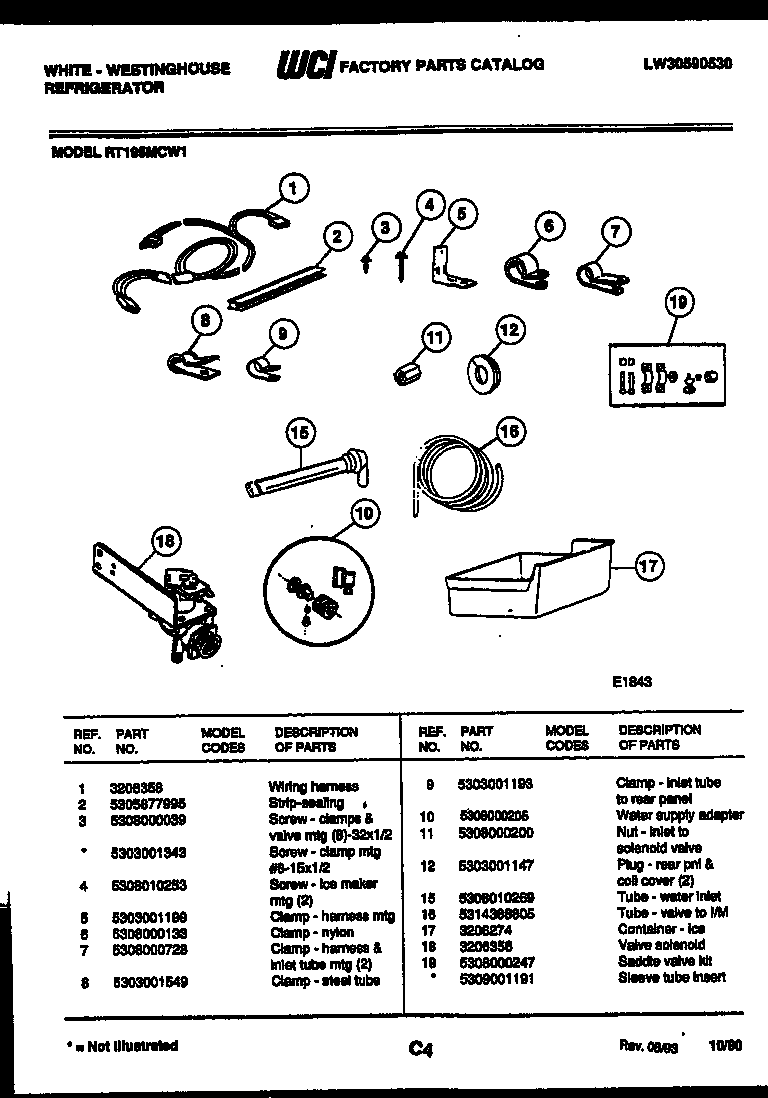

RT195MCF1 07 – ICE MAKER INSTALLATION PARTS

Products

Position	Product
*31774	WCI 5309001191
1	HARNESS-WIRING, ICE MAKER
2	5305877995 Frigidaire Refrigerator P-1 Sealing Strip
3A	5304455651 Frigidaire Refrigerator Screw
3	5308000039 Frigidaire Refrigerator Screw
4	5304455852 Frigidaire Refrigerator Screw
5	5303001199 Frigidaire Refrigerator Wiring Harness Clamp
6	5308000133 Frigidaire Refrigerator Clamp
7	WCI 5308000728
8	5304455846 Frigidaire Refrigerator Clamp
9	5303001193 Frigidaire Refrigerator Clamp
10	WCI 5308000205
11	NUT, 7/16 X 20, NYLON
12	5303001147 Frigidaire Refrigerator Plug-Harness Hole
15	215456100 Frigidaire Refrigerator Water Inlet Tube
16	5308010366 Frigidaire Refrigerator P1-Water Inlet Tube
17	5303212918 Frigidaire Refrigerator Cont
18	VALVE-WATER
19	WCI 5308000247
