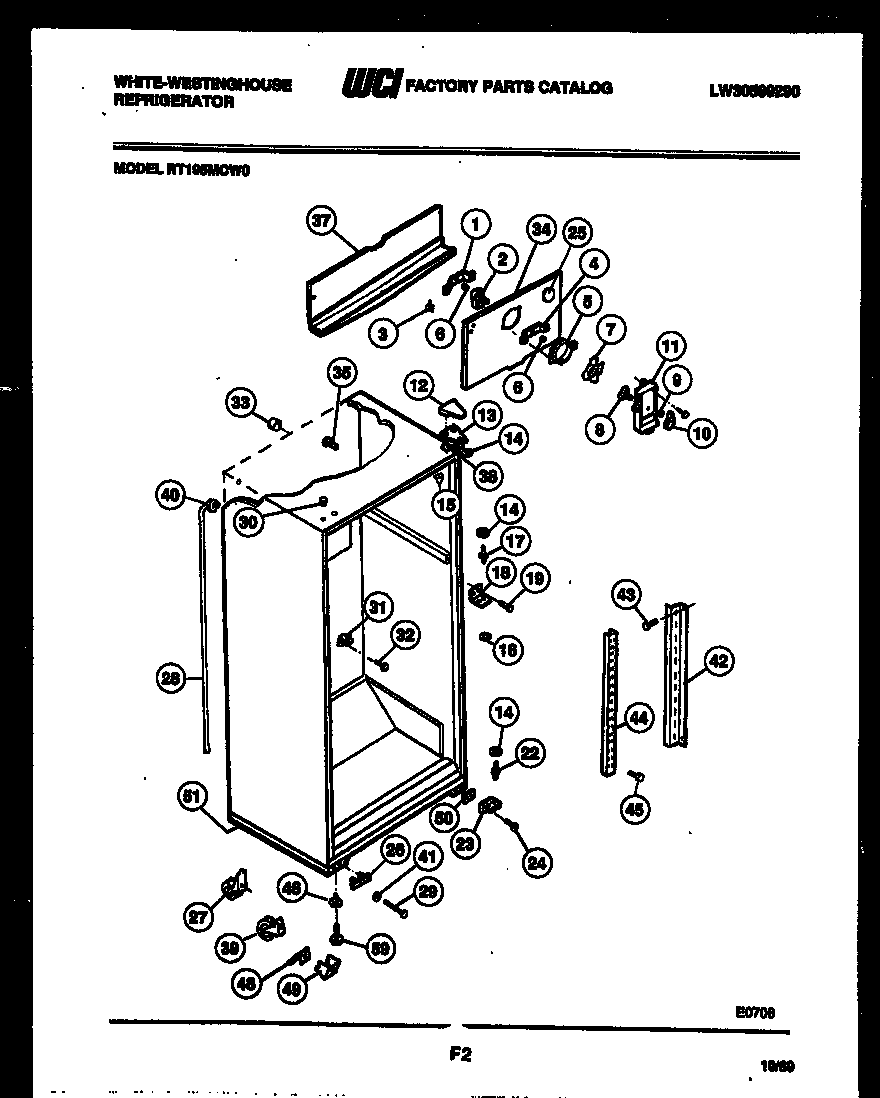

RT195MCV0 03 – CABINET PARTSadmin2025-04-26T10:21:22+00:00RT195MCV0 03 – CABINET PARTS
Products
| Position | Product |
|---|
| *24666 | BUTTON, LINER |
| *24667 | WCI G174733 |
| *24667 | WCI G174734 |
| *24666 | TAPPING PLATE (2) |
| 1 | WCI 3205119 |
| 2 | 5300158289 Frigidaire Evaporator Fan Motor |
| 3 | WCI G164571 |
| 4 | WCI 3205118 |
| 5 | RING, FAN ORIFICE |
| 5A | 218843801 Frigidaire Refrigerator Screw |
| 6 | G187559 Frigidaire Refrigerator Bushing |
| 7 | 5308000010 Frigidaire Refrigerator Evaporator Fan Blade |
| 8 | WCI 3001331 |
| 9 | NUT, DAMPER MOUNTING |
| 10 | WCI 3206381 |
| 11 | WCI 3206318 |
| 11B | LABEL - FAN COVER (NON-ILLUSTRATED) |
| 12 | COVER, TOP HINGE, AVOCADO |
| 13 | BRACKET, TOP HINGE |
| 14 | WCI G103903 |
| 15 | CORNER TRIM-AVOCADO |
| 16 | WASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET) |
| 17 | WCI G142220 |
| 18 | BRACKET, HINGE CENTER |
| 19 | WCI 08012258 |
| 22 | 5303001321 Frigidaire Refrigerator Lower Hinge Pin |
| 23 | HINGE-BRACKET-BOTTOM |
| 24 | 241710601 Frigidaire Refrigerator Screw |
| 25 | PLUG-SHORT TEST HOLE (NON-ILLUSTRATED) |
| 26 | WCI G166912 |
| 27A | BOLT ROLLER (2) |
| 27 | ROLLER, REAR (2) |
| 28 | WCI 3001458 |
| 28A | 5304455651 Frigidaire Refrigerator Screw |
| 29 | BOLT-ROLLER (2) |
| 30 | WCI G174747-08 |
| 31 | SPOUT DRAIN TUBE |
| 32 | PIN-PUSH |
| 33 | TUBE, INSULATION (2) |
| 34B | NUT, ORIFICE (2) |
| 34 | WCI 08009771 |
| 34A | 5304455650 Frigidaire Refrigerator Screw |
| 35 | WCI G163669 |
| 37 | DRAIN TROUGH |
| 38 | WCI G183861 |
| 39 | ROLLER FRONT, ADJUSTABLE (2) |
| 40 | RING, SEAL (NON-ILLUSTRATED) |
| 41 | WASHER |
| 42 | WCI 08000302 |
| 43 | 5304455852 Frigidaire Refrigerator Screw |
| 44 | CHANNEL-CENTER (NON-ILLUSTRATED) |
| 45 | WCI 08016568 |
| 46 | NUT, ANCHOR (2) |
| 47 | LEG-LEVELING (2) |
| 48 | SPRING-ROLLER (2) |
| 49 | SUPPORT, ROLLER (2) |
| 50 | SHIM, HINGE |
| 51 | WCI G490004-02 |
