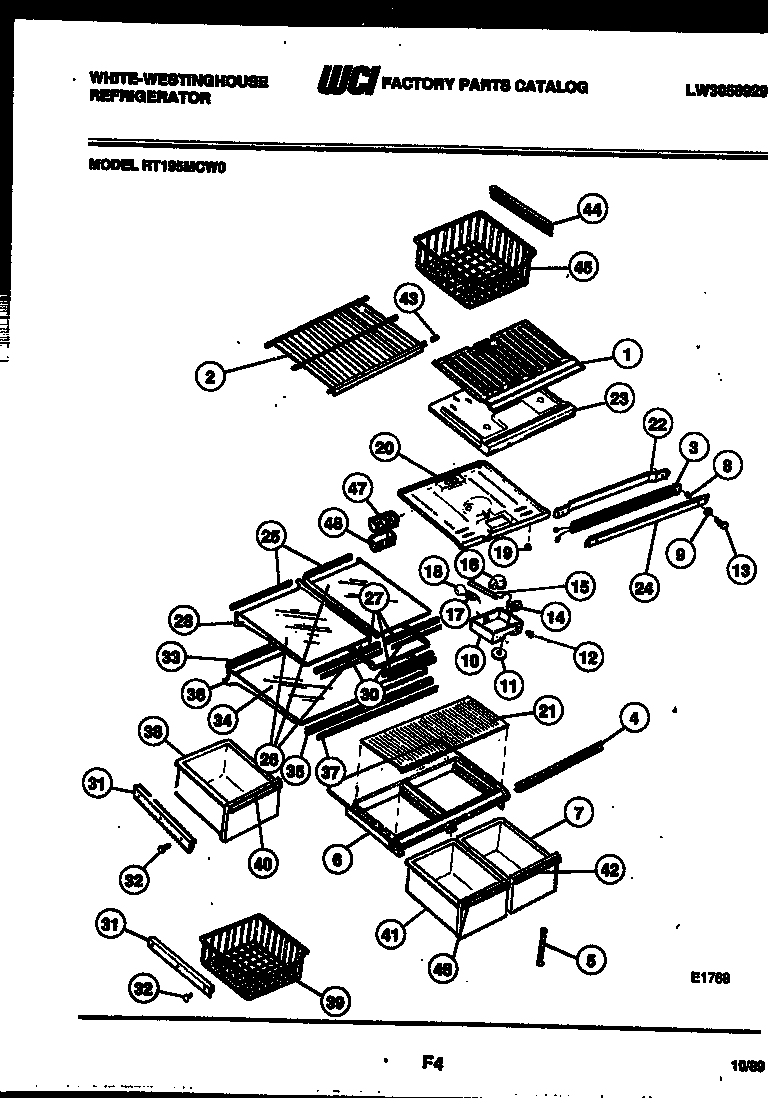

RT195MCV0 04 – SHELVES AND SUPPORTS

RT195MCV0 04 – SHELVES AND SUPPORTS

Written by

in

RT195MCV0 04 – SHELVES AND SUPPORTS

Products

PositionProduct
*24671RACK – HANGING – EGG
*24671CLIP, SHELF (8)
1BOTTOM PANEL-FREEZER
2C5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
2WCI 5303206608
2ATRIM-FRZR SHELF
2B5304509705 Frigidaire Refrigerator Grommet
3WCI 3018916
4WCI 5303206540
5SUPPORT-ADJ CRISPER COVER
6COVER – CRISPER
6AWCI 3200329
7WCI 5303206534
8SPACER (NON-ILLUSTRATED)
9WASHER (2)
10WCI 3206130
10A5304455650 Frigidaire Refrigerator Screw
11KNOB-TEMP CONTROL
12WCI 3206129
13WCI 08012258
14CONTROL-TEMPERATURE
14AWCI G107080
15WCI 3018891
16215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
16A5304455649 Frigidaire Refrigerator Screw
17218906802 Frigidaire Light Lamp Socket
18316538904 Frigidaire Oven Lamp Light
195309918806 Frigidaire Refrigerator Light Switch Door
20TOP – REFRIGERATOR
20ASCREW (5)
21INSERT-CRISPER CVR, GLASS
22WCI 08010008
23AWCI 3018900
23B3205266 Frigidaire Refrigerator Edge Protector
23DIVIDER-FOAM
24MULLION-AVOC
25ATRIM – REAR SHELF RETAINER – MK & BASKET SHELF (2)
25WCI 5303206844
26GLASS – MK & BASKET SHELF (2)
26AWCI 5303206845
27RETAINER-MEAT SHELF
28AWCI 3200318
28WCI 3200328
30AWCI 5303206846
30TRIM – MK & BASKET SHELF (2)
31AWCI 3018890
31HANGER-LH (NON-ILLUSTRATED)
32WCI 08014528
33WCI 5303206611
34ARAIL-GLASS SUPT (2) (NON-ILLUSTRATED)
34SHELF-GLASS, FULL SHELF, (3)
35WCI 3200321
36FRAME-FULL SHELF, CANTILEVER, (2)
37WCI 5303206613
38WCI 5303206542
39WCI 5303206543
40WCI 5303206541
41PAN – CRISPER – LH
42TRIM-CRISPER PAN-RH
43END CAP-SHELF,PROTECTOR
44WCI 5303206521
44AHANGER-BASKET, LH (NON-ILLUSTRATED)
45BASKET-SLIDING, FULL-WIDTH, FRZR
46TRIM-CRISPER PAN-LH
47WCI 3204206
48WCI G162178
