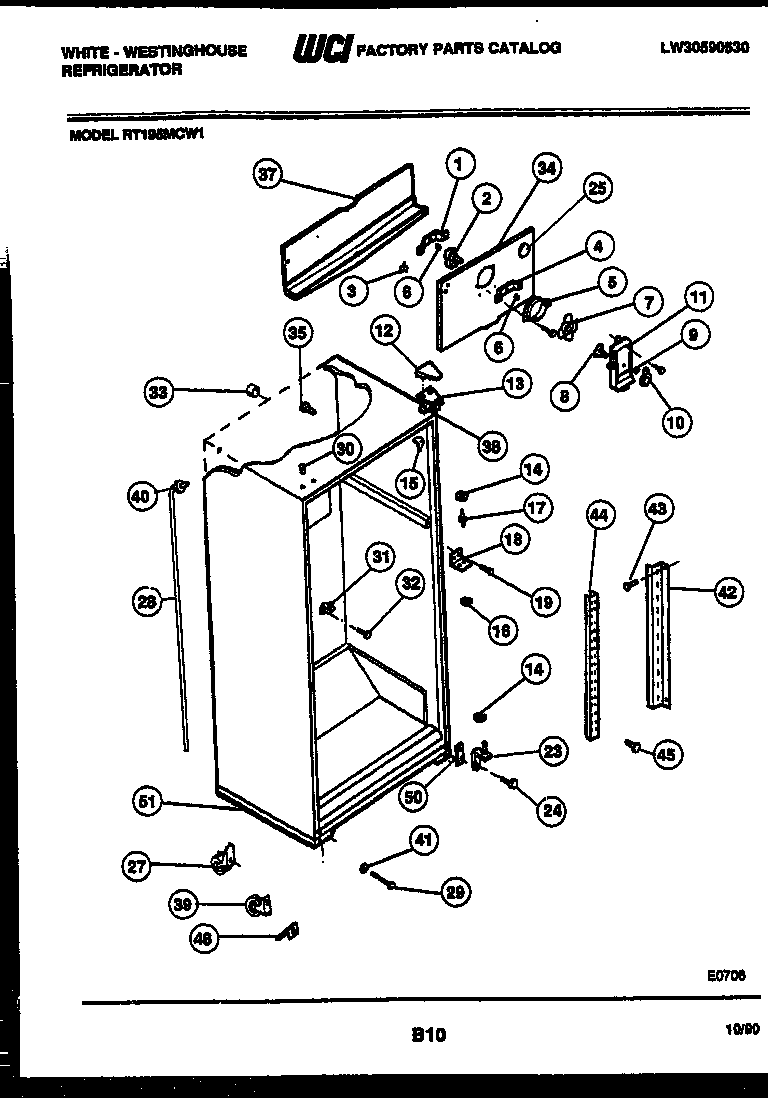

RT195MCV1 03 – CABINET PARTS

Products

PositionProduct
*31744TAPPING PLATE, GUSSET, LH (NOT ILLUSTRATED)
*31744WCI 5303001287
*31744TAPPING PLATE, GUSSET, RH (NOT ILLUSTRATED)
*31744WCI 5303001286
*31744PLUG, BUTTON, CABINET LINER (NI)
*31744TAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
1BRACKET-MOTOR MTG, REAR
2WCI 530158289
3WCI 5308000107
4WCI 5303205118
5A218843801 Frigidaire Refrigerator Screw
5RING-FAN ORIFICE
6WCI 530157666
75308000010 Frigidaire Refrigerator Evaporator Fan Blade
8DAMPER-FAN COVER
9Nut,push-on
10WCI 3206381
11BLABEL – FAN COVER (NON-ILLUSTRATED)
11WCI 3206318
12COVER-HINGE-AVOCADO
13BRACKET-UPPER HINGE
14WASHER, .34 X .62 X .05, NYLON
15CORNER
16WCI 5308000186
17WCI 5308000184
18BRACKET-CTR HINGE
19WCI 08012258
23BRACKET-LOWER HINGE, W/ HINGE PIN
24241710601 Frigidaire Refrigerator Screw
255303208309 Frigidaire Refrigerator Plug Hole
27WCI 5308009773
27ABOLT-ROLLER MTG, HEX WASHER HEAD, 1/4-28 X 1/2, (2)
28A5304455651 Frigidaire Refrigerator Screw
28WCI 5303210377
29WCI 5303212598
30BUTTON-HINGE-AVOCADO
31WCI 5308000056
32WCI 5303001361
33TUBE-RUBBER
34WCI 5308009771
34BNUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
34A5304455650 Frigidaire Refrigerator Screw
35SUPPORT-COIL COVER
37WCI 5303001470
38SHIM – UPPER HINGE
39WCI 5303212490
40WCI 5303207353
41WCI 5308011326
42CHANNEL, RH & LH
435304455852 Frigidaire Refrigerator Screw
44WCI 5303015409
45WCI 5308016568
48WCI 5308009790
50WCI 5303212488
51WCI 5303212487
