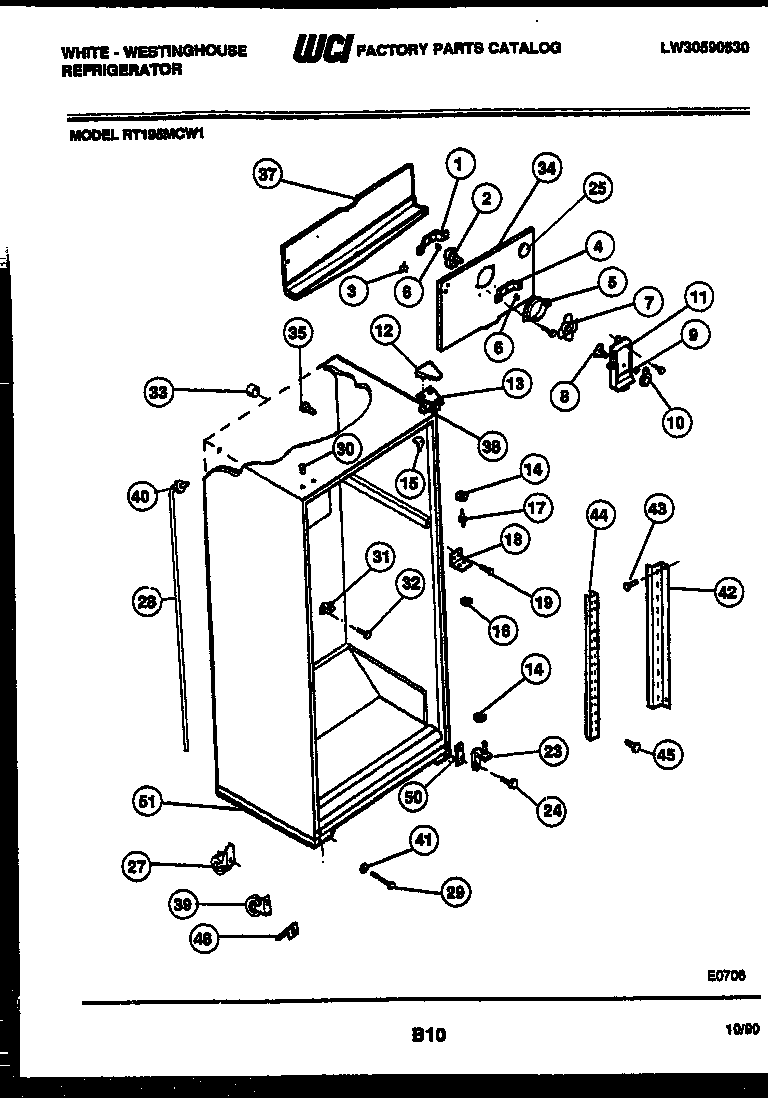

RT195MCW1 03 – CABINET PARTS

Products

Position	Product
*31744	PLUG, BUTTON, CABINET LINER (NI)
*31744	TAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
*31744	WCI 5303001286
*31744	WCI 5303001287
*31744	TAPPING PLATE, GUSSET, RH (NOT ILLUSTRATED)
*31744	TAPPING PLATE, GUSSET, LH (NOT ILLUSTRATED)
1	BRACKET-MOTOR MTG, REAR
2	WCI 530158289
3	WCI 5308000107
4	WCI 5303205118
5	RING-FAN ORIFICE
5A	218843801 Frigidaire Refrigerator Screw
6	WCI 530157666
7	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
8	DAMPER-FAN COVER
9	Nut,push-on
10	WCI 3206381
11B	LABEL – FAN COVER (NON-ILLUSTRATED)
11	WCI 3206318
12	COVER-UPPER HINGE, WHITE
13	BRACKET-UPPER HINGE
14	WASHER, .34 X .62 X .05, NYLON
15	TRIM-CABINET CORNER, WHITE
16	WCI 5308000186
17	WCI 5308000184
18	BRACKET-CTR HINGE
19	WCI 08012258
23	BRACKET-LOWER HINGE, W/ HINGE PIN
24	241710601 Frigidaire Refrigerator Screw
25	5303208309 Frigidaire Refrigerator Plug Hole
27A	BOLT-ROLLER MTG, HEX WASHER HEAD, 1/4-28 X 1/2, (2)
27	WCI 5308009773
28A	5304455651 Frigidaire Refrigerator Screw
28	WCI 5303210377
29	WCI 5303212598
30	PLUG-BUTTON, WHITE
31	WCI 5308000056
32	WCI 5303001361
33	TUBE-RUBBER
34B	NUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
34	WCI 5308009771
34A	5304455650 Frigidaire Refrigerator Screw
35	SUPPORT-COIL COVER
37	WCI 5303001470
38	SHIM – UPPER HINGE
39	WCI 5303212490
40	WCI 5303207353
41	WCI 5308011326
42	CHANNEL, RH & LH
43	5304455852 Frigidaire Refrigerator Screw
44	WCI 5303015409
45	WCI 5308016568
48	WCI 5308009790
50	WCI 5303212488
51	WCI 5303212487
