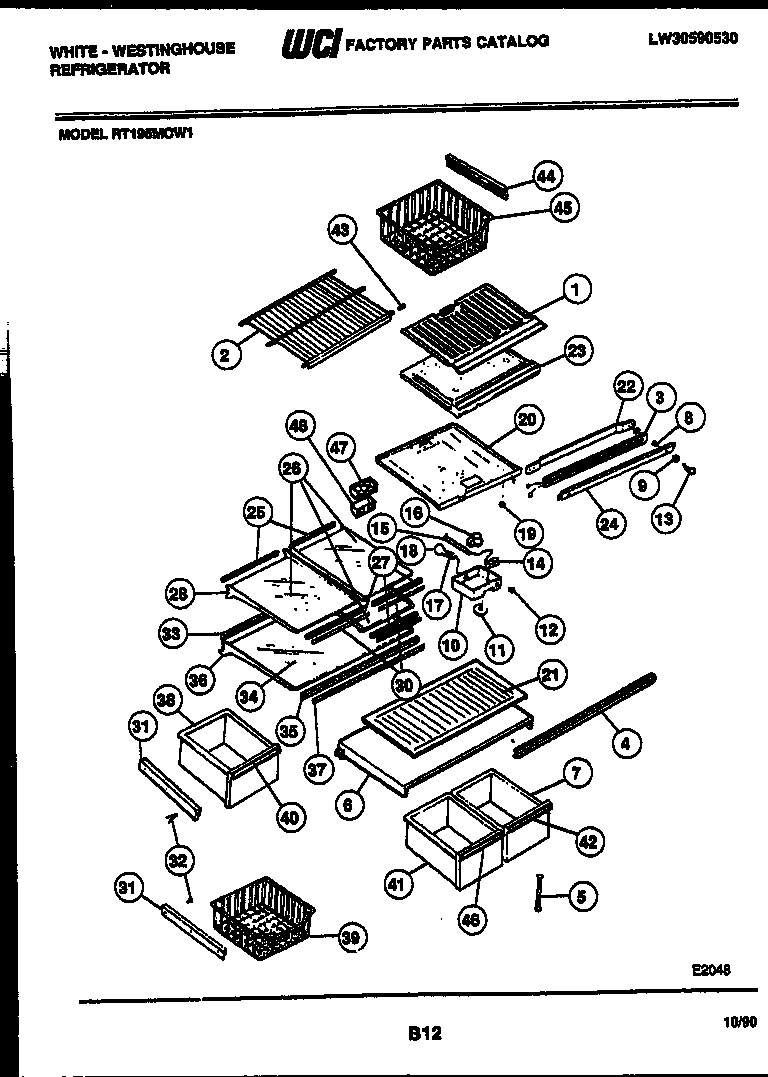

RT195MCW1 04 – SHELVES AND SUPPORTS

RT195MCW1 04 – SHELVES AND SUPPORTS

Written by

in

RT195MCW1 04 – SHELVES AND SUPPORTS

Products

PositionProduct
*31753CLIP-CANTILEVER SHLF
*31753RACK – HANGING – EGG
1WCI 5303211427
2B5304509705 Frigidaire Refrigerator Grommet
2C5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
2WCI 5303206608
2ATRIM-FRZR SHELF
3WCI 5303210351
4WCI 5303206540
5SUPPORT-CRISPER CVR, ADJUSTABLE
6COVER – CRISPER
6AGASKET-CRISPER COVER (NON-ILLUSTRATED)
7WCI 5303206534
8SPACER-MULLION MTG, STEEL
9WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
10WCI 3206130
10A5304455650 Frigidaire Refrigerator Screw
11WCI 5303201777
12WCI 3206129
13WCI 08012258
14WCI 5303018894
14AWCI 5303001260
15WCI 3018891
16215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
16A5304455649 Frigidaire Refrigerator Screw
17218906802 Frigidaire Light Lamp Socket
18316538904 Frigidaire Oven Lamp Light
195309918806 Frigidaire Refrigerator Light Switch Door
20TOP – REFRIGERATOR
20AWCI 5303001380
21INSERT-CRISPER CVR, GLASS
22WCI 5308010008
23AWCI 3018900
23B3205266 Frigidaire Refrigerator Edge Protector
23DIVIDER-FOAM
24WCI 5303200366
25TRIM – REAR SHELF RETAINER – MK & BASKET SHELF (2)
25WCI 5303206844
26GLASS – MK & BASKET SHELF (2)
26WCI 5303206845
27RETAINER-MEAT SHELF
28WCI 3200328
28AWCI 3200318
30TRIM – MK & BASKET SHELF (2)
30AWCI 5303206846
31HANGER-PAN LH
31AHANGER-PAN RH (NON-ILLUSTRATED)
32WCI 08014528
33WCI 5303206611
34SHELF-GLASS, FULL SHELF, (3)
34ARAIL-GLASS SUPT (2) (NON-ILLUSTRATED)
35WCI 3200321
36FRAME-FULL SHELF, CANTILEVER, (2)
37WCI 5303206613
38WCI 5303206542
39WCI 5303206543
40WCI 5303206541
41PAN – CRISPER – LH
42TRIM-CRISPER PAN-RH
43END CAP-SHELF,PROTECTOR
44AHANGER-BASKET, LH (NON-ILLUSTRATED)
44WCI 5303206521
45BASKET-SLIDING, FULL-WIDTH, FRZR
46TRIM-CRISPER PAN-LH
47WCI 3204206
48COVER – AIR DEFLECTOR
