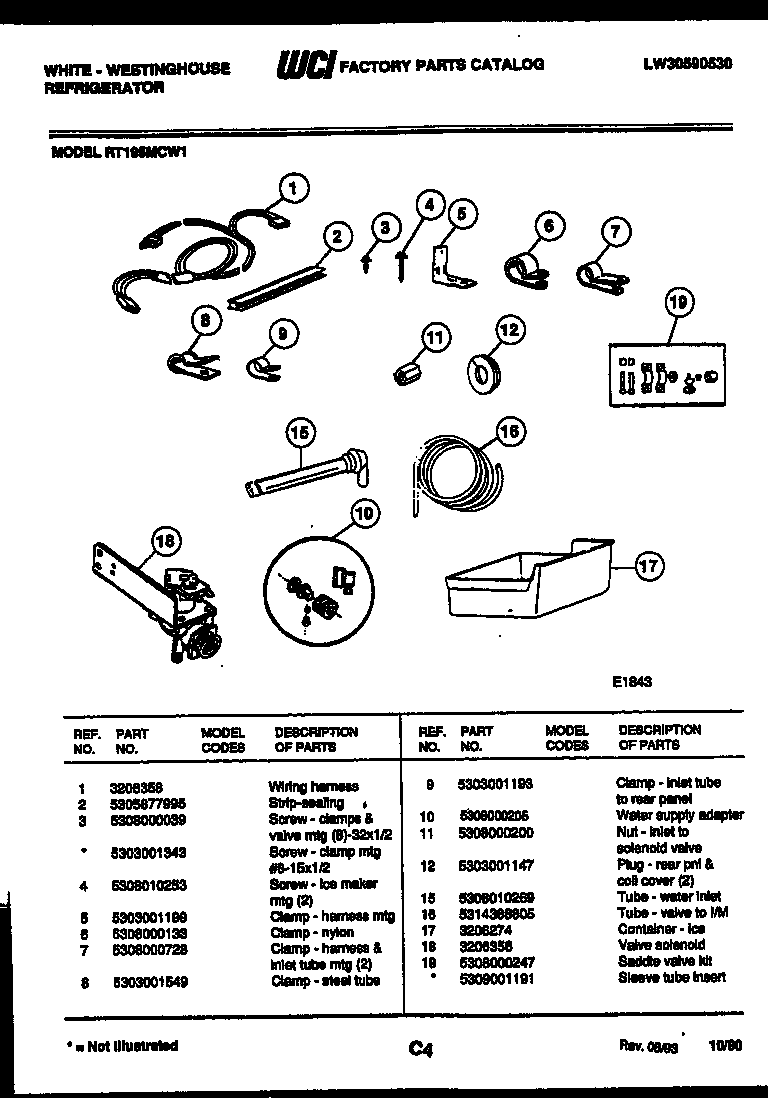

RT195MCW1 07 – ICE MAKER INSTALLATION PARTS

RT195MCW1 07 – ICE MAKER INSTALLATION PARTS

Written by

in

RT195MCW1 07 – ICE MAKER INSTALLATION PARTS

Products

PositionProduct
*31774WCI 5309001191
1HARNESS-WIRING, ICE MAKER
25305877995 Frigidaire Refrigerator P-1 Sealing Strip
3A5304455651 Frigidaire Refrigerator Screw
35308000039 Frigidaire Refrigerator Screw
45304455852 Frigidaire Refrigerator Screw
55303001199 Frigidaire Refrigerator Wiring Harness Clamp
65308000133 Frigidaire Refrigerator Clamp
7WCI 5308000728
85304455846 Frigidaire Refrigerator Clamp
95303001193 Frigidaire Refrigerator Clamp
10WCI 5308000205
11NUT, 7/16 X 20, NYLON
125303001147 Frigidaire Refrigerator Plug-Harness Hole
15215456100 Frigidaire Refrigerator Water Inlet Tube
165308010366 Frigidaire Refrigerator P1-Water Inlet Tube
175303212918 Frigidaire Refrigerator Cont
18VALVE-WATER
19WCI 5308000247
