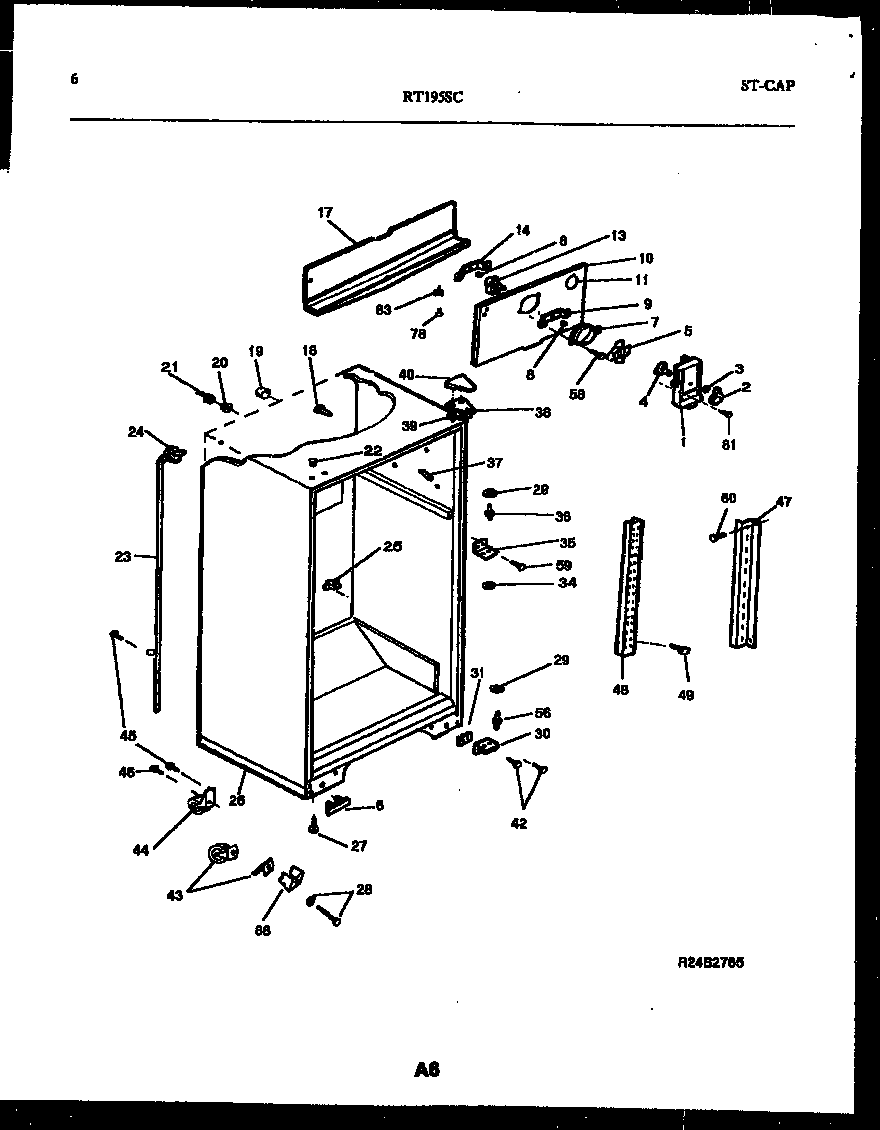

RT195SCF0 04 – CABINET PARTS

Products

Position	Product
*67545	PLUG, BUTTON, CABINET LINER (NI)
35	BRACKET-CTR HINGE
36	WCI 5308000184
37	WCI 5303202339
38B	TAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
38	BRACKET-UPPER HINGE
39	SHIM – UPPER HINGE
40	WCI 5303001666
42	241710601 Frigidaire Refrigerator Screw
43	WCI 5308009790
43	WCI 5308009760
44	WCI 5308009773
45	5304455651 Frigidaire Refrigerator Screw
46	BOLT-ROLLER MTG, HEX WASHER HEAD, 1/4-28 X 1/2, (2)
47	CHANNEL, RH & LH
48	WCI 3916030
49	WCI 5308016568
56	5303001321 Frigidaire Refrigerator Lower Hinge Pin
59	WCI 5308012258
60	5304455852 Frigidaire Refrigerator Screw
81	5304455650 Frigidaire Refrigerator Screw
83	WCI 5308000107
88	SUPPORT, BASE (2)
