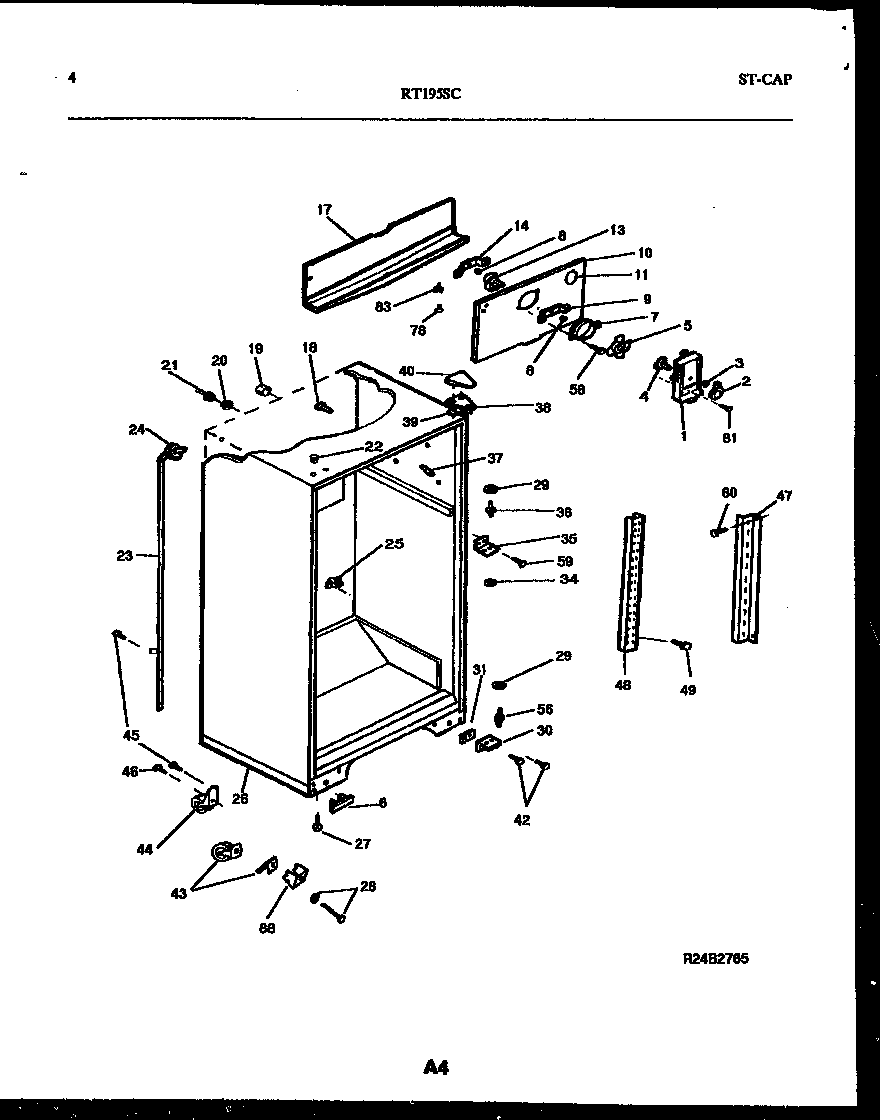

RT195SCW0 03 – CABINET PARTS

Products

Position	Product
1	WCI 5303277008
2	WCI 5308000081
3	Nut,push-on
4	DAMPER-FAN COVER
5	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
6	COVER-HOLE, LOWER HINGE
7	RING-FAN ORIFICE
8	G187559 Frigidaire Refrigerator Bushing
9	WCI 5303205118
10	WCI 6308009771
10A	WCI 5303209636
10B	NUT, ``U`` TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
11	5303208309 Frigidaire Refrigerator Plug Hole
13	5300158289 Frigidaire Evaporator Fan Motor
14	BRACKET-MOTOR MTG, REAR
17	WCI 5303001470
18	SUPPORT-COIL COVER
19	TUBE-RUBBER
20	WCI 5303001286
21	WCI 5303001287
22	PLUG-BUTTON, WHITE
23	WCI 5303210377
24	WCI 5303207353
25A	WCI 5303001361
25	WCI 5308000056
26	CABINET BASE
27A	WCI 5308003584
27	SCREW-LEVELING (4)
28	BOLT-ROLLER ADJ, (2) (NON-ILLUSTRATED)
28	WCI 5308011326
29	WASHER, .34 X .62 X .05, NYLON
30	HINGE BRACKET - BOTTOM
31	SHIM-LOWER HINGE
34	WCI 5308000186
