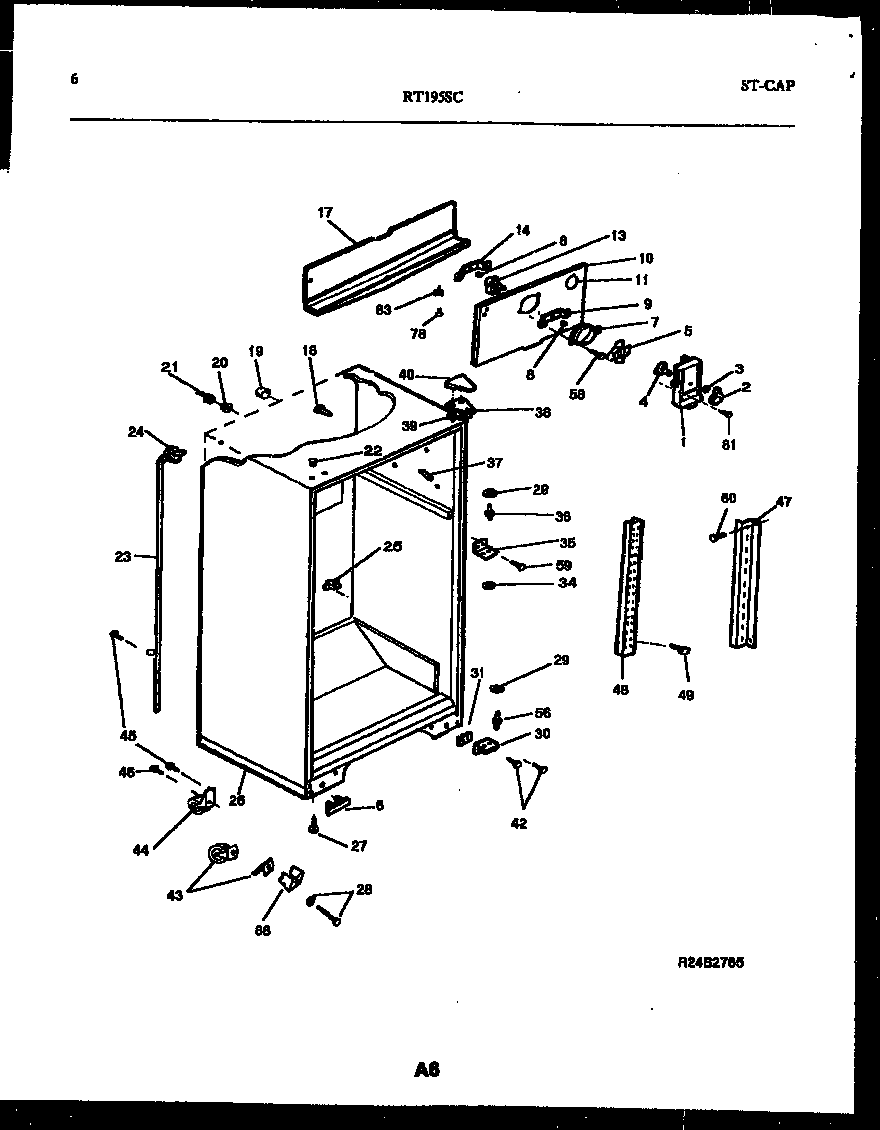

RT195SCW0 04 – CABINET PARTSadmin2025-04-26T10:20:23+00:00RT195SCW0 04 – CABINET PARTS
Products
| Position | Product |
|---|
| *67545 | PLUG, BUTTON, CABINET LINER (NI) |
| 35 | BRACKET-CTR HINGE |
| 36 | WCI 5308000184 |
| 37 | TRIM-CABINET CORNER, WHITE |
| 38 | BRACKET-UPPER HINGE |
| 38B | TAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED) |
| 39 | SHIM - UPPER HINGE |
| 40 | COVER-UPPER HINGE, WHITE |
| 42 | 241710601 Frigidaire Refrigerator Screw |
| 43 | WCI 5308009790 |
| 43 | WCI 5308009760 |
| 44 | WCI 5308009773 |
| 45 | 5304455651 Frigidaire Refrigerator Screw |
| 46 | BOLT-ROLLER MTG, HEX WASHER HEAD, 1/4-28 X 1/2, (2) |
| 47 | CHANNEL, RH & LH |
| 48 | WCI 3916030 |
| 49 | WCI 5308016568 |
| 56 | 5303001321 Frigidaire Refrigerator Lower Hinge Pin |
| 59 | WCI 5308012258 |
| 60 | 5304455852 Frigidaire Refrigerator Screw |
| 81 | 5304455650 Frigidaire Refrigerator Screw |
| 83 | WCI 5308000107 |
| 88 | SUPPORT, BASE (2) |
