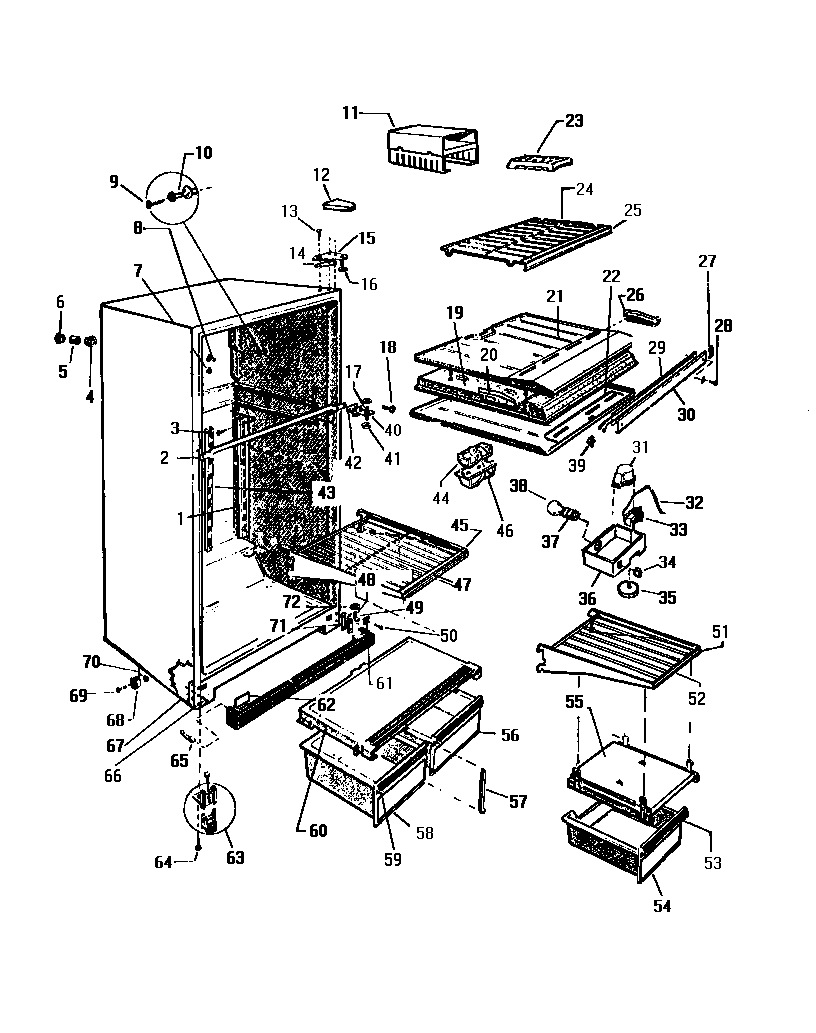

RT196GCF2 03 – CABINET, SHELVES, DIVIDER

Products

Position	Product
*81487	WCI G180108-02
*81486	TOE GRILL
1	CHANNEL, SHELF (2)
3	5304455650 Frigidaire Refrigerator Screw
4	WCI G174733
5	TUBE, INSULATION (2)
6	WCI G174734
7	BUTTON, PLUG, ICE MAKER AND FREEZER SHELF MOUNTING HOLES
8	WCI G163669
9	SCREW – SUPPORT TO LINER (8)
10	SUPPORT, SHELF (8)
11	ICE TRAY COMPT
13	241710601 Frigidaire Refrigerator Screw
14	SHIM
15	HINGE, RT SD/ L.SD
16	WASHER, NYLON
17	WCI G142220
18	SCREW, BRACKET MOUNTING (4)
19	DIVIDER-STYRO
20	WCI G162177
21	DIVIDER-BTM
22	DIVIDER-TOP
23	WCI C74025
24	WCI G177415-02
26	WCI G162176
27	STRAP, MULLION MOUNTING
29	WCI G177254
30	MULLION-COFE
31	215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
32	TUBE
33	COLD CONTROL
34	SWITCH
35	KNOB
36	WCI G176722-01
37	WCI G163802
38	WCI Q63749
39	5309918806 Frigidaire Refrigerator Light Switch Door
40	WCI G162384
42	SHIM, HINGE
43	CHANNEL, CENTER SHELF, MOUNTING
44	DEFLECTOR AIR
46	WCI G162178
47	WCI G180195-02
49	BRACKET-LOWER HINGE
50	SCREW
51	TRIM, SHELF, CUT TO SIZE
52	HALF SHELF WIRE (3)
54	PAN, MEAT
55	WCI G177106-04
56	PAN, FRUIT
57	WCI G166310-01
58	PAN, CRISPER
59	WCI G177343-06
60	WCI G162840-01
61	NUT, SPEED (2)
62	PLUG – LOWER GRILLE
63	ROLLER ASSEMBLY – FRONT (2)
64	BOLT, HOUSING TO FRONT RAIL (2)
65	WCI G162994
66	WCI G142361
67	TAPPING PLATE (2)
68	ROLLER (2)
69	WCI G162809
70	NUT, DAMPER MOUNTING
71	SHIM, HINGE
72	WASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
