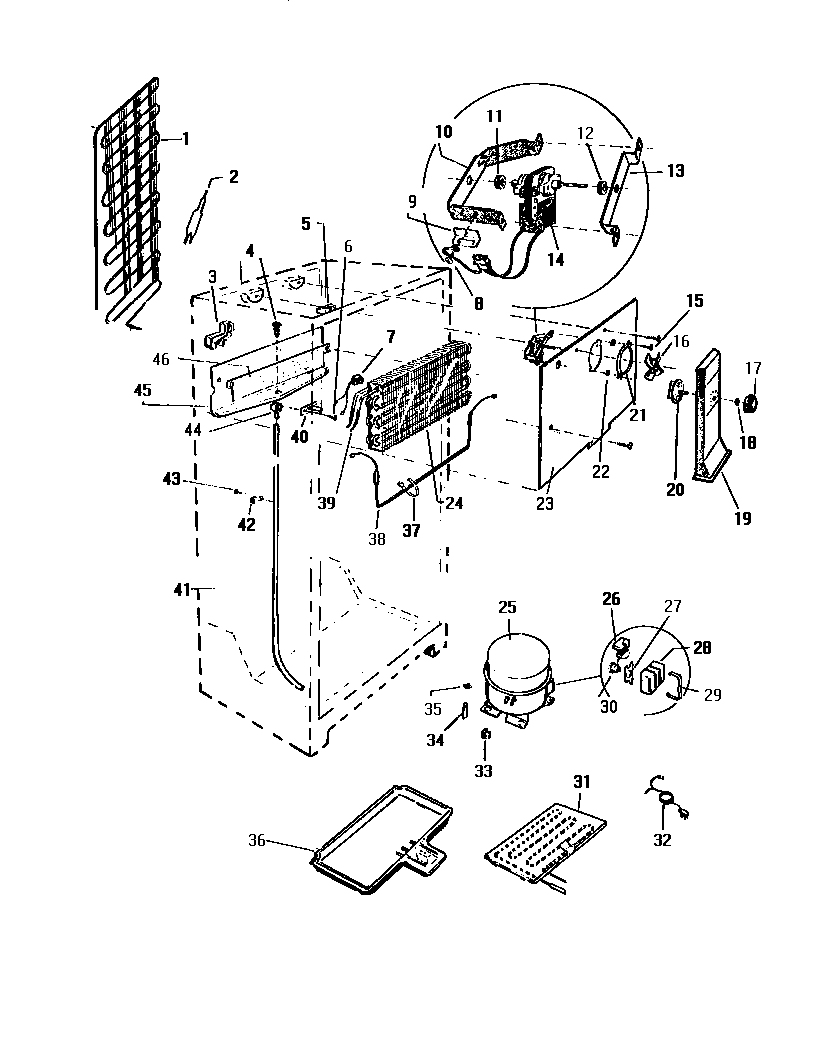

RT196GCW3 04 – EVAPORATOR, FAN ASSY.

Products

Position	Product
1A	WCI G176210
1	CONDENSER
2A	WCI R900125
2	DRIER-REGULAR
3	TROUGH
4	WCI G101620
5	WCI G163099
7	5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
9	WCI G164571
10	BRACKET, REAR MOTOR MOUNTING
12	G187559 Frigidaire Refrigerator Bushing
13	BRACKET, FRONT MOTOR MOUNTING
14	5300158289 Frigidaire Evaporator Fan Motor
16	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
17A	LABEL-FAN CVR
17	WCI G162663-13
18	NUT, DAMPER MOUNTING
19	WCI G179793-02
20	DAMPER FAN COVER
21	RING, FAN ORIFICE
22	WCI G162701
23	WCI G162050-02
24	EVAPORATOR
26	WCI G150618-26
27	RETAINER
28	COVER
29	5303006412 Frigidaire Refrigerator Cover Mounting Strap
30	WCI G176981
31	DEFROST PLATE (NON-ILLUSTRATED)
32	CORD, SERVICE
33	218513300 Frigidaire Refrigerator Compressor Mount Grommet
34	SLEEVE COMP MTG (3)
35	WASHER, COMPRESSOR MOUNTING (4)
36	PAN, DEFROST
37	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
38	5317842502 Frigidaire Defrost Heater
39A	HEAT EXCHANGER REPAIR KIT
39	EXCHANGER-HEAT
40	SPOUT DRAIN TUBE
41	WCI G155529-04
42	WCI G101747
43	WCI Q401601
44	ELBOW, DRAIN
45	WCI G170071
46	INSULATOR
