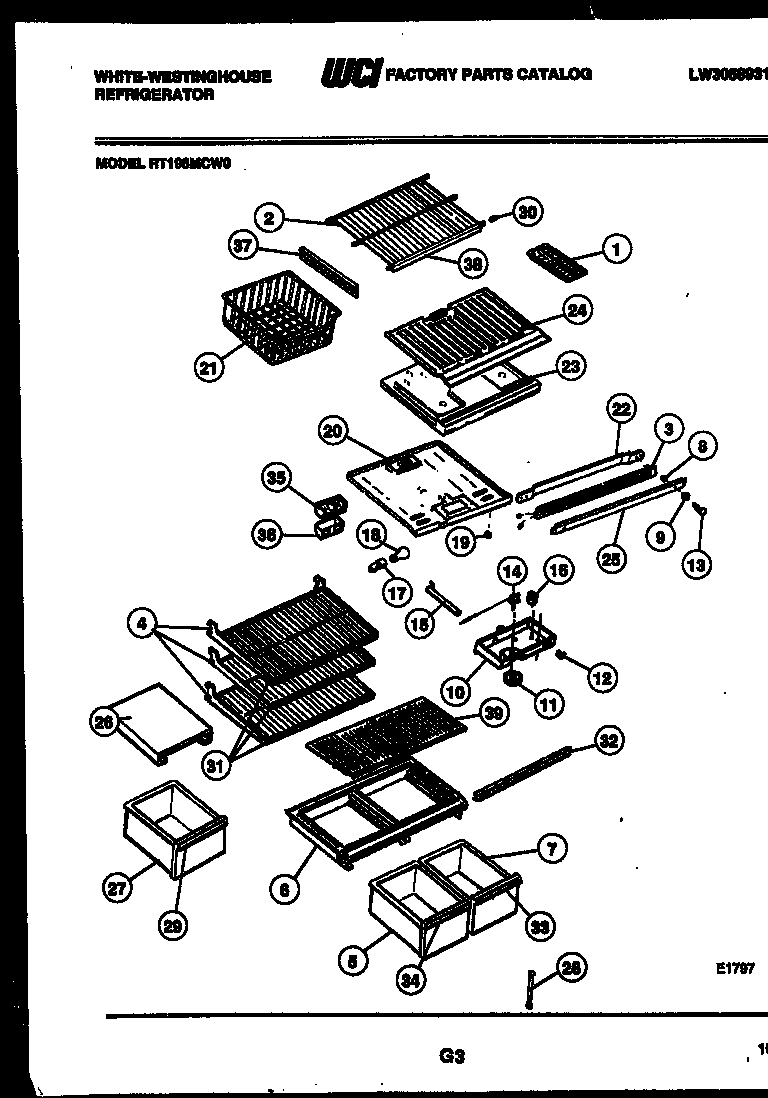

RT196MCD0 04 – SHELVES AND SUPPORTS

Products

Position	Product
*24771	WCI 08009824
*24771	RACK - HANGING - EGG
*24771	WCI 5303206525
*24771	5304455852 Frigidaire Refrigerator Screw
1	TRAY-ICE (2)
2	WCI 5303206608
2A	5304509705 Frigidaire Refrigerator Grommet
2B	5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
3	WCI 3018916
4A	CLIP, SHELF (8)
4	WCI 3018981
5	PAN - CRISPER - LH
6	COVER - CRISPER
6A	WCI 3200329
7	WCI 5303206534
8	SPACER (NON-ILLUSTRATED)
9	WASHER (2)
10A	5304455650 Frigidaire Refrigerator Screw
10	WCI 3206130
11	KNOB-TEMP CONTROL
12	WCI 3206129
13	WCI 08012258
14	CONTROL-TEMPERATURE
14A	WCI G107080
15	WCI 3018891
16A	5304455649 Frigidaire Refrigerator Screw
16	215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
17	218906802 Frigidaire Light Lamp Socket
18	316538904 Frigidaire Oven Lamp Light
19	5309918806 Frigidaire Refrigerator Light Switch Door
20	TOP - REFRIGERATOR
20A	SCREW (5)
21	BASKET-SLIDING, FULL-WIDTH, FRZR
22	WCI 08010008
23B	3205266 Frigidaire Refrigerator Edge Protector
23A	WCI 3018900
23	DIVIDER-FOAM
24	BOTTOM PANEL-FREEZER
25	WCI 3200370
26	WCI 5303206773
27	WCI 5303206542
28	SUPPORT-ADJ CRISPER COVER
29	WCI 5303206541
30	END CAP-SHELF,PROTECTOR
31	WCI 5303206891
32	WCI 5303206540
33	TRIM-CRISPER PAN-RH
34	TRIM-CRISPER PAN-LH
35	WCI 3204206
36	WCI 3001546
37A	HANGER-BASKET, LH (NON-ILLUSTRATED)
37	WCI 5303206521
38	TRIM-FRZR SHELF
39	INSERT-CRISPER CVR, GLASS
