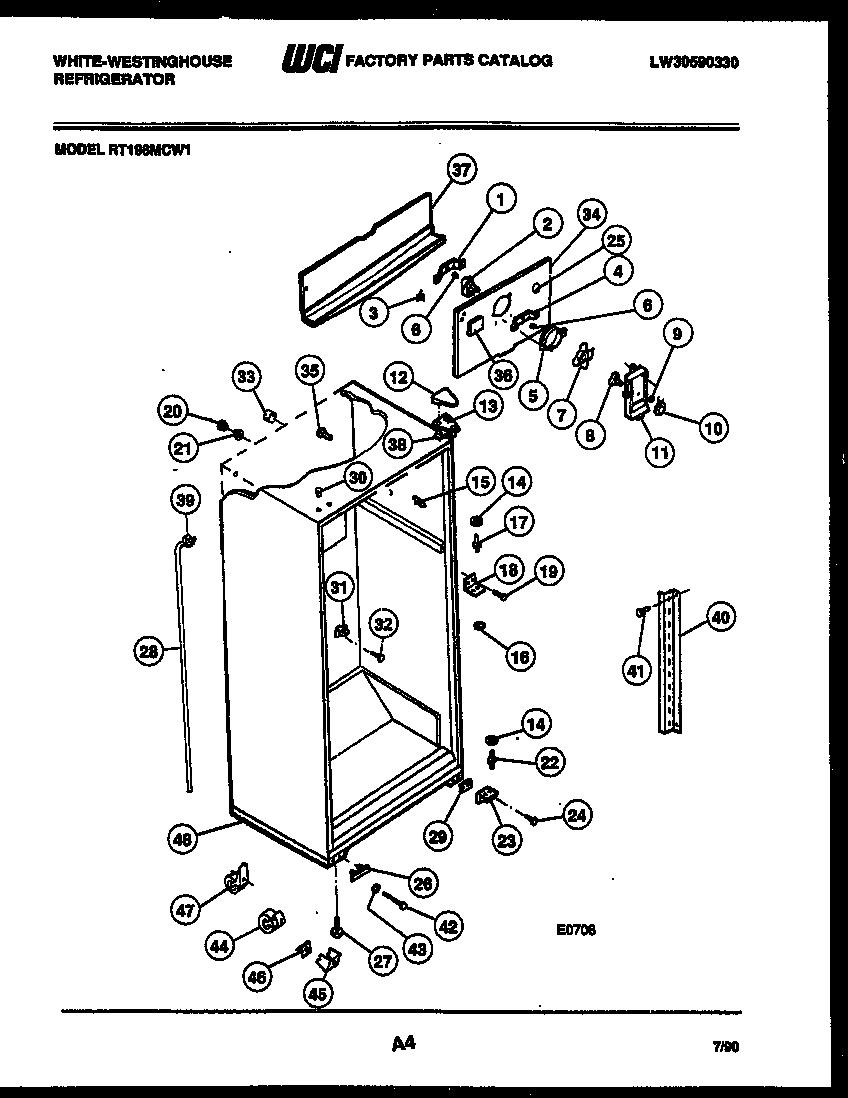

RT196MCD1 03 – CABINET PARTS

RT196MCD1 03 – CABINET PARTS

Written by

in

RT196MCD1 03 – CABINET PARTS

Products

PositionProduct
*31576PLUG, BUTTON, CABINET LINER (NI)
*31576TAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
1BRACKET-MOTOR MTG, REAR
25300158289 Frigidaire Evaporator Fan Motor
3WCI 5308000107
4WCI 5303001226
5A218843801 Frigidaire Refrigerator Screw
5RING-FAN ORIFICE
6G187559 Frigidaire Refrigerator Bushing
75308000010 Frigidaire Refrigerator Evaporator Fan Blade
8DAMPER-FAN COVER
9Nut,push-on
10WCI 3206109
11WCI 3206318
11BLABEL – FAN COVER (NON-ILLUSTRATED)
12COVER-UPPER HINGE, ALMOND
13BRACKET-UPPER HINGE
14WASHER, .34 X .62 X .05, NYLON
15TRIM-CABINET CORNER, ALMOND
16WCI 5308000186
17WCI 5308000184
18BRACKET-CTR HINGE
19WCI 5308012258
20WCI 5303001287
21WCI 5303001286
225303001321 Frigidaire Refrigerator Lower Hinge Pin
23HINGE BRACKET – BOTTOM
24241710601 Frigidaire Refrigerator Screw
255303208309 Frigidaire Refrigerator Plug Hole
26COVER-HOLE, LOWER HINGE
27SCREW-LEVELING (4)
27AWCI 5308003584
28WCI 5303210377
29SHIM-LOWER HINGE
30PLUG-BUTTON, ALMOND, UPR HINGE HOLES
31WCI 5308000056
32WCI 5303001361
33TUBE-RUBBER
34ANUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
34WCI 5308009771
34B5304455650 Frigidaire Refrigerator Screw
35SUPPORT-COIL COVER
36PLUG-DECORATIVE, ICE MAKER HOLE
37WCI 5303001470
38SHIM – UPPER HINGE
39WCI 5303207353
40CHANNEL, RH & LH
415304455852 Frigidaire Refrigerator Screw
42BOLT-ROLLER ADJ, (2) (NON-ILLUSTRATED)
43WCI 5308011326
44WCI 5308009760
45SUPPORT, BASE (2)
46WCI 5308009790
47A5304455651 Frigidaire Refrigerator Screw
47ABOLT-ROLLER MTG, HEX WASHER HEAD, 1/4-28 X 1/2, (2)
47WCI 5308009773
48CABINET BASE
