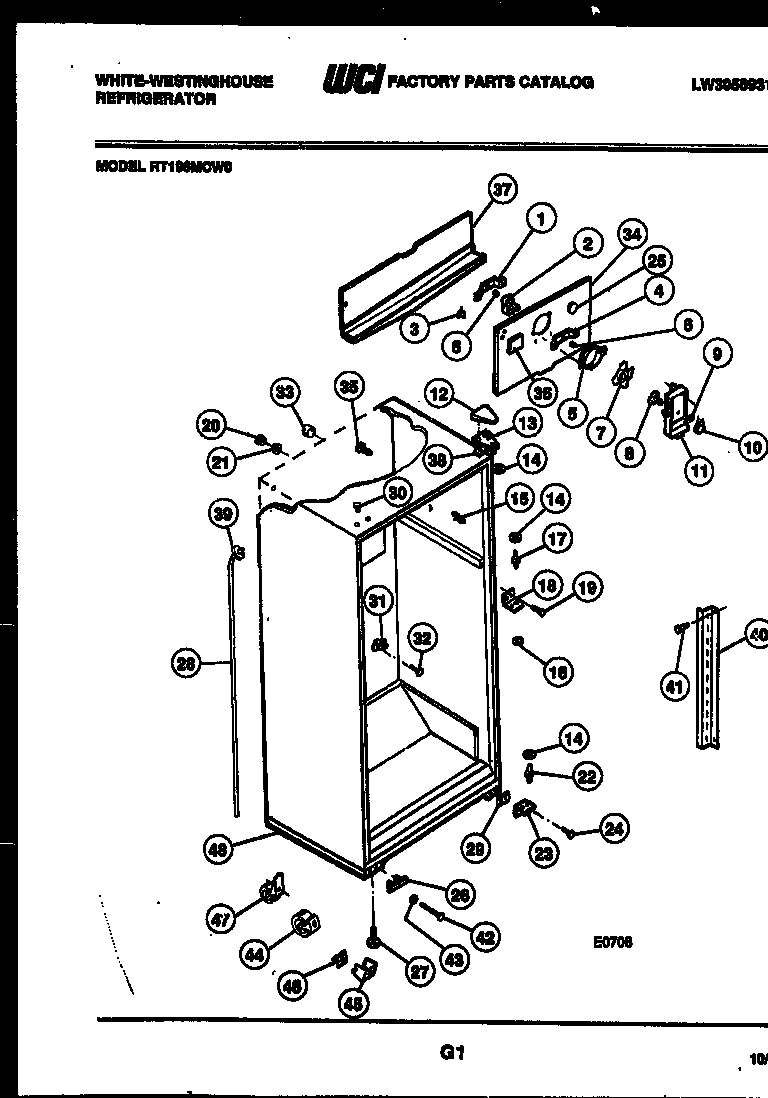

RT196MCF0 03 – CABINET PARTS

Products

Position	Product
*24766	BUTTON, LINER
*24766	TAPPING PLATE (2)
1	WCI 3205119
2	5300158289 Frigidaire Evaporator Fan Motor
3	WCI G164571
4	WCI 3205118
5	RING, FAN ORIFICE
5A	218843801 Frigidaire Refrigerator Screw
6	G187559 Frigidaire Refrigerator Bushing
7	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
8	WCI 3001331
9	NUT, DAMPER MOUNTING
10	WCI 3206109
11	WCI 3206318
11B	LABEL - FAN COVER (NON-ILLUSTRATED)
12	COVER HINGE-COFFEE
13	WCI 08012843
14	WCI G103903
15	WCI 3202339
16	WCI 3001038
17	WCI G142220
18	BRACKET, HINGE CENTER
19	WCI 08012258
20	WCI G174734
21	WCI G174733
22	5303001321 Frigidaire Refrigerator Lower Hinge Pin
23	HINGE-BRACKET-BOTTOM
24	241710601 Frigidaire Refrigerator Screw
25	PLUG-SHORT TEST HOLE (NON-ILLUSTRATED)
26	WCI 3001478
27	SCREW-LEVELING (4)
27A	WCI 08003584
28	WCI 3001458
29	SHIM-BOTTOM HINGE
30	WCI G174747-10
31	WCI 08000056
32	PIN-PUSH
33	TUBE, INSULATION (2)
34A	NUT, ORIFICE (2)
34	WCI 08009771
34B	5304455650 Frigidaire Refrigerator Screw
35	WCI G163669
36	WCI 3018193
37	DRAIN TROUGH
38	WCI G183861
39	RING, SEAL (NON-ILLUSTRATED)
40	WCI 08000302
41	5304455852 Frigidaire Refrigerator Screw
42	BOLT-ROLLER (2)
43	WASHER
44	WCI 08009760
45	WCI 08013678
46	SPRING-ROLLER (2)
47	WCI 08009773
47A	WCI 08009762
47A	5304455651 Frigidaire Refrigerator Screw
48	WCI 08010092
