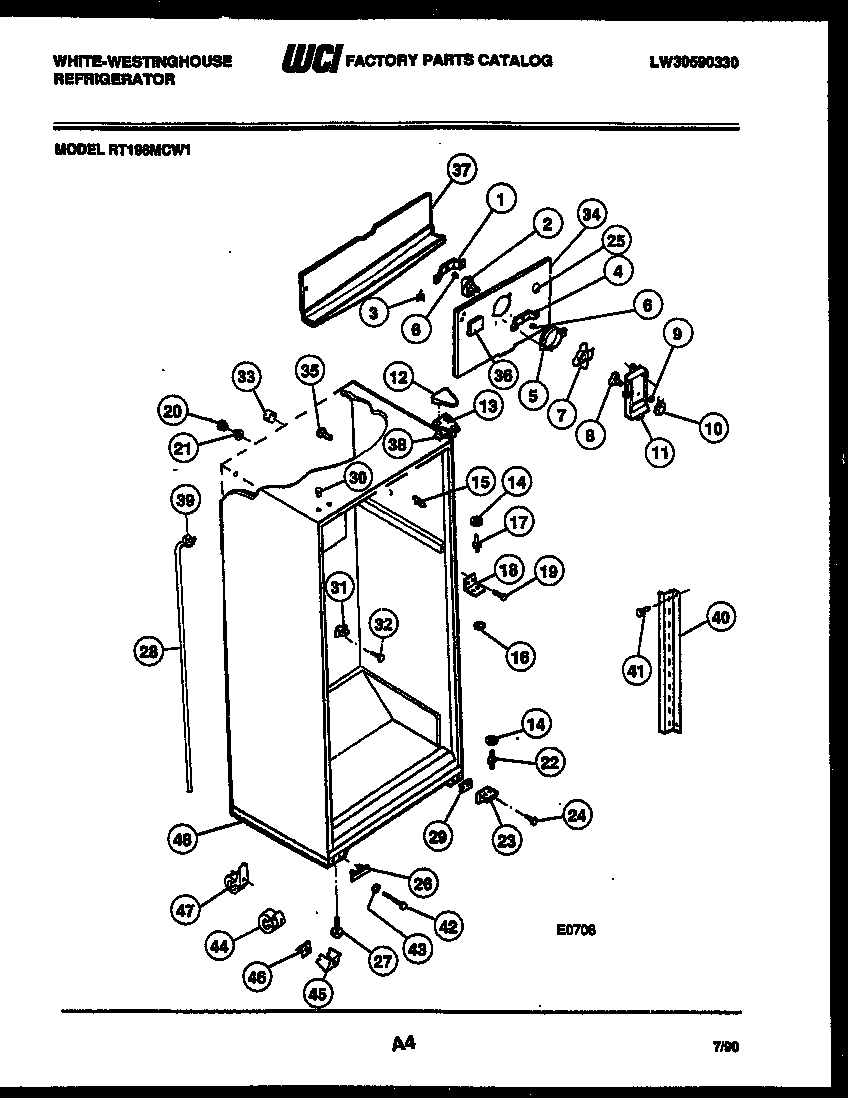

RT196MCH1 03 – CABINET PARTS

Products

Position	Product
*31576	PLUG, BUTTON, CABINET LINER (NI)
*31576	TAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
1	BRACKET-MOTOR MTG, REAR
2	5300158289 Frigidaire Evaporator Fan Motor
3	WCI 5308000107
4	WCI 5303001226
5	RING-FAN ORIFICE
5A	218843801 Frigidaire Refrigerator Screw
6	G187559 Frigidaire Refrigerator Bushing
7	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
8	DAMPER-FAN COVER
9	Nut,push-on
10	WCI 3206109
11B	LABEL – FAN COVER (NON-ILLUSTRATED)
11	WCI 3206318
12	COVER – HINGE-WHEAT
13	BRACKET-UPPER HINGE
14	WASHER, .34 X .62 X .05, NYLON
15	WCI 5303202338
16	WCI 5308000186
17	WCI 5308000184
18	BRACKET-CTR HINGE
19	WCI 5308012258
20	WCI 5303001287
21	WCI 5303001286
22	5303001321 Frigidaire Refrigerator Lower Hinge Pin
23	HINGE BRACKET – BOTTOM
24	241710601 Frigidaire Refrigerator Screw
25	5303208309 Frigidaire Refrigerator Plug Hole
26	COVER-HOLE, LOWER HINGE
27A	WCI 5308003584
27	SCREW-LEVELING (4)
28	WCI 5303210377
29	SHIM-LOWER HINGE
30	BUTTON-HINGE-WHEAT
31	WCI 5308000056
32	WCI 5303001361
33	TUBE-RUBBER
34B	5304455650 Frigidaire Refrigerator Screw
34	WCI 5308009771
34A	NUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
35	SUPPORT-COIL COVER
36	PLUG-DECORATIVE, ICE MAKER HOLE
37	WCI 5303001470
38	SHIM – UPPER HINGE
39	WCI 5303207353
40	CHANNEL, RH & LH
41	5304455852 Frigidaire Refrigerator Screw
42	BOLT-ROLLER ADJ, (2) (NON-ILLUSTRATED)
43	WCI 5308011326
44	WCI 5308009760
45	SUPPORT, BASE (2)
46	WCI 5308009790
47	WCI 5308009773
47A	BOLT-ROLLER MTG, HEX WASHER HEAD, 1/4-28 X 1/2, (2)
47A	5304455651 Frigidaire Refrigerator Screw
48	CABINET BASE
