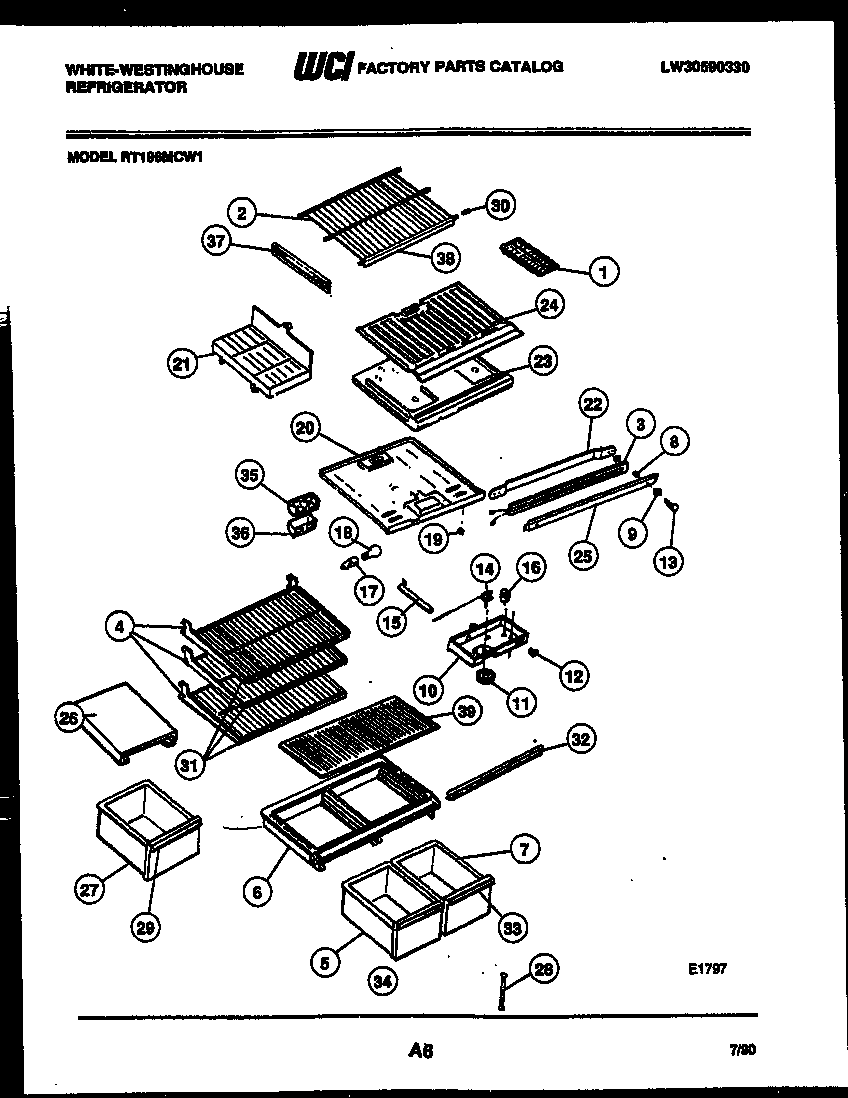

RT196MCV1 04 – SHELVES AND SUPPORTS

RT196MCV1 04 – SHELVES AND SUPPORTS

Written by

in

RT196MCV1 04 – SHELVES AND SUPPORTS

Products

PositionProduct
*31588RACK – HANGING – EGG
1215667501 Frigidaire Refrigerator Ice Tray Primary
2B5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
2WCI 5303209597
2A5304509705 Frigidaire Refrigerator Grommet
3WCI 5303210351
4WCI 3018981
5PAN – CRISPER – LH
6AGASKET-CRISPER COVER (NON-ILLUSTRATED)
6COVER – CRISPER
7WCI 5303206534
8SPACER-MULLION MTG, STEEL
9WCI 5303006754
10A5304455650 Frigidaire Refrigerator Screw
10WCI 3206130
11WCI 5303201777
12WCI 3206129
13WCI 5308012258
14AWCI 5303001260
14WCI 5303018894
15WCI 3018891
16A5304455649 Frigidaire Refrigerator Screw
16215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
17218906802 Frigidaire Light Lamp Socket
18316538904 Frigidaire Oven Lamp Light
195309918806 Frigidaire Refrigerator Light Switch Door
20AWCI 5303001380
20TOP – REFRIGERATOR
21A5304455852 Frigidaire Refrigerator Screw
21WCI 5318609501
22WCI 5308010008
23DIVIDER-FOAM
23AWCI 3018900
23B3205266 Frigidaire Refrigerator Edge Protector
24WCI 5303001505
25WCI 5303200367
26WCI 5303206773
27WCI 5303206542
28SUPPORT-CRISPER CVR, ADJUSTABLE
29WCI 5303206541
30END CAP-SHELF,PROTECTOR
31WCI 5303206891
32WCI 5303206540
33TRIM-CRISPER PAN-RH
34TRIM-CRISPER PAN-LH
35WCI 3204206
36COVER – AIR DEFLECTOR
38TRIM-FRZR SHELF
39INSERT-CRISPER CVR, GLASS
