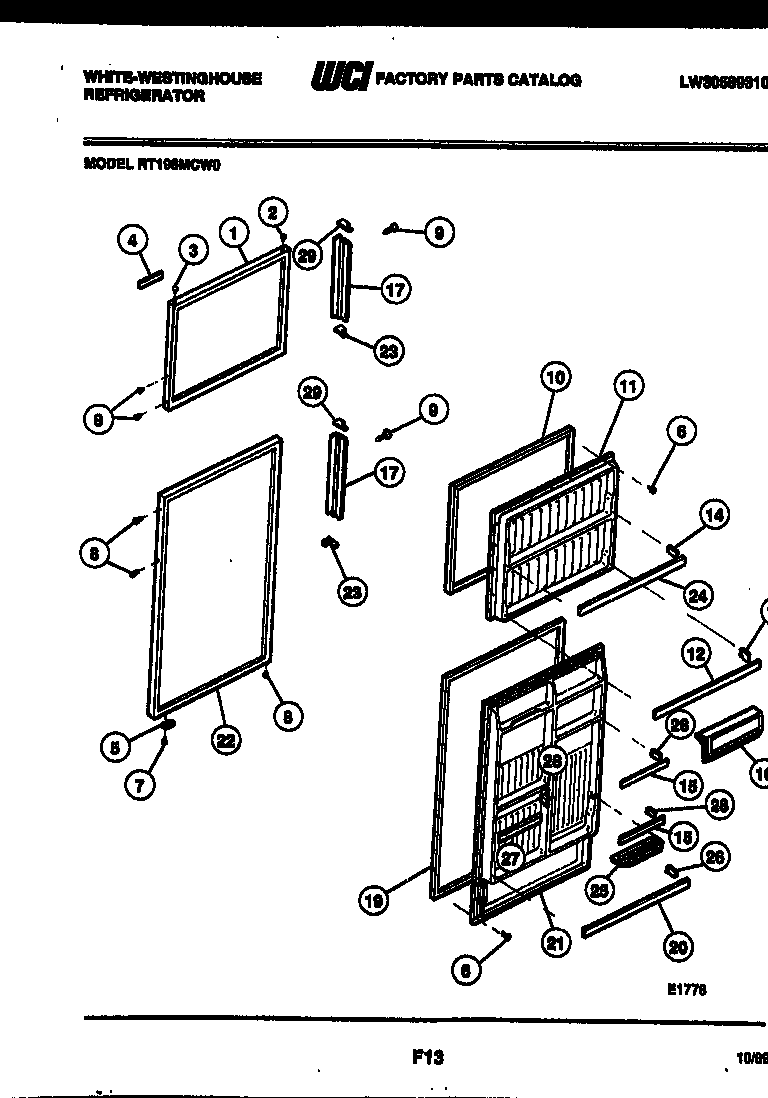

RT196MCW0 02 – DOOR PARTS

Products

Position	Product
*24761	WCI 5303206514
*24761	WCI 3206307
*24761	INSULATION-BULK
*24761	TRIM, TOP
1	WCI 3916052
2	WCI G169332-01
3	WCI 08012007
4	WCI 3206159
5	DOOR STOP (2)
6	5304455651 Frigidaire Refrigerator Screw
8	240494001 Frigidaire Refrigerator Plug Button
9	WCI G185566
10	WCI 3018791
11	PANEL, INNER DOOR, FRZR
13A	SUPPORT-DOOR RACK, EXTENDS 1.06“, LH
13	SUPPORT-DOOR RACK, EXTENDS 1.06“, RH
15	RACK-DOOR, SHORT, NARROW, (2)
16A	TRIM-DAIRY DOOR (NON-ILLUSTRATED)
16	DOOR-DAIRY (INCLUDES TRIM)
17	WCI 3206217
19	WCI 3018792
20	RACK-DOOR, FULL-WIDTH, WIDE
21	PANEL, INNER DOOR, REFR
22	PANEL-REFR-WHITE
23A	CLIP
23B	WCI G000179271
23	WCI G000177143
24	RACK-DOOR, FULL-WIDTH, NARROW
25	WCI 3206189
26A	SUPPORT-DOOR RACK, LH
26	SUPPORT-DOOR RACK, RH
27	RACK-DOOR, MEDIUM-WIDTH, NARROW
28A	3206166 Frigidaire Refrigerator Freezer Door Shelf Retainer Bar Endcap Rack Support
28	3206165 Frigidaire Bar Endcap Right Hand
29	CAP
