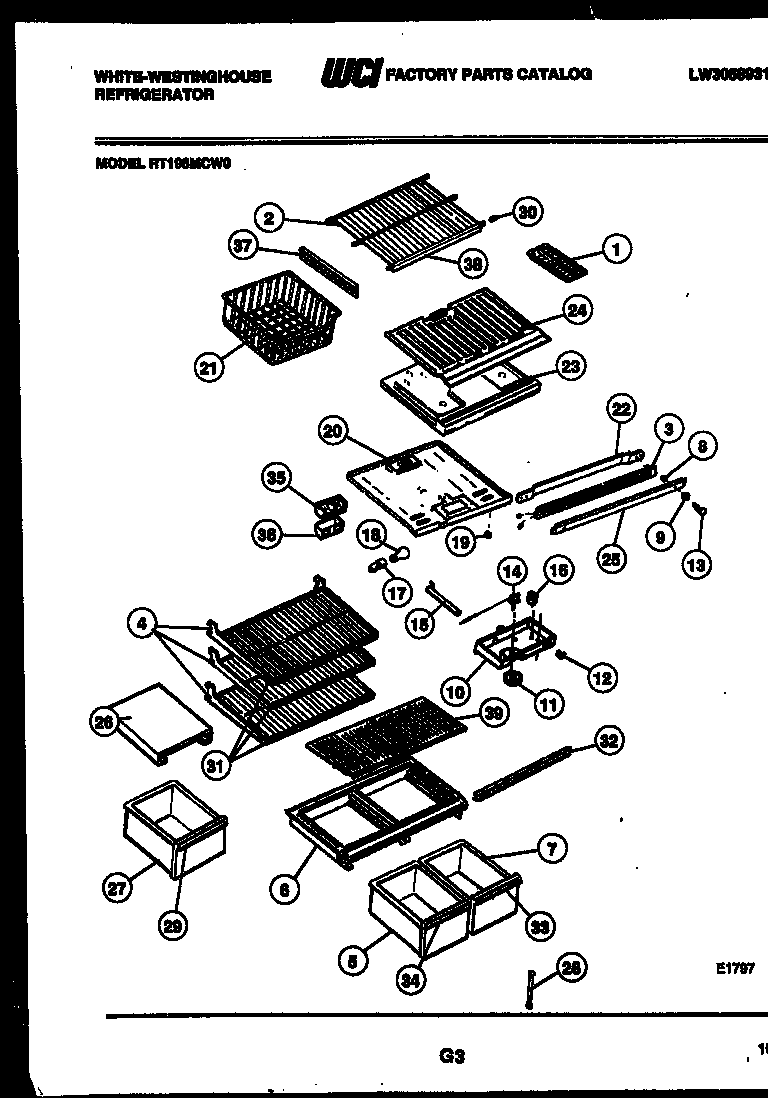

RT196MCW0 04 – SHELVES AND SUPPORTS

RT196MCW0 04 – SHELVES AND SUPPORTS

Written by

in

RT196MCW0 04 – SHELVES AND SUPPORTS

Products

PositionProduct
*24771WCI 08009824
*24771RACK – HANGING – EGG
*24771WCI 5303206525
*247715304455852 Frigidaire Refrigerator Screw
1TRAY-ICE (2)
2WCI 5303206608
2A5304509705 Frigidaire Refrigerator Grommet
2B5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
3WCI 3018916
4ACLIP, SHELF (8)
4WCI 3018981
5PAN – CRISPER – LH
6COVER – CRISPER
6AWCI 3200329
7WCI 5303206534
8SPACER (NON-ILLUSTRATED)
9WASHER (2)
10A5304455650 Frigidaire Refrigerator Screw
10WCI 3206130
11KNOB-TEMP CONTROL
12WCI 3206129
13WCI 08012258
14CONTROL-TEMPERATURE
14AWCI G107080
15WCI 3018891
16A5304455649 Frigidaire Refrigerator Screw
16215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
17218906802 Frigidaire Light Lamp Socket
18316538904 Frigidaire Oven Lamp Light
195309918806 Frigidaire Refrigerator Light Switch Door
20TOP – REFRIGERATOR
20ASCREW (5)
21BASKET-SLIDING, FULL-WIDTH, FRZR
22WCI 08010008
23B3205266 Frigidaire Refrigerator Edge Protector
23AWCI 3018900
23DIVIDER-FOAM
24BOTTOM PANEL-FREEZER
25WCI 3200366
26WCI 5303206773
27WCI 5303206542
28SUPPORT-ADJ CRISPER COVER
29WCI 5303206541
30END CAP-SHELF,PROTECTOR
31WCI 5303206891
32WCI 5303206540
33TRIM-CRISPER PAN-RH
34TRIM-CRISPER PAN-LH
35WCI 3204206
36WCI 3001546
37AHANGER-BASKET, LH (NON-ILLUSTRATED)
37WCI 5303206521
38TRIM-FRZR SHELF
39INSERT-CRISPER CVR, GLASS
