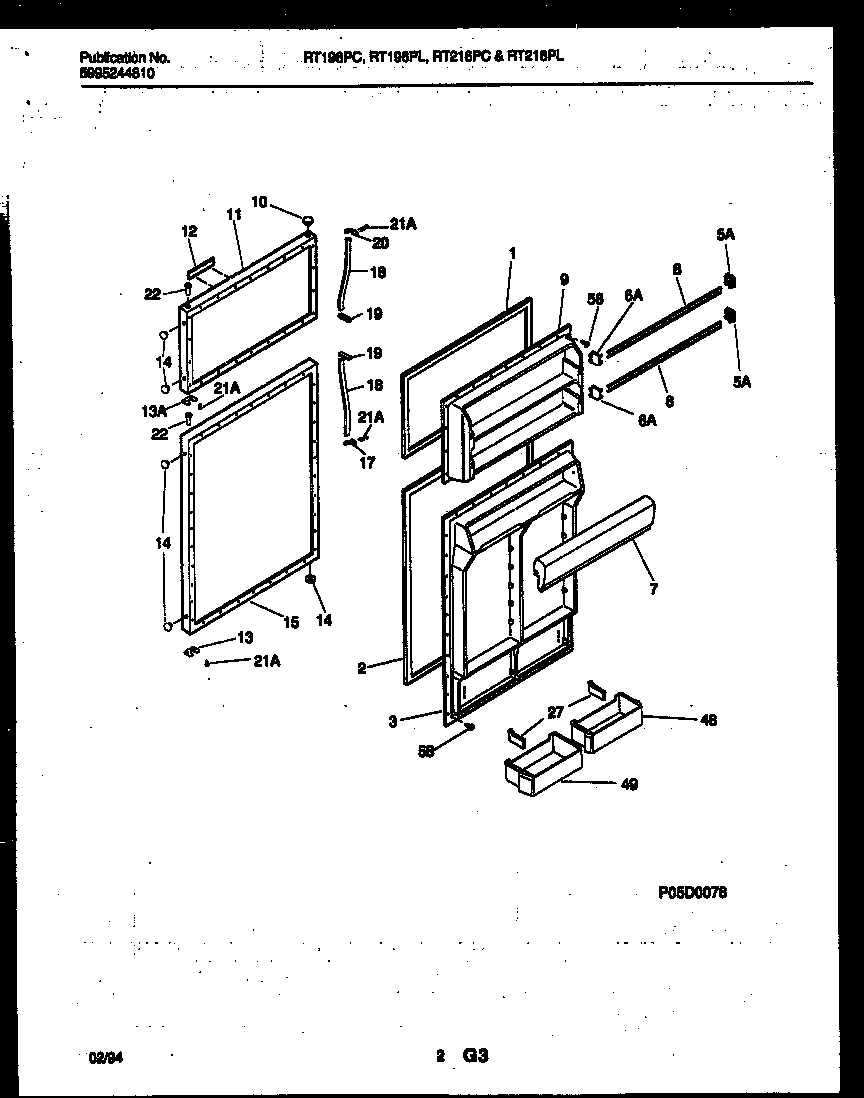

RT196PCW1 02 – DOOR PARTSadmin2025-04-26T10:22:12+00:00RT196PCW1 02 – DOOR PARTS
Products
| Position | Product |
|---|
| *85867 | INSULATION |
| 1 | WCI 5303276826 |
| 2 | WCI 5303275772 |
| 3 | WCI 5303276800 |
| 5A | 3206165 Frigidaire Bar Endcap Right Hand |
| 6A | 3206166 Frigidaire Refrigerator Freezer Door Shelf Retainer Bar Endcap Rack Support |
| 7 | WCI 215918400 |
| 7A | WCI 5303001380 |
| 8 | WCI 5303280192 |
| 9 | WCI 5303276748 |
| 10 | PLUG-BUTTON, ALMOND, HINGE BRG HOLE |
| 11 | WCI 5318984511 |
| 12A | WCI 5303280047 |
| 12 | WCI 5303279148 |
| 12B | TAPE, ADHESIVE, 60`` LG, FOAM, TRIM/NAMEPLATE, DOUBLE FAC |
| 13 | DOOR STOP, REFR SECTION |
| 13A | WCI 5308000255 |
| 14 | PLUG-BUTTON, ALMOND, HANDLE/DR STOP |
| 15A | WCI 215894100 |
| 15 | PANEL-REFR DOOR, ALMOND, W/INSUL & BRACE |
| 17 | HANDLE END |
| 18 | WCI 5303015111 |
| 18A | INSERT-HANDLE GRIP, ALMOND (NOT ILLUSTRATED) |
| 18B | WCI 5303279626 |
| 19 | WCI 215365000 |
| 20 | HANDLE END |
| 21A | WCI 5308011745 |
| 22 | BEARING-HINGE |
| 27A | WCI 5303279906 |
| 27 | WCI 5303275732 |
| 48 | WCI 5303279796 |
| 49 | WCI 5303279794 |
| 58 | 5304455651 Frigidaire Refrigerator Screw |
