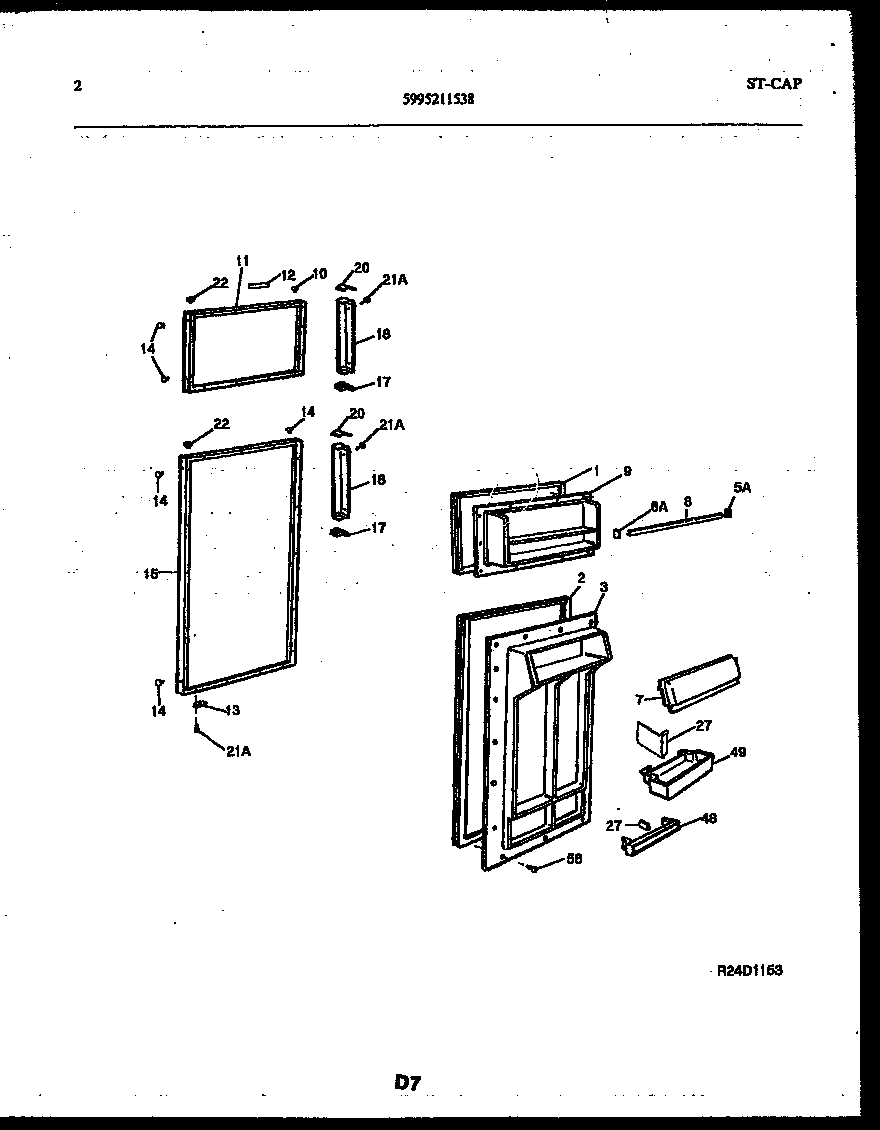

RT196PLD0 02 – DOOR PARTS

Products

Position	Product
*53563	INSULATION-BULK (NON-ILLUSTRATED)
1	WCI 5303276826
2	WCI 5303275772
3	WCI 5303276800
5A	3206165 Frigidaire Bar Endcap Right Hand
6A	3206166 Frigidaire Refrigerator Freezer Door Shelf Retainer Bar Endcap Rack Support
7	WCI 5303280063
8	WCI 5303280192
9	WCI 5303276748
10	PLUG-BUTTON, ALMOND, HINGE BRG HOLE
11	WCI 5318984511
12	WCI 5303279148
12A	WCI 5303280047
13A	WCI 5308000255
13	DOOR STOP, REFR SECTION
14	PLUG-BUTTON, ALMOND, HANDLE/DR STOP
15	WCI 5303917034
15A	WCI 5303275660
17	HANDLE, END-BOTTOM
18A	INSERT-HANDLE GRIP, ALMOND (NOT ILLUSTRATED)
18	WCI 5303015111
19	WCI 5318945301
20	HANDLE END-TOP
21A	WCI 5308011745
22	BEARING-HINGE
27	WCI 5303279906
27	WCI 5303275732
48	WCI 5303279796
49	WCI 5303279794
58	5304455651 Frigidaire Refrigerator Screw
