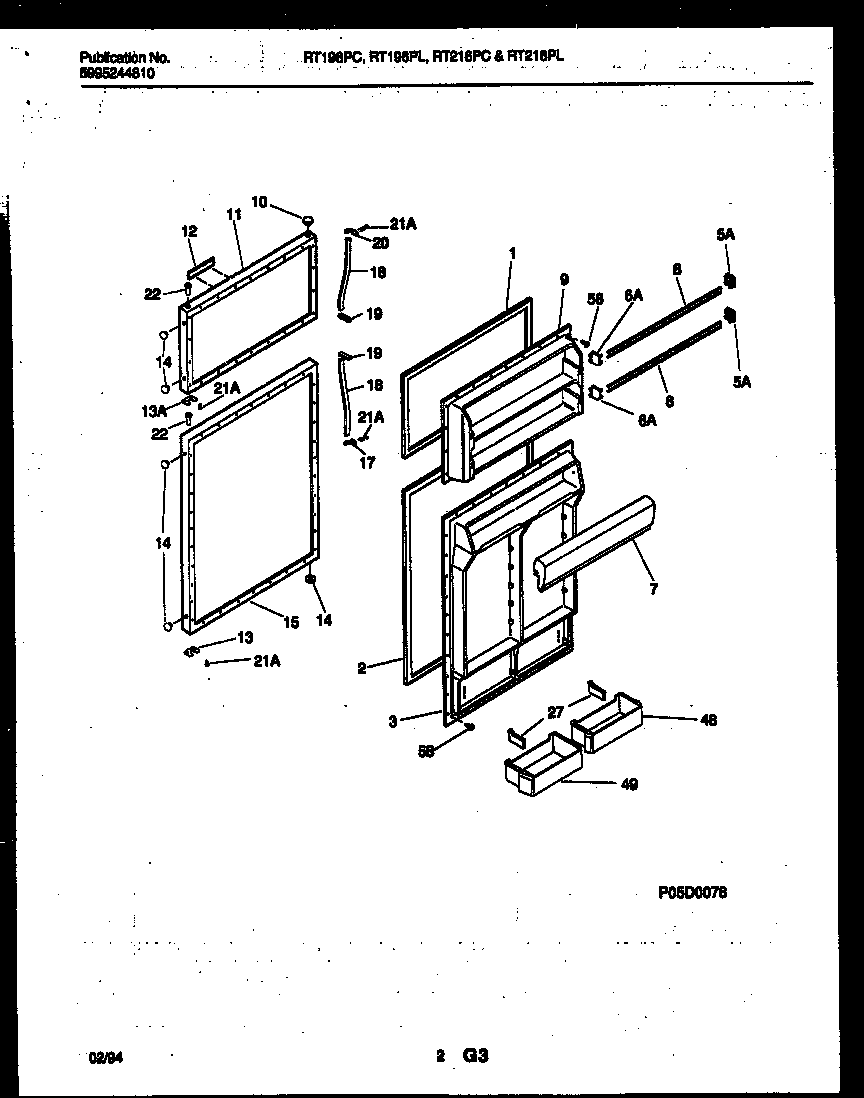

RT196PLW1 02 – DOOR PARTS

RT196PLW1 02 – DOOR PARTS

Written by

in

RT196PLW1 02 – DOOR PARTS

Products

PositionProduct
*85867INSULATION
1WCI 5303018791
2WCI 5303018792
3WCI 5303276800
5A3206165 Frigidaire Bar Endcap Right Hand
6A3206166 Frigidaire Refrigerator Freezer Door Shelf Retainer Bar Endcap Rack Support
7WCI 215918400
7AWCI 5303001380
8WCI 5303280192
9WCI 5303276748
10PLUG-BUTTON, WHITE, HINGE BRG HOLE
11WCI 5303916868
12WCI 5303279148
12AWCI 5303280047
12BTAPE, ADHESIVE, 60“ LG, FOAM, TRIM/NAMEPLATE, DOUBLE FAC
13DOOR STOP, REFR SECTION
13AWCI 5308000255
14240494001 Frigidaire Refrigerator Plug Button
15AWCI 215894100
15PANEL-REFR DOOR, WHITE, W/INSUL & BRACE
17HANDLE END
18BWCI 5303279626
18WCI 5303015111
18AINSERT-HANDLE GRIP, ALMOND (NOT ILLUSTRATED)
19WCI 215365000
20HANDLE END
21AWCI 5308011745
22BEARING-HINGE
27WCI 5303275732
27AWCI 5303279906
48WCI 5303279796
49WCI 5303279794
585304455651 Frigidaire Refrigerator Screw
