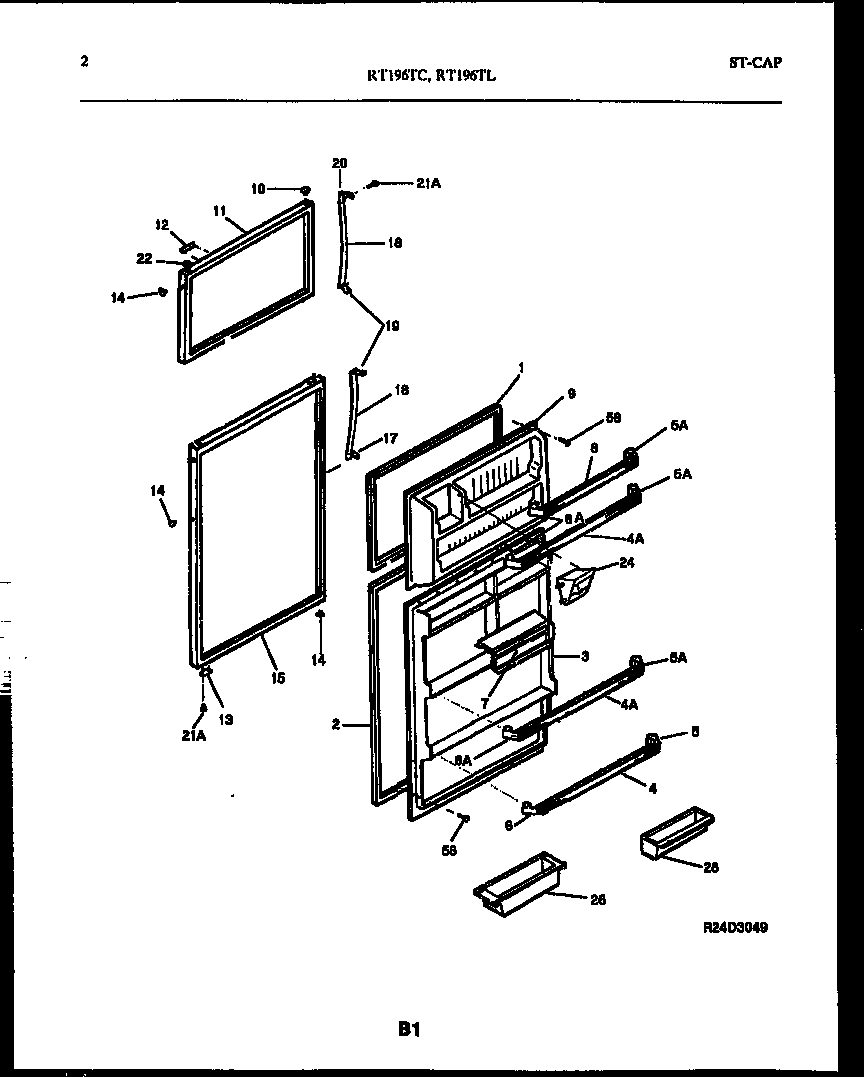

RT196TLD0 02 – DOOR PARTSadmin2025-04-26T10:20:57+00:00RT196TLD0 02 – DOOR PARTS
Products
| Position | Product |
|---|
| *70951 | INSULATION-BULK (NON-ILLUSTRATED) |
| 1 | WCI 5303280062 |
| 2 | WCI 5303275772 |
| 3 | WCI 215130001 |
| 4A | WCI 215139807 |
| 4 | RACK-DOOR, FULL-WIDTH, WIDE |
| 5A | WCI 5317828701 |
| 5 | SUPPORT-DOOR RACK, EXTENDS 1.06``, RH |
| 6 | SUPPORT-DOOR RACK, EXTENDS 1.06``, LH |
| 6A | WCI 5317828401 |
| 7 | WCI 5303293491 |
| 8 | WCI 215139810 |
| 9 | WCI 3202033 |
| 10 | PLUG-BUTTON, ALMOND, HINGE BRG HOLE |
| 11 | WCI 5318984511 |
| 12 | WCI 5303279148 |
| 13A | WCI 5308000255 |
| 13 | DOOR STOP, REFR SECTION |
| 14 | PLUG-BUTTON, ALMOND, HANDLE/DR STOP |
| 15 | PANEL-REFR DOOR, ALMOND, W/INSUL & BRACE |
| 17 | HANDLE END |
| 18A | INSERT-HANDLE GRIP, ALMOND (NOT ILLUSTRATED) |
| 18 | WCI 5303015111 |
| 19 | WCI 215365000 |
| 20 | HANDLE END |
| 21A | WCI 5308011745 |
| 22 | BEARING-HINGE |
| 24 | WCI 3203047 |
| 26 | WCI 3204522 |
| 28 | WCI 5303285974 |
| 58 | 5304455651 Frigidaire Refrigerator Screw |
