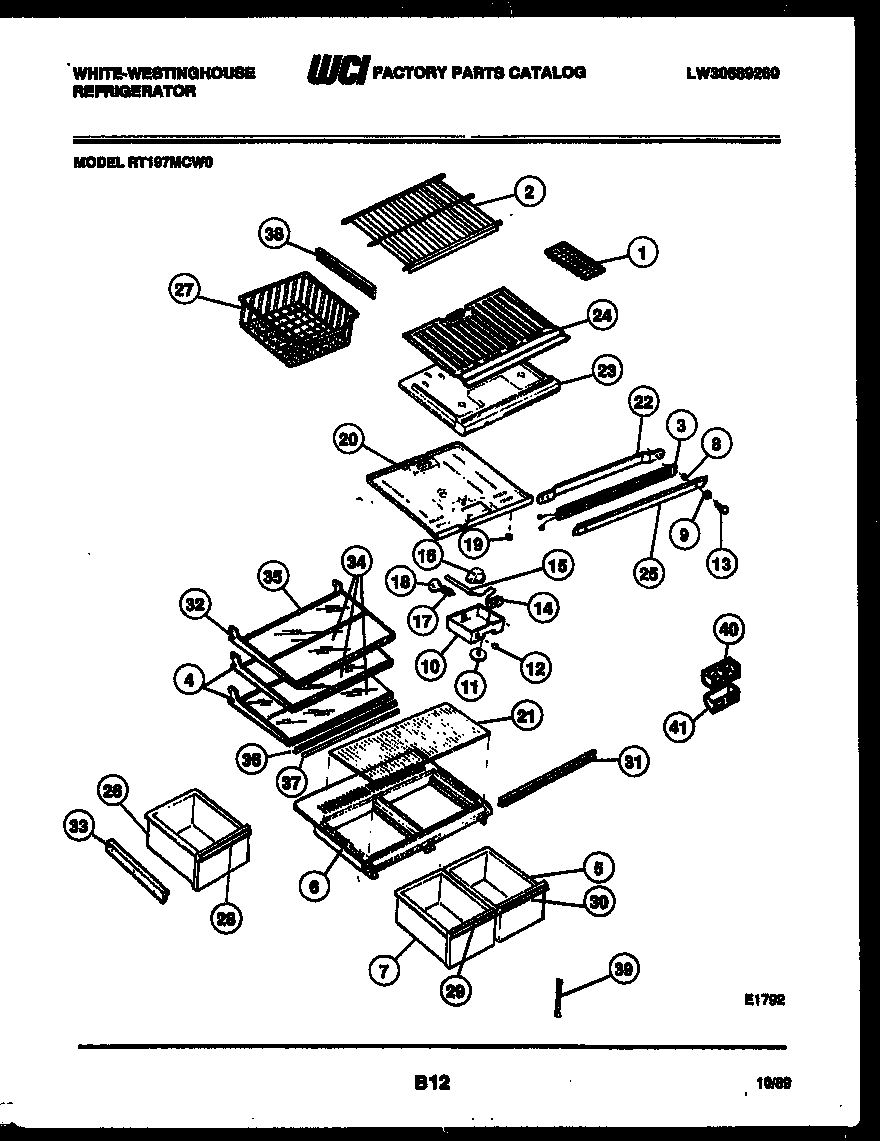

RT197MCD0 04 – SHELVES AND SUPPORTS

RT197MCD0 04 – SHELVES AND SUPPORTS

Written by

in

RT197MCD0 04 – SHELVES AND SUPPORTS

Products

PositionProduct
*23427WCI 5303206525
*23428RACK – HANGING – EGG
*23428WCI G186095-01
*23427CLIP, SHELF (8)
1215667501 Frigidaire Refrigerator Ice Tray Primary
2WCI 5303206608
2BTRIM-FRZR SHELF
2AEND CAP-SHELF,PROTECTOR
2C5304509705 Frigidaire Refrigerator Grommet
2D5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
3WCI 3018916
4FRAME-FULL SHELF, CANTILEVER, (2)
5WCI 5303206534
6COVER – CRISPER
6AWCI 3200329
7PAN – CRISPER – LH
8SPACER (NON-ILLUSTRATED)
9WASHER (2)
10WCI 3206130
10A5304455650 Frigidaire Refrigerator Screw
11KNOB-TEMP CONTROL
12WCI 3206129
13WCI 08012258
14CONTROL-TEMPERATURE
14AWCI G107080
15WCI 3018891
16215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
16A5304455649 Frigidaire Refrigerator Screw
17218906802 Frigidaire Light Lamp Socket
18316538904 Frigidaire Oven Lamp Light
195309918806 Frigidaire Refrigerator Light Switch Door
20TOP – REFRIGERATOR
20ASCREW (5)
21INSERT-CRISPER CVR, GLASS
22WCI 08010008
23B3205266 Frigidaire Refrigerator Edge Protector
23DIVIDER-FOAM
23AWCI 3018900
24BOTTOM PANEL-FREEZER
25WCI 3200370
26WCI 5303206542
27BASKET-SLIDING, FULL-WIDTH, FRZR
28WCI 5303206541
29TRIM-CRISPER PAN-LH
30TRIM-CRISPER PAN-RH
31WCI 5303206540
32FRAME-MEAT KPR SHLF, CANTILEVER
33AWCI 3018890
33HANGER-LH (NON-ILLUSTRATED)
33BWCI 08014528
34SHELF-GLASS, FULL SHELF, (3)
34ARAIL-GLASS SUPT (2) (NON-ILLUSTRATED)
35WCI 5303206611
36WCI 3200321
36ARETAINER-GLASS, MEAT KPR SHELF (NON-ILLUSTRATED)
37WCI 5303206613
38AHANGER-BASKET, LH (NON-ILLUSTRATED)
38WCI 5303206521
39SUPPORT-ADJ CRISPER COVER
40WCI 3204206
41WCI G162178
