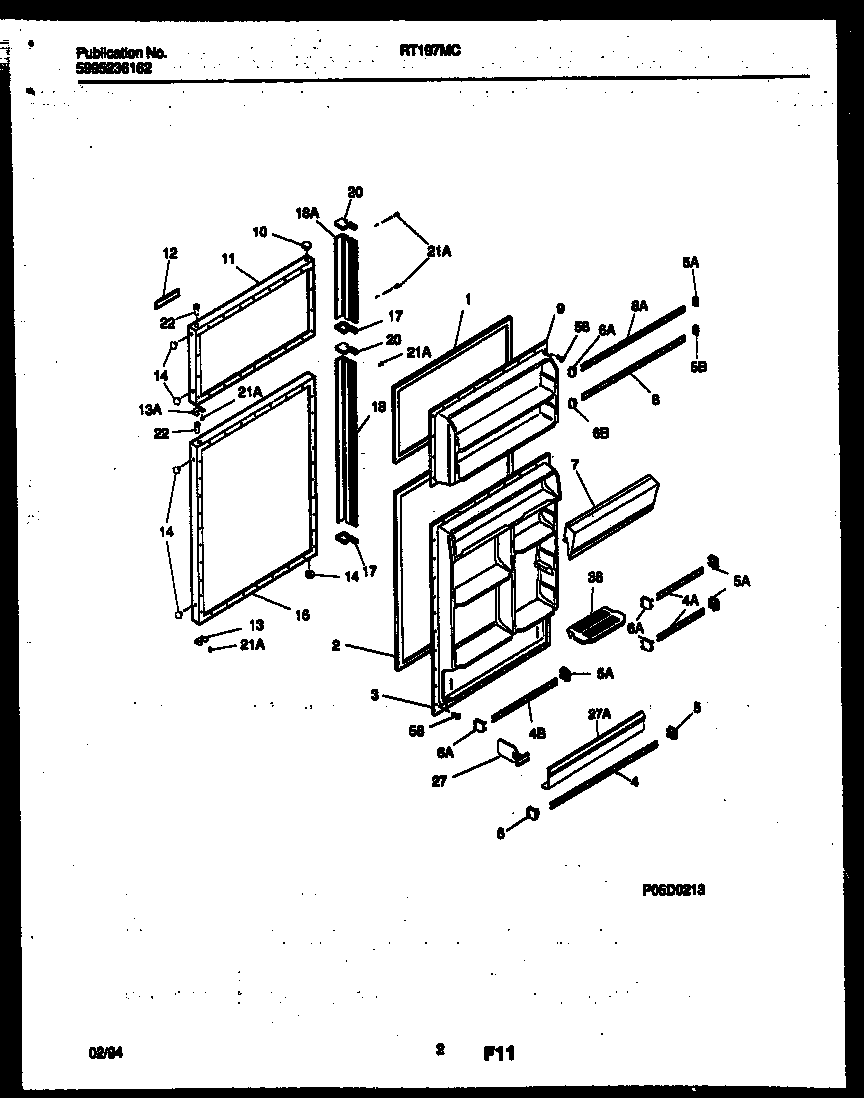

RT197MCD2 02 – DOOR PARTS

RT197MCD2 02 – DOOR PARTS

Written by

in

RT197MCD2 02 – DOOR PARTS

Products

PositionProduct
*90150INSULATION
1WCI 5303018791
2WCI 5303018792
3PANEL, INNER DOOR, REFR
4ARACK-DOOR, SHORT, NARROW, (2)
4BRACK-DOOR, MEDIUM-WIDTH, NARROW
5SUPPORT-DOOR RACK, RH
5A3206165 Frigidaire Bar Endcap Right Hand
5BSUPPORT-DOOR RACK, EXTENDS 1.06“, RH
6SUPPORT-DOOR RACK, LH
6BSUPPORT-DOOR RACK, EXTENDS 1.06“, LH
6A3206166 Frigidaire Refrigerator Freezer Door Shelf Retainer Bar Endcap Rack Support
7DOOR-DAIRY (INCLUDES TRIM)
8ARACK-DOOR, FULL-WIDTH, NARROW
8RACK-DOOR, FULL-WIDTH, WIDE
9PANEL, INNER DOOR, FRZR
10PLUG-BUTTON, ALMOND, HINGE BRG HOLE
11WCI 5303916056
12WCI 3206159
13DOOR STOP, REFR SECTION
13AWCI 5308000255
14PLUG-BUTTON, ALMOND, HANDLE/DR STOP
15PANEL-REFR DOOR, ALMOND
17WCI 5300177143
17AWCI 5300179271
18HANDLE-DOOR, 44“ LONG, W/ END CAPS
18BWCI 5300177144
18AWCI 5303277266
20AWCI 5300179270
20WCI 5300177142
21AWCI 5308011745
22BEARING-HINGE
27AWCI 3206307
27WCI 5303206514
36WCI 3206189
585304455651 Frigidaire Refrigerator Screw
