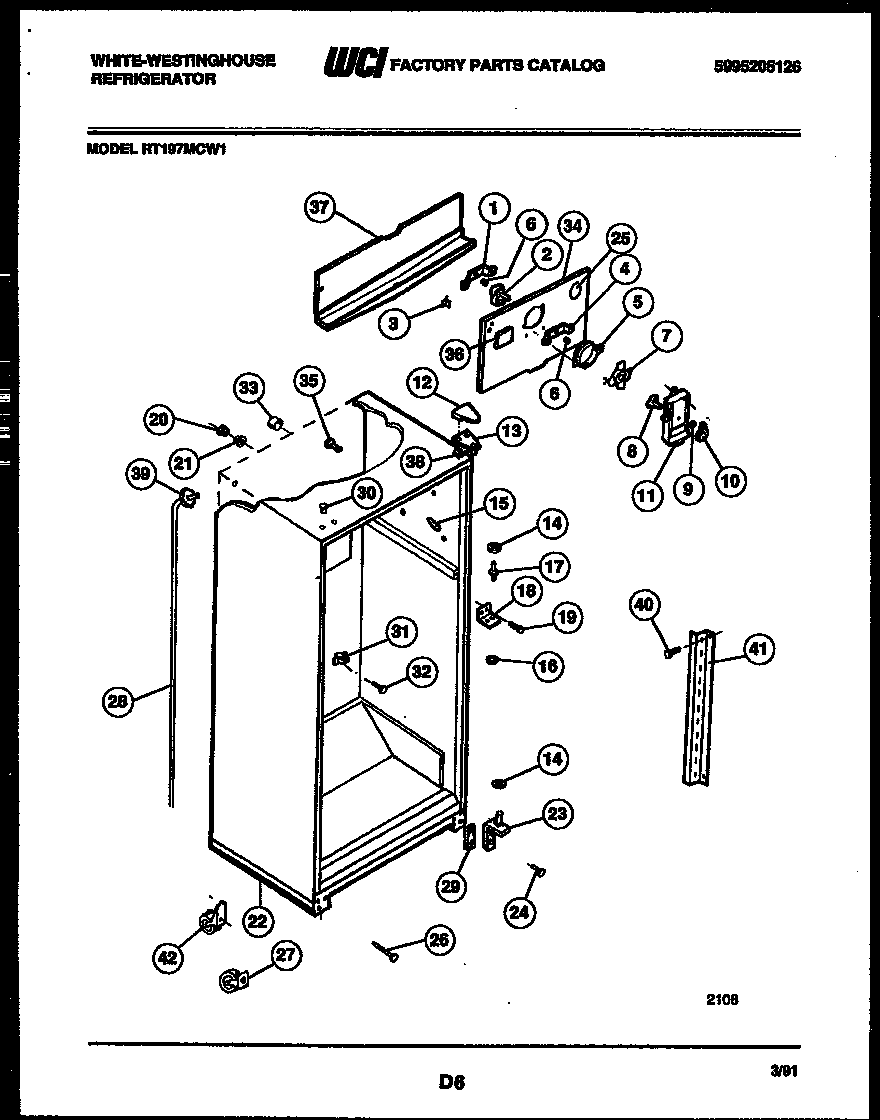

RT197MCF1 03 – CABINET PARTS

Products

Position	Product
*42844	5304509705 Frigidaire Refrigerator Grommet
*42844	TAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
*42844	BOLT-ROLLER MTG, HEX WASHER HEAD, 1/4-28 X 1/2, (2)
*42844	5304455651 Frigidaire Refrigerator Screw
*42844	PLUG, BUTTON, CABINET LINER (NI)
*42844	5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
1	BRACKET-MOTOR MTG, REAR
2	5300158289 Frigidaire Evaporator Fan Motor
3	WCI 5308000107
4	WCI 5303205118
5	RING-FAN ORIFICE
6	G187559 Frigidaire Refrigerator Bushing
7	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
8	DAMPER-FAN COVER
9	Nut,push-on
10	WCI 3206381
11	WCI 3206318
11B	LABEL - FAN COVER (NON-ILLUSTRATED)
12	WCI 5303001666
13	BRACKET-UPPER HINGE
14	WASHER, .34 X .62 X .05, NYLON
15	WCI 5303202339
16	WCI 5308000186
17	WCI 5308000184
18	BRACKET-CTR HINGE
19	WCI 5308012258
20	WCI 5303001287
21	WCI 5303001286
22	WCI 5303212487
23	BRACKET-LOWER HINGE, W/ HINGE PIN
23A	TAPPING PLATE, GUSSET, RH (NOT ILLUSTRATED)
23B	TAPPING PLATE, GUSSET, LH (NOT ILLUSTRATED)
24	241710601 Frigidaire Refrigerator Screw
25	5303208309 Frigidaire Refrigerator Plug Hole
26	BOLT-ROLLER ADJ, HEX HD, 1/4-28 X 2.750
27	WCI 5303212490
28	WCI 5303210377
29	WCI 5303212488
30	PLUG, COFFEE
30	PLUG-BUTTON, ALMOND, UPR HINGE HOLES
31	WCI 5308000056
32	WCI 5303001361
33	TUBE-RUBBER
34B	5304455650 Frigidaire Refrigerator Screw
34A	NUT, ``U`` TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
34	WCI 5308009771
35	SUPPORT-COIL COVER
36	PLUG-DECORATIVE, ICE MAKER HOLE
37	WCI 5303001470
38	SHIM - UPPER HINGE
39	WCI 5303207353
40	5304455852 Frigidaire Refrigerator Screw
41	CHANNEL, RH & LH
42	WCI 5308009773
