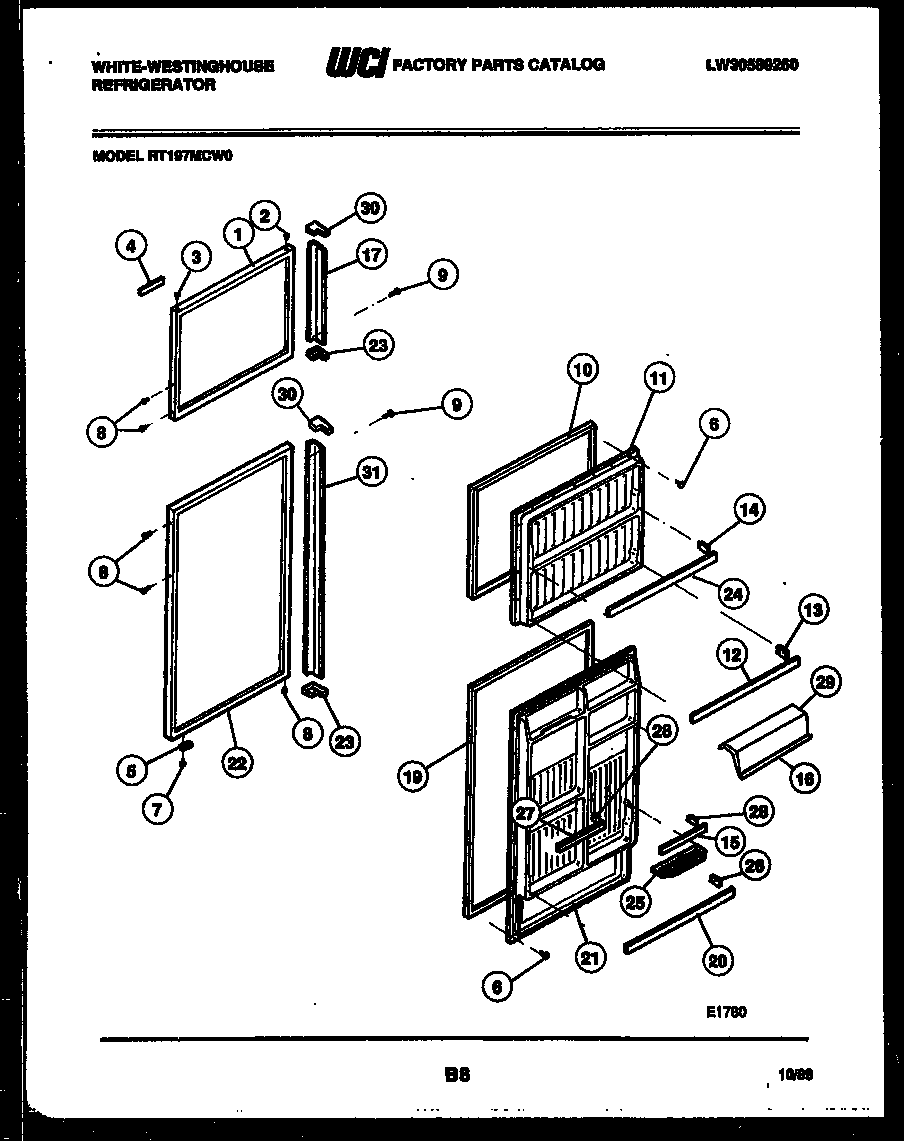

RT197MCH0 02 – DOOR PARTS

Products

Position	Product
*23414	WCI 5303206514
*23414	WCI 3206307
*23414	INSULATION-BULK
1	WCI G183468-09
2	WCI G169332-09
3	WCI 08012007
4	WCI 3206159
5	DOOR STOP (2)
6	5304455651 Frigidaire Refrigerator Screw
8	WCI G162977-09
9	WCI G185566
10	WCI 3018791
11	PANEL, INNER DOOR, FRZR
13	SUPPORT-DOOR RACK, EXTENDS 1.06“, RH
13A	SUPPORT-DOOR RACK, EXTENDS 1.06“, LH
15	RACK-DOOR, SHORT, NARROW, (2)
16	TRIM-DAIRY DOOR (NON-ILLUSTRATED)
17	WCI 3206217
19	WCI G186803-13
20	RACK-DOOR, FULL-WIDTH, WIDE
21	PANEL, INNER DOOR, REFR
22	WCI G187356-09
23	CAP
23B	TRIM, BTM
24	RACK-DOOR, FULL-WIDTH, NARROW
25	WCI 3206189
26A	SUPPORT-DOOR RACK, LH
26	SUPPORT-DOOR RACK, RH
27	RACK-DOOR, MEDIUM-WIDTH, NARROW
28	3206165 Frigidaire Bar Endcap Right Hand
28A	3206166 Frigidaire Refrigerator Freezer Door Shelf Retainer Bar Endcap Rack Support
29	WCI 5303206519
30B	TRIM, TOP
30A	CLIP
30	CAP
31	HANDLE-REF
