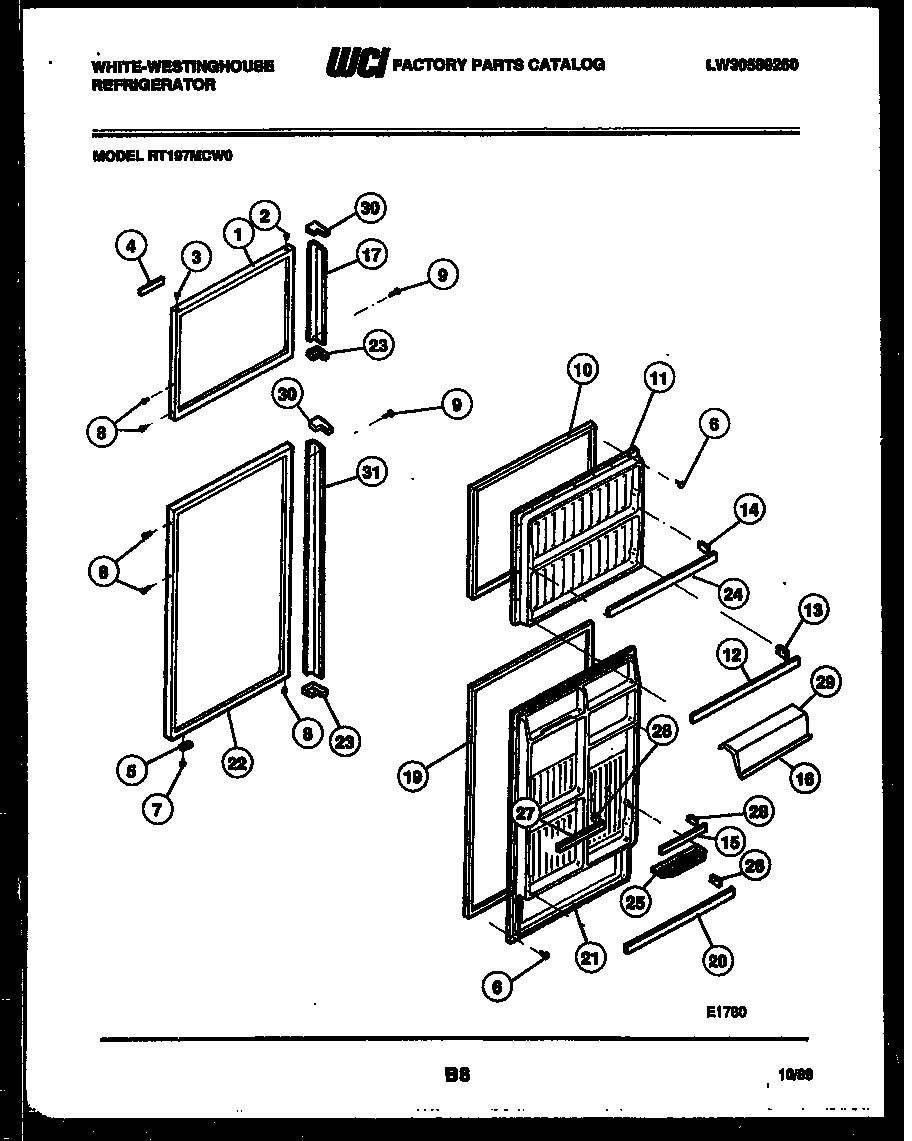

RT197MCV0 02 – DOOR PARTSadmin2025-04-26T10:24:15+00:00RT197MCV0 02 – DOOR PARTS
Products
| Position | Product |
|---|
| *23414 | WCI 5303206514 |
| *23414 | WCI 3206307 |
| *23414 | INSULATION-BULK |
| 1 | WCI G183468-08 |
| 2 | WCI G169332-08 |
| 3 | WCI 08012007 |
| 4 | WCI 3206159 |
| 5 | DOOR STOP (2) |
| 6 | 5304455651 Frigidaire Refrigerator Screw |
| 8 | WCI G162977-08 |
| 9 | WCI G185566 |
| 10 | WCI 3018791 |
| 11 | PANEL, INNER DOOR, FRZR |
| 13 | SUPPORT-DOOR RACK, EXTENDS 1.06``, RH |
| 13A | SUPPORT-DOOR RACK, EXTENDS 1.06``, LH |
| 15 | RACK-DOOR, SHORT, NARROW, (2) |
| 16 | TRIM-DAIRY DOOR (NON-ILLUSTRATED) |
| 17 | WCI 3206217 |
| 19 | WCI G186803-13 |
| 20 | RACK-DOOR, FULL-WIDTH, WIDE |
| 21 | PANEL, INNER DOOR, REFR |
| 22 | WCI G187356-08 |
| 23 | CAP |
| 23B | TRIM, BTM |
| 24 | RACK-DOOR, FULL-WIDTH, NARROW |
| 25 | WCI 3206189 |
| 26A | SUPPORT-DOOR RACK, LH |
| 26 | SUPPORT-DOOR RACK, RH |
| 27 | RACK-DOOR, MEDIUM-WIDTH, NARROW |
| 28 | 3206165 Frigidaire Bar Endcap Right Hand |
| 28A | 3206166 Frigidaire Refrigerator Freezer Door Shelf Retainer Bar Endcap Rack Support |
| 29 | WCI 5303206519 |
| 30B | TRIM, TOP |
| 30A | CLIP |
| 30 | CAP |
| 31 | HANDLE-REF |
