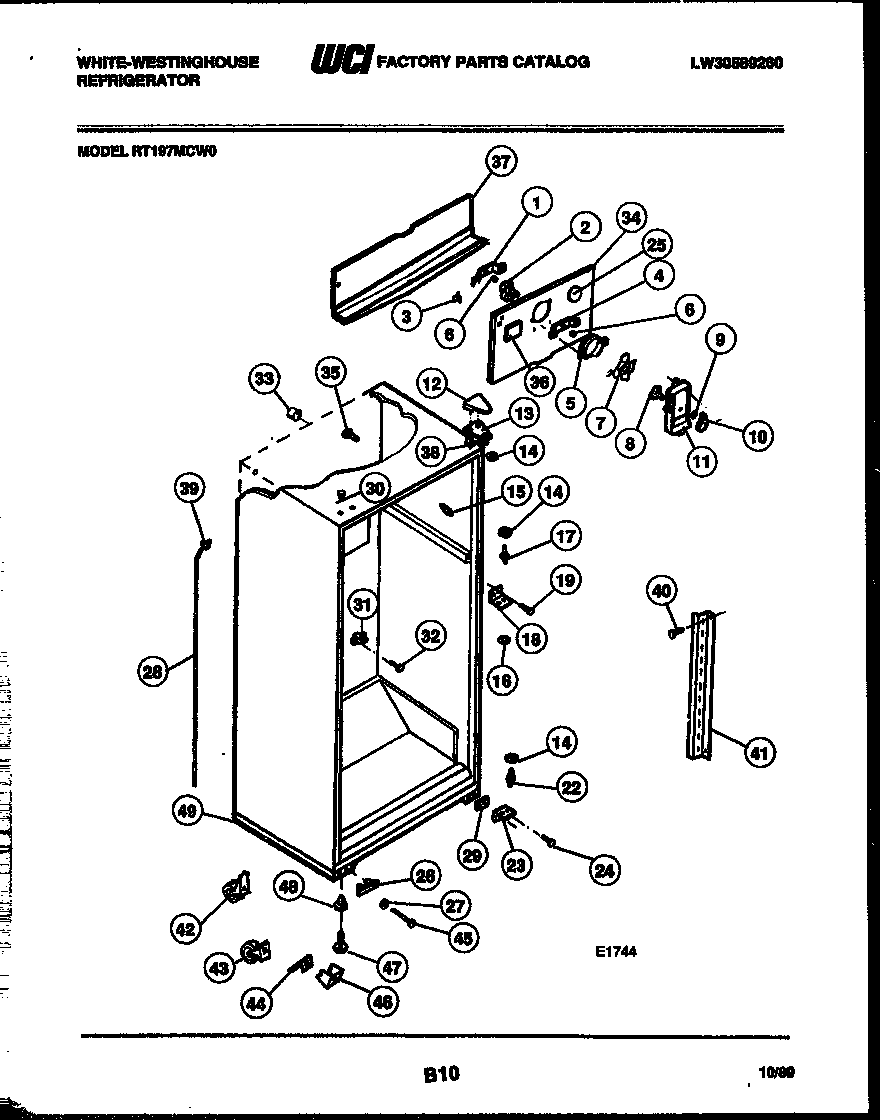

RT197MCV0 03 – CABINET PARTS

Products

Position	Product
*23422	WCI G173734
*23422	BUTTON, LINER
*23422	5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
*23422	WCI G174733
*23422	5304509705 Frigidaire Refrigerator Grommet
*23422	TAPPING PLATE (2)
1	WCI 3205119
2	5300158289 Frigidaire Evaporator Fan Motor
3	WCI G164571
4	WCI 3205118
5A	218843801 Frigidaire Refrigerator Screw
5	RING, FAN ORIFICE
6	G187559 Frigidaire Refrigerator Bushing
7	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
8	WCI 3001331
9	NUT, DAMPER MOUNTING
10	WCI 3206381
11B	LABEL – FAN COVER (NON-ILLUSTRATED)
11	WCI 3206318
12	COVER HINGE-AVOCADO
13	WCI 08012843
14	WCI G103903
15	CORNER TRIM-AVOCADO
16	WCI 3001038
17	WCI G142220
18	BRACKET, HINGE CENTER
19	WCI 08012258
22	5303001321 Frigidaire Refrigerator Lower Hinge Pin
23	HINGE-BRACKET-BOTTOM
24	241710601 Frigidaire Refrigerator Screw
25	PLUG-SHORT TEST HOLE (NON-ILLUSTRATED)
26	WCI 3001478
27	WCI 08011326
28	WCI 3001458
29	SHIM-BOTTOM HINGE
30	WCI G174747-08
31	WCI 08000056
32	PIN-PUSH
33	TUBE, INSULATION (2)
34A	NUT, ORIFICE (2)
34B	5304455650 Frigidaire Refrigerator Screw
34	WCI 08009771
35	WCI G163669
36	WCI 3018193
37	DRAIN TROUGH
38	WCI G183861
39	RING, SEAL (NON-ILLUSTRATED)
40	5304455852 Frigidaire Refrigerator Screw
41	WCI 08000302
42A	5304455651 Frigidaire Refrigerator Screw
42A	WCI 08009762
42	WCI 08009773
43	WCI 08009760
44	WCI 08009790
45	WCI 08009761
46	WCI 08013678
47	SCREW-LEVELING (4)
48	WCI 08003584
49	WCI 08010092
